FEMCO HL-35 CNC Lathe

Description

Slant Bed CNC Lathe
OEM: FEMCO, Inc. (Chiayi, Taiwan)
Model: HL-35
DOM: 11 / 2004
Electrics: 230 Volt, 3 Phase, 60 Cycle
Main Motor: 25HP
Machine Hours (1/6/2025):
…Power On: 32,417
…Operating Time: 177
…Cutting Time: 6,167

Features and Specifications:
…CNC Control: Fanuc Series 18-T
…Swing Over Bed: 19.69"
…Max. Turning Diameter: 14.17"
…Distance Between Centers: 30"
…Spindle Speed: 4,000 RPM
…Travels:
.....X-Axis: 9.1”
.....Z-Axis: 26.59”
…Rapid Traverse:
.....X-Axis: 472 IPM
.....Z-Axis: 591 IPM

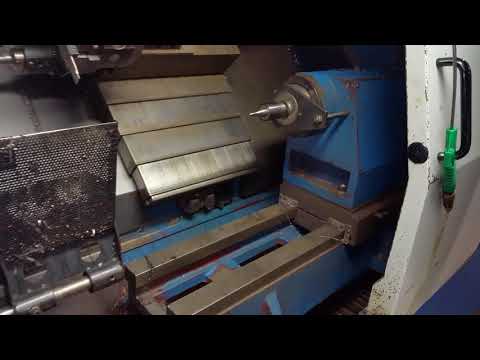

…Tailstock:
……Taper: MT#5
……Body Travel: 14.3”
……Quill Stroke: 4.72”
…Bar Capacity: 3"
…Turret: 12 Positions
…Programmable Tailstock
…Parts Catcher
…Chip Conveyor
…Auto Tool Presetter
…C-Axis Live Tooling
…Coolant System
Tooling:
…Axial and Radial ER-32 Heads (2 Each)
……VDI Type Shanks

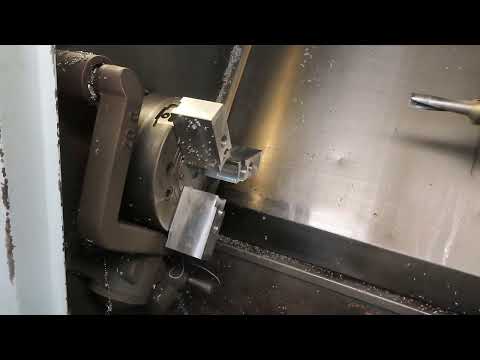

…10" Hydraulic Chuck
…Round & Stick Toolholders

Machine Dimensions (approx.): 150” x 68” x 80” w/ Conveyor
Machine Weight (approx.): 15,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes and History:

This machine is a good runner for my customer. They have taken good care of this unit; have replaced parts as necessary part of preventative maintenance. Major work included rebuilding the turret and its bearing assembly due to wear. Have never replaced the spindle bearing assembly.

Comes with hydraulic chuck, ER-32 heads, and toolholders. Pictures are imbedded of the tooling that comes with machine.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Mid-Willamette Valley, OR

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading onto transportation.
MDES can provide rigging and loading quotation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
