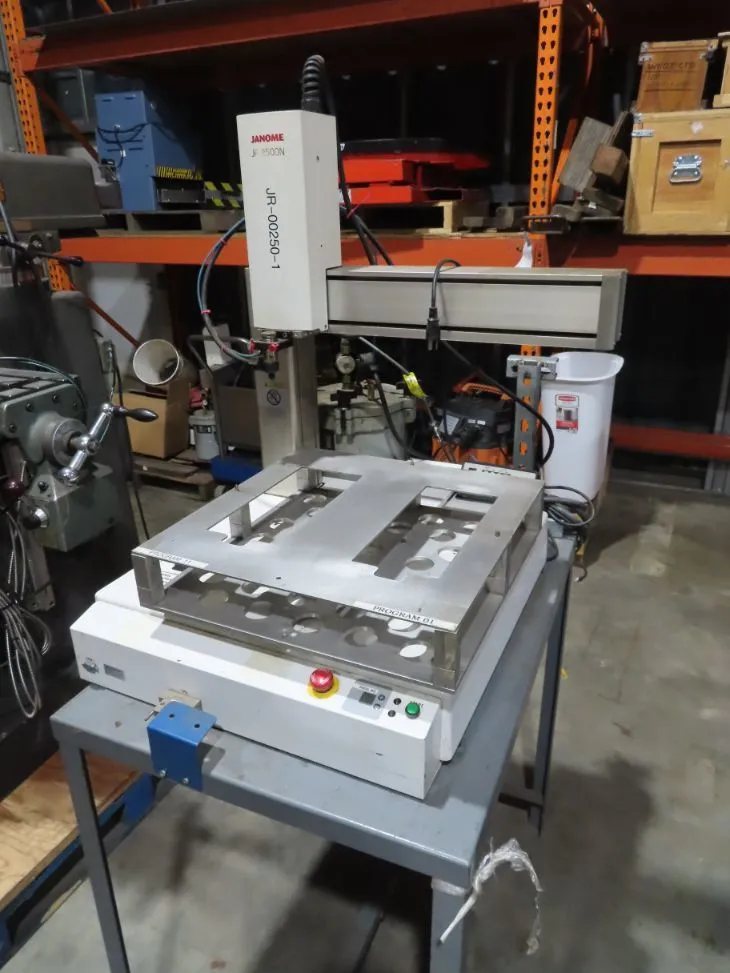

Janome JR 2503N 3-Axis Dispensing Robot

Description

Dispensing Robots
Manufacturer: Janome (Made in Japan)
Model: JR 2503N
Electrics: 90-132-250 Volt / 50-60 Cycle / 1 Phase / 200 Watt
Quantity: Two (2) Machines Available for Purchase

Features and Specifications:
…Travels:
……X – 20.0787”
……Y – 20.0787
……Z – 5.9055
…Maximum Speed
……8-800 mm/sec (X,Y)
……3.2-320 mm/sec (Z)
…Portable Load:
……24.25 lbs. for Workpiece
……13.23 lbs. for Tool
…Repeatability: +/- .008 mm
…Easy Program Teaching
…High Rigidity
…High Precision
…Labyrinth Mechanism
…Applications: Screw Tightening, Dispensing, Soldering
…RS232C Connections

Machine Dimensions (approx.): 32” x 32” x 36”
Machine Weight (approx.): 95 lbs.

Product Brochure Link: http://eprocent.com/pdf/set/SET-Dispensing-Robots.pdf

Functionality and History Notes:

Asking price is based on limited knowledge of condition, age, and capabilities. We are open to offers. Serial No. of one (1) machine is known and available for serious inquiry. ALL specifications for this model taken off specification sheets and descriptions found through product research.

OWNER READY TO MOVE!
CALL FOR DETAILS! OPEN TO OFFERS!

EQUIPMENT LOCATION: Salem, OR

Machine is currently NOT connected to power; available for inspection.
Buyer responsible for freight logistics and expenses.
Seller will load onto Buyer's transportation.

Contact MD Equipment Services LLC to schedule inspection, pickup, or purchase.
