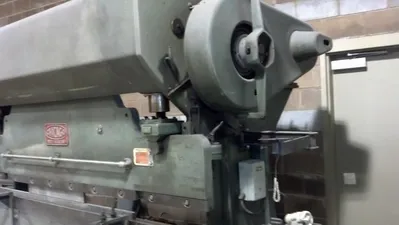

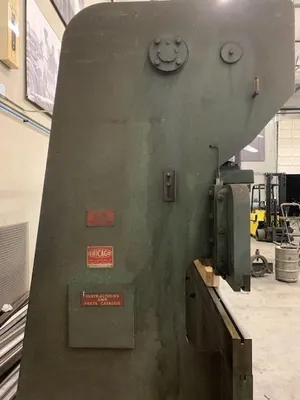

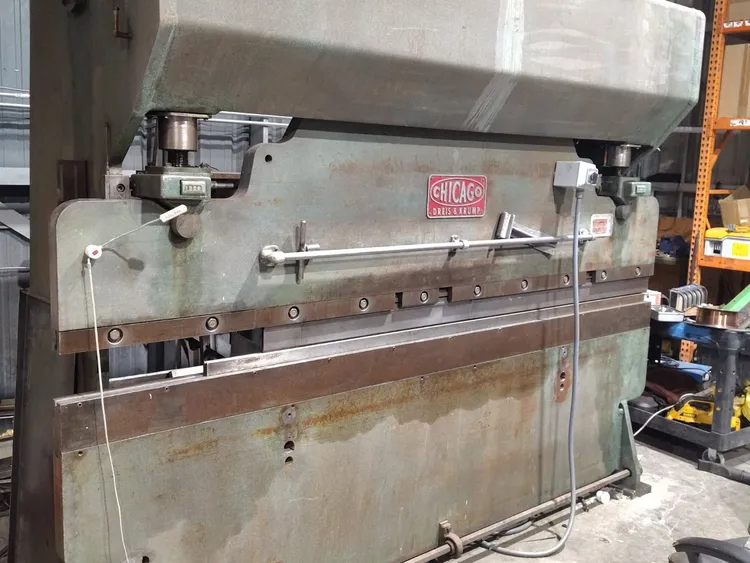

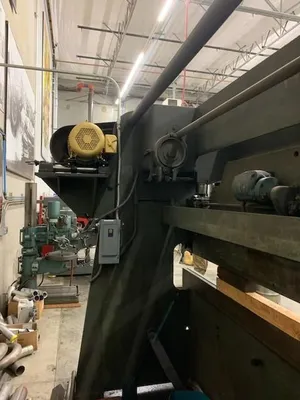

Chicago Dreis & Krump Brake Press

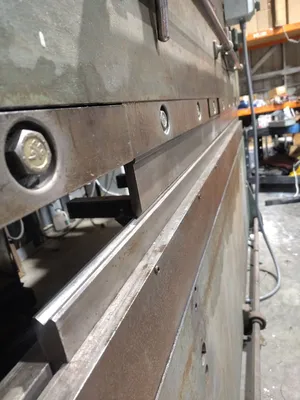

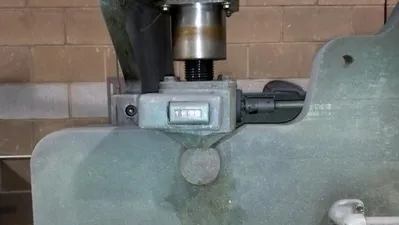

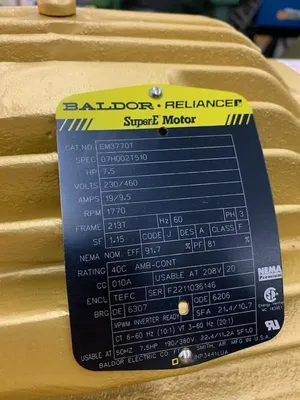

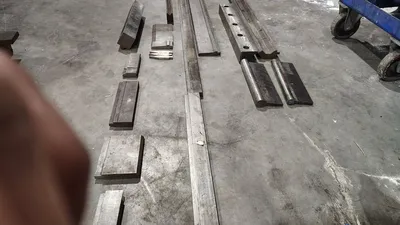

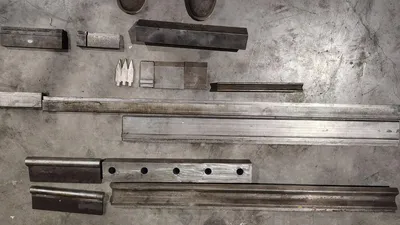

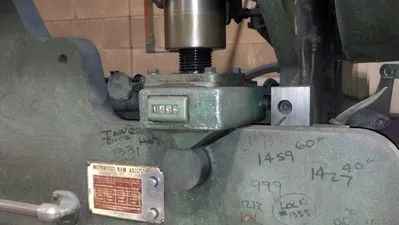

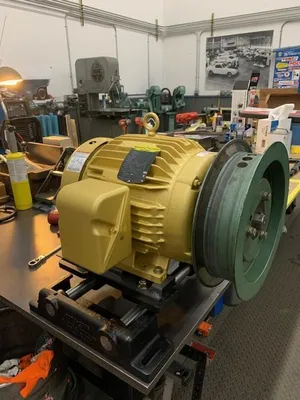

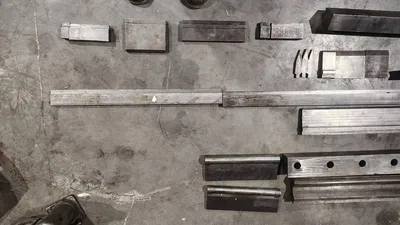

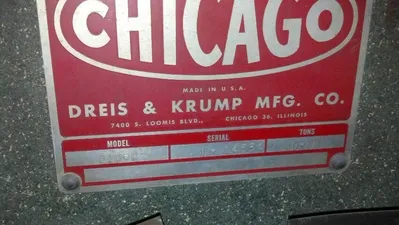

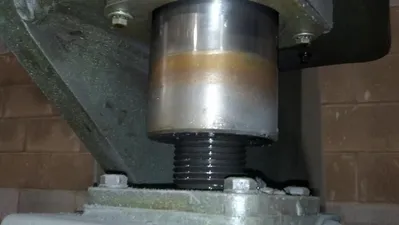

Brake Press Manufacturer: Dreis & Krump Manufacturing Company Model: Chicago 810-C Serial No.: L-14554 Date of Manufacture: 1963 Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 9.5-19 Amps Main Motor: 7.5 HP, 1770 RPM Features and Specifications: ...Capacity: .....75-Ton Near Bottom .....50-Ton Mid-Stroke ...Distance Between Columns: 102" ...Bend Length: 120" (open ended) ...Stroke: 3" ...Ram Adjustment: 4" ...Die Space (Stroke Down, Adjust Up): 12" ...Strokes per Minute: 40 ...Ram Adjustment Each End ...No Back Gauge or Support Arms ...Miscellaneous Dies Available ......See Imbedded Pictures Overall Dimensions (approx.): 84" x 60" x 95" Weight (approx.): 8,000 lbs. Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Functionality Notes & History: MD Equipment Services (MDES) originally sold this brake to the previous owner in 2015, a fabrication shop owner in Beaverton, OR. The unit came out of a shop in Redmond, OR; unit was completely functional. MDES sold the tooling separate to a different party. The Beaverton owner replaced the motor with a new unit at a total cost of $3,000 for motor and belt. He used the brake for almost 8 years before moving to a new shop and selling to the present owner. The current owner has the unit installed in a warehouse in Salem, OR. He is retiring and liquidating equipment in his shop; would like to resell unit. The brake is connected and available for inspection and test. CALL FOR DETAILS, SCHEDULE INSPECTION WE ARE OPEN TO OFFERS EQUIPMENT LOCATION: Salem, OR Equipment is under power; available for inspection. Seller agrees to load equipment onto Buyer's transportation. Buyer responsible for freight logistics and expenses. Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
