CNC Router

Description

CNC Router
OEM: Machine Automation Technologies, Inc. (Irving, TX)
Model No.: MT-22
DOM: 2000
Serial No.: On Request
Electrics: 220-440 Volt, 60 Cycle, 3 Phase, 15 Amps
Main Spindle: 2 HP; Vacuum Pump: 5 HP

Features and Specifications
...PC Controlled CNC
...Drive System: Stepper
...Vacuum Pump: 5 HP High Pressure
...Dust Hood Head: Pressure Foot
...Table Surface: High Pressure Phenolic Grid w/ Valves
...Table Processing Area (X,Y): 24" x 24"
...Z-Axis Travel: 12"
...Number of Axis: 3
...Spindle Speed: 24,000 RPM

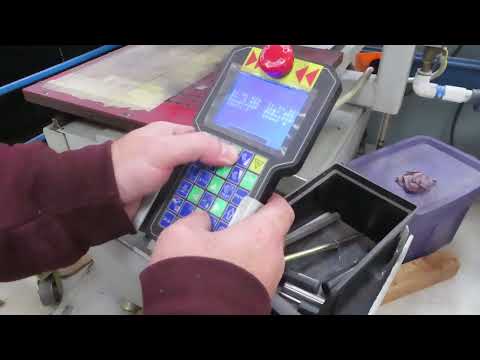

...Control: Hand Held Pendant

Specifications taken from 1st-hand inspection, owner interview, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Overall Equipment Dimensions (as measured): 50" x 70" x 112" (top of rack)
Overall Equipment Weight (approx.): 2,000 lbs.

Functionality Notes:

This unit is presently connected to power and available for inspection. MD Equipment Services took information from the OEM's original year 2000 purchase order. Originally sold to a customer in the Portland area who designed and sold retail signs.

This is a 2nd-owner machine who purchased from the original owner. Has been used mostly for processing aluminum and some plastic. The current owner was using this machine for a trophy customer. That customer is no longer viable so owner wishes to sell the machine.

Machine comes with a cabinet full of tooling and consumable extras. The blue rack shown holding the vacuum pump motor also comes with the machine.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

Equipment is under power and available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
