Electrical Bus Bar Manufacturing System

Description

Electrical Bus Bar Processing System
OEM: NovoPress (Made in Germany)
Hydraulic System Model No: HSBL 2420
Shearing/Punching Model No.: HSBL 160
Date of Manufacture: 2018
Serial No.: On Request

Features and Specifications:
...System Components:
......(1) HSBL 160 Cutting Head w/ Vise
......(1) HSBL 160 Digital Punch
......(2) Low Pressure Power Packs
...Power: 150 KN
...Pressure: 150 Bar (2200 PSI)
…Material Capacity: 1/2" Thick x 6" Wide
...Material Type: Copper or Aluminum
...Originally Sold w/ 9, 11, 14 MM Punch & Die Sets
...Conveyor w/ Material Stop for Length Adjustment
...Hydraulic Pack Foot Pedal Controls

System Component Dimensions (approx.): 20" x 20" x 72" Tall
(Dims include stands, n/i attached connecting rail)
System Dimensions (approx.): 96" x 20" x 72" Tall
(Dims inc. connecting rail; n/i conveyor)
System Conveyor Dimensions (approx.): 158" x 24"
Punch/Shear Component Weights (approx.): 350 lbs. each

Specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality Notes:

This system was purchased new by current owner in 2018. Spoke with technical representative that sold system. Have additional information on file for serious inquiry including system drawings, component specifications, etc. Seller said that system was originally supplied with metric punch and die set.

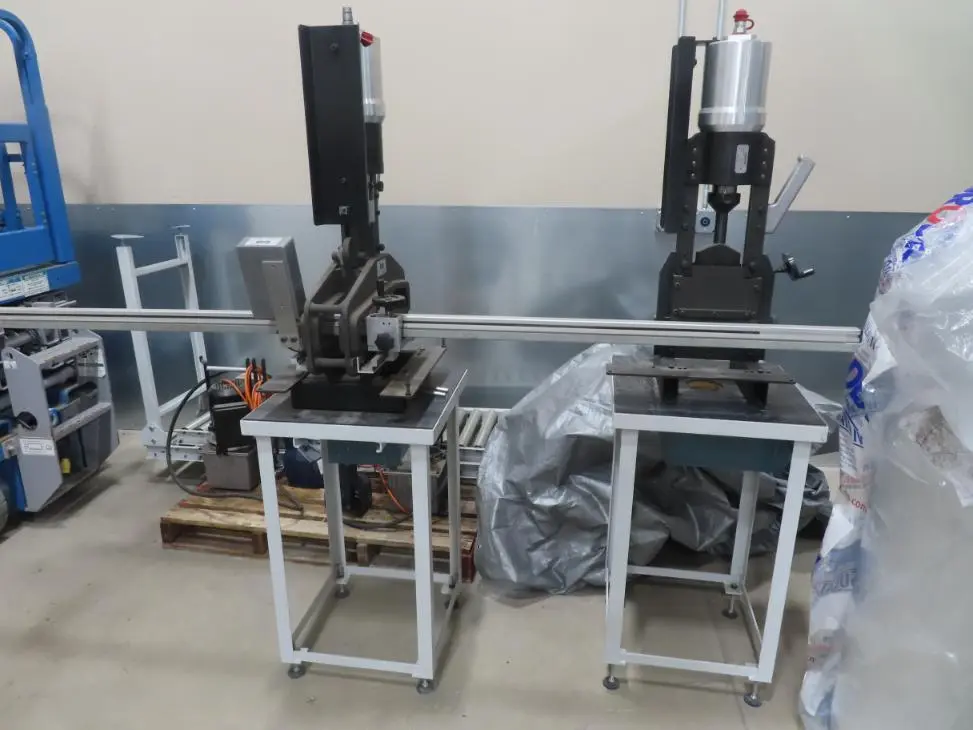

Machine was used to cut and punch copper bus bar for electrical contractor. Pictures showing scrap material in remnant bins. Punch component has digital control. Two (2) hydraulic power packs with foot pedal controls included. Conveyor has material stop for setting length of material processed. System designed for copper and aluminum bus bar processing.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Willamette Valley, OR

Equipment is available for inspection; presently not under power.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
