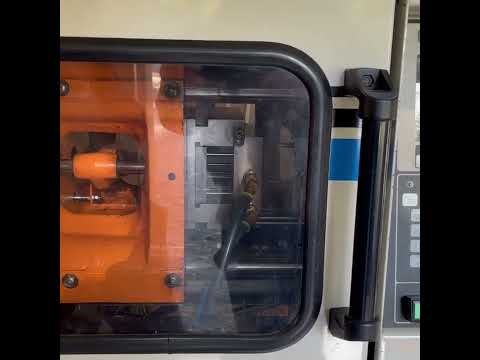

Cincinnati Milacron Injection Molder

Description

Plastic Injection Molder
OEM: Cincinnati Milacron
Model: VSX33 - 2.27 Oz.
Serial No.: S33A0497030
DOM: 1998
Electrics: 230 Volt, 3 Phase, 60 Cycle, 28 FLA
Main Motor: 10 HP

Features and Specifications:
...Max Hydraulic Pressure: 2600 PSI
...Hydraulic Pump Capacity @ 100 PSI: 12 GPM
...G.P. Styrene: 2.27 Oz.
...Theoretical Displacement: 4.13 Cubic Inches
...Injection Pressure: 30,000 PSI
...Injection Rate: 3.45 Cubic Inches/Second
...Injection Screw Stroke: 4.33"
...Screw Diameter: 1.1"
...Screw L/D Ratio: 23 : 1
...Max Screw Speed: 400 RPM
...Clamp Force: 33 Tons
...Clamp Stroke: 9.84"
...Max. Daylight: 21.65"
...Mold Height Min/Max: 11.81" / 4.72"
...Platen (HXV): 16.26" x 16.54"
...Distance Between Tie Rods (HXV): 10.24" x 10.24"
...Ejector Stroke: 3.15" Max
...Ejector Force: 1.9 Tons
...Torque at Screw: 2400 in-lb. @ 2475 PSI
...Number of Pyrometers: 31
...Total Heat Capacity: 5.36 kW
...Plastic Dryer / Hopper
...Penguin Chiller
...Master Unit Die Quick Change System
...Topstar MD-80 3 Axis Robot
...Mokon Temperature Control Unit
......230Volt, 3 Phase, 60 Cycle
......Model: HY2003AA
......Serial No.: 7010702

Overall Machine Dimensions (approx..): 122.3" x 44.4" x 78.1"
Machine Weight (approx.): 4,550 lbs.

Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functional History Notes:

Bought it used from 1st owner in 2021, only put about 40 hrs. on it since purchase, initial owner took meticulous care of it. New power supply in 2023, reloaded parameters. Works well now. Good runner. Comes with quick change die system referred to as a Mud Base, quick change system for molds; CNC Controlled; has a robot purchased for it, never unpacked, wants to sell, see pics.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Bellingham, WA Metro Area

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
