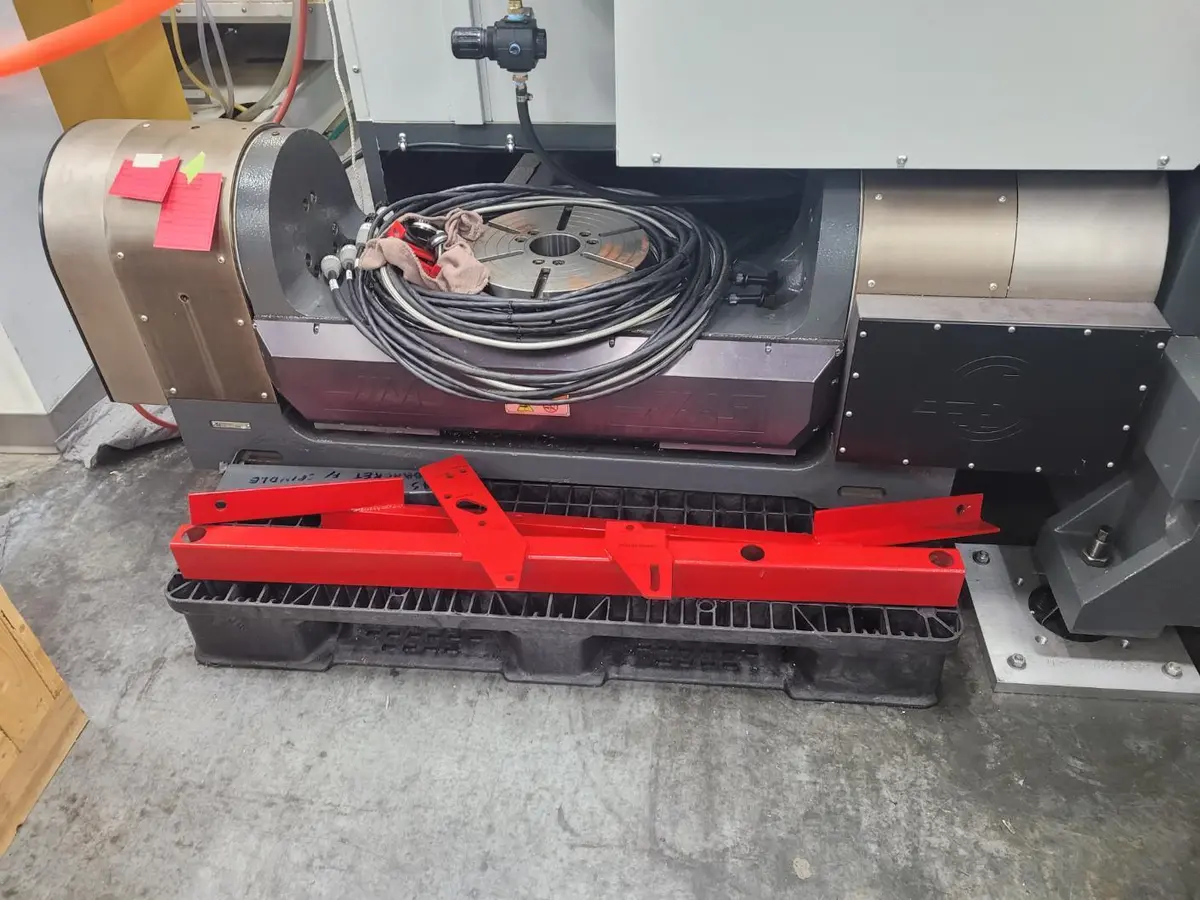

Haas 5th-Axis Rotary Trunnion

Description

Dual-Axis Trunnion Rotary Table
OEM: Haas Automation, Inc.
Model No.: TR310
Serial No.: 104177
DOM Circa: 2015 - 2019
Version: P4

Features and Specifications:
...Platter diameter: 12.2"
...Max Weight on Platter: 500 lbs.
...Max Part Swing: 31"
...Number of T-slots: 6 @ 60°
...Spindle A (Tilt)
......Max Speed: 50 °/sec
......Max Torque: 300 ft lbs.
......Brake Torque @ 100 psi: 1,000 ft lbs.
...Spindle B (Rotary)
......Max Speed: 50 °/sec
......Max Torque: 300 ft lbs.
......Max. Runout: 0.0010"
......Brake Torque @ 100 psi: 500 ft lbs.
...Indexing A (Tilt)
......Max Rotation / Step: +/- 120°
......Resolution: 0.001°
...Indexing B (Rotary)
......Max Rotation / Step: 999.999°
...Max Air Pressure: 150 PSI

Equipment Dimensions (approx.): 65" x 24" x 30"
Equipment Weight (approx.): 2,100 lbs.

Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes and History:

MD Equipment Services (MDES) purchased this trunnion as part of a package deal that included other machine tools. Seller researched and was unable to find documentation on trunnion because purchased by engineer no longer employed. Was told that it was purchased same time as 2019 Haas VF-6; called local Haas representative and they were unable to find in system. Based on research and similar units found on line, we estimate this rotary is within 5-10 years old.

Was never used in production. Told by seller's current engineering staff that unit was never connected and just sat on floor behind machine until we purchased in October 2024.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Salem, OR

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
