Fadal 6030HT Vertical Machining Center

Description

CNC Vertical Milling Machine
Manufacturer: Fadal Engineering
Model: VMC 6030HT
DOM: 2003
Electrics: 480 Volt, 3 Phase, 50-60 Cycle, 25 FLA
Largest AC Motor: 38.4A @ 240 Volt
Main Motor: 22.5 HP

Features and Specifications:

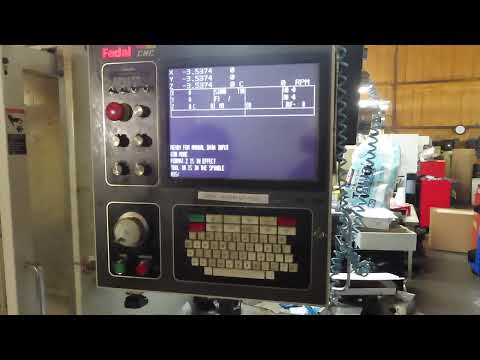

...Controls: Fadal Multi-Processor CNC
...Table Size: 62" x 30"
...Travels (3-Axis):
......X-Axis: 60”
......Y-Axis: 30"
......Z-Axis: 30"
...Rapid Traverse (X,Y,Z): 400 IPM
...Spindle Specs:
......Taper: CT40
......Speed: 10,000 RPM

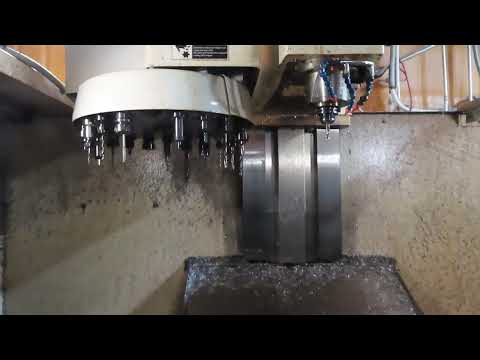

...ATC: 21 Slots (20+1)
...Lubrication, Coolant Systems
...Pendant

Machine Dimensions (approx.): 150" Long x 120" Deep x 122" Tall
Machine Weight (approx.): 17,200 lbs.

Functionality Notes and History:

Machine has been owned by present owner for 12 years. Recently, it has had new motor mounts, new belts for dual spindle speed drive, and new air cylinders that are part of spindle speed system. Spindle assembly has never been replaced. New set of Belleville drawbar washers; draw bar pull pressure is at least 1800 lbs. Has been good runner.

Under power and available for inspection. Owner is selling to make room in shop for planned equipment purchased.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Olympia, WA

Equipment is under power; available for inspection.
Buyer responsible for rigging, loading fees.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection, pickup, or purchase.
