Mazak QT-20N CNC Slant Bed Lathe

Description

CNC Slant Bed Lathe
OEM: Mazak Corporation
Model No.: QT20N-UNIV
DOM: 4/1987
Electrics: 230 Volt, 3 Phase, 60 Cycle
Main Motor: 25 HP (requires confirmation)

Features and Specifications:

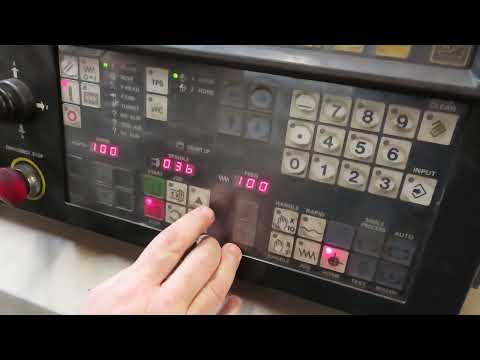

...Mazatrol Cam T-2
...Axis: Two (2)
...Turret: 8 Stations
...Max. Swing: 20.8”
...Turning Diameter: 12.6”
...Distance Between Centers: 40”
...Travels:
...X-Axis: 7.1”
...Z-Axis: 41.1”
...Spindle Specs:
...... Speed: 3,000 RPM (2-Speed Gearbox)
...... Spindle Nose: A2-8
......Bar Capacity: 2.63”
...Tailstock Taper: MT #4
...Chuck: 10”, 3-Jaw
...Tool Probe
...No Chip Conveyor

Equipment Dimensions (approx.): 132” x 72” x 74”
Equipment Weight (approx.): 10,800 lbs.

Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes and History:

Owned about 12 years. Thrust bearings replaced on Z-Axis; spindle drive replaced in 2023; tailstock fixed December 2024. Memory can hold 16 programs. No bar feeder. Machine has been a good runner for current owner. He is moving multiple pieces of equipment out of shop as a matter of business; making room for newer equipment, streamlining.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Olympia, WA

Equipment is under power; available for inspection.
Buyer responsible for rigging and loading fees.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
