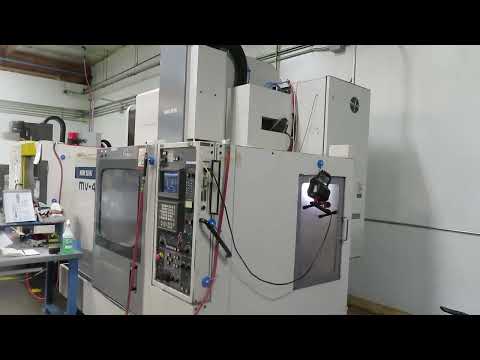

Mori Seiki MV-40B Vertical Machining Center

Description

CNC Vertical Machining Center
Manufacturer: Mori Seiki Company, LTD (Made in Japan)
Model: MV-40B
DOM (circa): 1993
Electrics: 220 Volt, 3 Phase, 60 Hz
Spindle Power: 7.5 HP (cont) / 10 HP (30 min)

Features and Specifications:
...Fanuc MF-M6 CNC Control
...5-Axis CNC Vertical Machining Center
...Table: 43.3" x 17.7"
...Table Load Capacity: 1,540 lbs.
...Travels:
......X-Axis: 31.5"
......Y-Axis: 16.14"
......Z-Axis: 29.08" (Includes 9" Extension)
......A-Axis: Full 4th - Continuous
...4th-Axis Rotary Trunnion
...Spindle Specs:
......Spindle Speed: 12,000 RPM
......Spindle Taper: CT40
...ATC: 20 Slots, Vertical Orientation
...Tool Specifications:
......Max. Length: 9.84"
......Max. Ø: 3.15" w/ Adjacent Tools
......Max. Ø: 4.92" w/ Adjacent Pockets Empty
......Max. Weight: 17.6 lbs.
...Way Lube System
...Oil Chiller
...Coolant System: 35.64 Gallon Capacity
...40K RPM High Speed Spindle (NEW)
...Manuals

Dimensions (approx.): 101" x 94" x 110"
Weight (approx.): 14,000 lbs.

Approximate advertised specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality & History Notes:

The machine is a 2nd-Owner unit. Machine was purchased approximately 15 years ago, around 2010 from Nike. Machine has an extended Z-Axis utilizing a 9" thick spacer. Comes with a 4th-Axis rotary; shown running in video. Nikken rotary was rebuilt about 10 years ago. New power cables.

Unit comes with high speed spindle that was purchased in 2018-19 and never used; 40,000 RPM capacity. See attached pictures. Current owner uses Windows box with Predator software for storing programs and trickle feeding to the controller.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Seattle, WA Metro Area

Equipment is under power; making parts
Available for inspection and test.
Buyer responsible for rigging out of shop and loading on their transportation.
Buyer responsible for freight logistics and expenses.
MDES can quote loading and provide a freight quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
