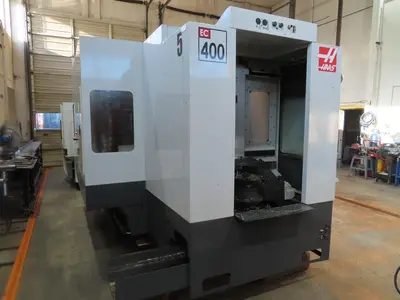

Haas EC-400 HMC with Pallet Pool

Description

Horizontal Machining Center
OEM: Haas Automation, Inc.
Model: EC-400PP (Pallet Pool)
DOM: November 04/2012
Electrics: 195-260 Volt, 3 Phase, 50-60 Cycle, FLA: 40 Amp
Main Motor: 30 HP
Cutting Hours (approx.): 3,423

Features and Specifications:
...CNC Control: Haas w/ Pendant
...6-Station Pallet Pool
...Pallet Size: 15.75” x 15.75”
...Pallet Load Max.: 660 lbs.
...Spindle Specs:
......CT40 Taper
......8,100 RPM (12,000 RPM Option)
......Inline Direct Drive
......Thru Spindle Coolant
...Travels:
......X-Axis: 20"
......Y-Axis: 20"
......Z-Axis: 20"
...Cutting Feedrates:
......Cutting: 500 IPM
......Rapid (X,Y,Z): 1,000 IPM
...Tool Changer (ATC): 70 Slots
...Auger
...Rigid Tapping
...4th-Axis
...Complete Coolant System
...Accessories:
......Chip Conveyor (110” x 18” x 70”)
......(5) Tombstones (58” x 25” x 40”)
......Transformer (24” x 24” x 32”)
......Thru Spindle Coolant Filtration (22” x 44” x 36”)

EC400 Equipment Dimensions (approx..): 160” x 96" x 105"
EC400 Equipment Weight (approx.): 17,520 lbs.
Pallet Pool Dimensions (approx.): 108” x 78” x 78”

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine was purchased used by the last owner in July 2022. The company went bankrupt in 2024; the unit is now owned by the finance company that had the lien on the machine. The machine is presently not under power; stored in a warehouse in the Tacoma-Seattle, WA Metro Area. MD Equipment Services (MDES) inspected the machine on April 4, 2025. According to the previous owner, it is a good running machine with no problems.

Standard specifications for spindle speed and other features are listed. This unit has the 70-tool ATC option; it has a chip conveyor. I am attempting to confirm some machine specifications such as spindle speed and capacity of coolant tank with their representative on the West Coast. I do not have a picture of the hours before machine was decommissioned; the machine is presently not under power. Told by the finance company the Cutting Hours were 3,423 at time of decommissioning.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Seattle-Tacoma, WA Metro Area

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for loading fee, if charged.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
