Haas HL-2H CNC Lathe

Description

Manufacturer: Haas Automation, Inc.
Model: HL-2H
Year: 1996
Electrics: 230 Volt, 3 Phase, 50-60 Cycle, 40 Amp FLA
Main Motor: 15 HP

Features and Specifications:
...Haas CNC Control
...2-Axis: Z,X
...Swings:
......Over Bed: 20"
......Over X-Slide: 9.5"
...Machining Length: 24"
...Max Turning Diameter: 10"
...Turret Capacity: 10 Slots
...Travels:
......X-Axis (Cross Travel): 8.45"
......Z-Axis (Longitudinal): 20"
...Feedrates:
......X,Z-Axis Rapid: 400 IPM
...Spindle Specs:
......Speed: 4,500 RPM
......Chuck Size: 8"
......Bar Capacity: 2"
......Bore: 3"
...1-Pedal for Headstock
...Tailstock (not operable)
...Coolant System
...Electronic Enclosure Cooler
...(2) Serial Ports
...Manual
...Tooling:
......8" 3-Jaw Chuck

Equipment Dimensions (measured): 100" x 72" x 80"
Equipment Weight (approx.): 9,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner purchased machine close to 15 years ago from a machine shop in WA. Machine has ran constantly since that time. Has always had work for this machine. Has been a good runner for him. Retiring, wants to liquidate all equipment in shop.

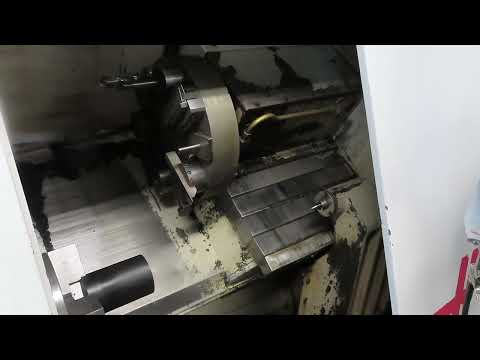

He replaced the power supply; tailstock inoperable because it needs a card. He has never fixed because he does not use tailstock. He used lathe to run plastic parts as demonstrated in imbedded video. Batteries were changed in 2021; documentation notes rigid tapping.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Bend, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
