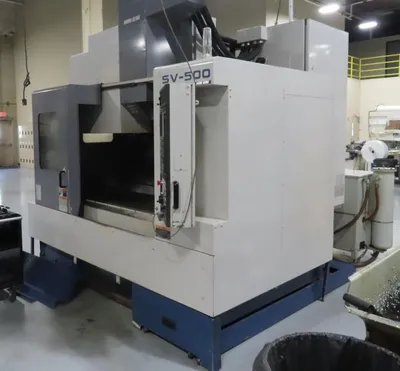

Mori Seiki Vertical Machining Center

Description

CNC Vertical Machining Center
Manufacturer: Mori Seiki Co. LTD.
Model: SV-500B/50
Year: 10/1998
Electrics: 220 Volts, 3 Phase, 60 Cycle, FLA 168 Amps
Main Motor: 30 HP

Features and Specifications:

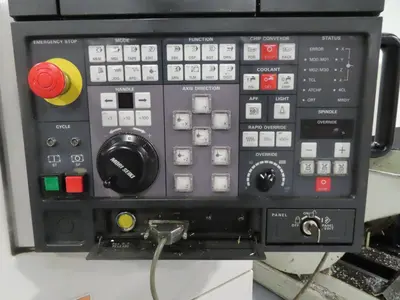

...CNC Controls: MSC-501
...Table: 52" x 24"
...Travels:
......X-Axis: 31.5"
......Y-Axis: 20.1"
......Z-Axis: 20.1"
...Spindle RPM: 10,000 RPM
...Spindle Taper: CT50
...ATC: 30 Slots
...Coolant System
...Spindle Chiller
...High Pressure Coolant
...Chip Conveyor

CNC Equipment Dimensions (measured): 112" x 110" x 119"
Chip Blaster Dimensions (measured): 52" x 24" x 47"
Overall Equipment Weight (approximate): 17,000 lbs. (CNC Mill Only)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine has been a good runner for the current owner. They are moving out of their shop due to limited space and required real estate for new equipment. The operator loves this machine, especially the large 52" long table. I was told they have run parts on this machine in past using a 4th-Axis rotary indexer.

The present owner is the 2nd owner; they purchased from original buyer around 20 years ago. Has never had any major replacements other than general preventative maintenance items.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
