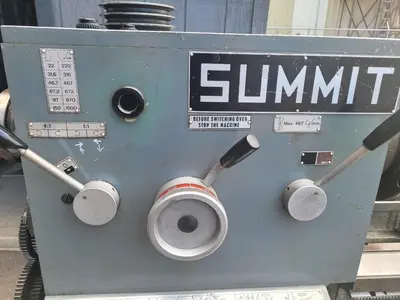

Summit Engine Lathe w/ Tooling

Description

Manual Engine Lathe
OEM: Summit Machine Tool Manufacturing Corp.
Model: 19-4 x 80
Year: 1973
Electrical: 220-440 Volt, 3 Phase, 60 Cycle
Main Motor: 7.5 HP

Specifications and Features:
…Swings:
……Over Bed: 19”
……Over X-Slide: 10.75”
……Over Gap: 27”
…Gap: 15" Long
…Distance Between Centers: 80”
...Spindle Specs:
……Thru Hole: 4-1/8”
……Nose: D1-8 Camlock
…...Speeds (12): 22 – 1500 RPM
…Threads:
…...Inch Threads (TPI): ¾ – 92
…...Metric Threads: 0.25 – 23
…Feeds per Revolution:
…...Inch Feeds: 0.112 – 0.0009
…...Metric Feeds: 2.84 – 0.0235
…Tailstock Specs:
…...Diameter: 3”
......Taper: #5 MT
…...Travel: 8”

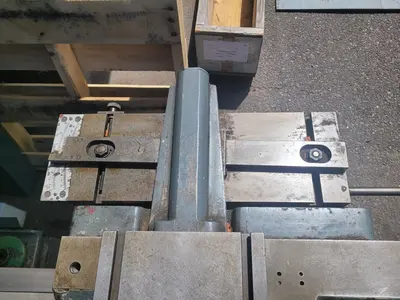

…Taper Attachment
…Back Splash
…Coolant Tray, Nozzle Fixture
…Foot Pads
…Tooling (see pics):
……Steady & Following Rests
……(1) 12” 3-Jaw Chuck
……(2) 18” 4-Jaw Chuck
……(1) 16” 4-Jaw Chuck
……Holders & Centers
……Tailstock Coolant Tube

Machine Dimensions (approx.): 138” x 48” x 72” Tall
Machine Weight (approx.): 6,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner has two of these machines; only requires one for production needs. Has decided to sell one lathe because storage space is limited. Comes with extra belts. Needs to have a broken tap extracted in one of the gear sheave holes and re-threaded. This machine comes with several chucks, holders, steady rests, and other tooling. Has inch and metric threading capability.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Bend, OR

Equipment is not under power; available for inspection.
Sister machine under power for inspection.
Buyer responsible for forklift rental for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide forklift quote for loading.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
