Marvel Series 8 Vertical Bandsaw

Description

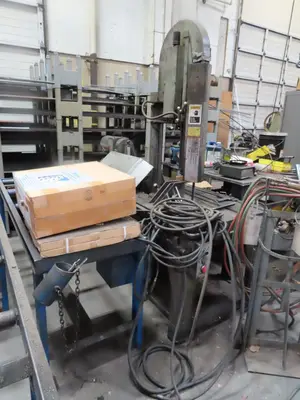

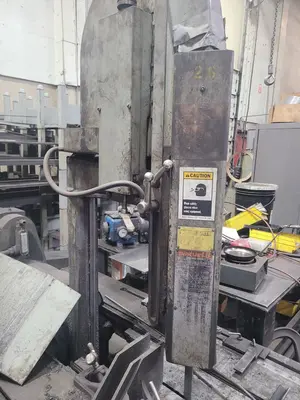

Marvel Vertical Tilt Frame Bandsaw
Manufacturer: Armstrong-Blum Mfg. Company
Marvel Series 8
Model: 8/M8/M3/M12
Serial No.: 812957
DOM: 1990's Vintage
Electrics: 230-460 Volt, 3 Phase, 60 HZ, 6 FLA
Main Motor: 1.33 HP

Features and Specifications:
...Capacities:
......Capacity at 90°: 18” Horizontal, 22” Vertical
......Capacity at 45° Right: 18” Horizontal, 14.5” Vertical
......Capacity at 45° Left: 18” Horizontal, 13” Vertical
......Capacity at 60° Right: 18” Horizontal, 9.7” Vertical
......Capacity at 60° Left: 18” Horizontal, 7.3” Vertical
......Capacity at 3° Cant: 17.5” Horizontal, 22” Vertical
...Blade Speeds (12): 75 - 660 FPM (4 Lever)
...Work Table: 24” x 33”, T-Slotted
...Wheel Diameter: 19” Cast Iron
...Table Height: 35-1/2" (approx.)
...Blade: 14' Long x 1″ Wide, .035″ Thick
...Coolant System
...Extra Blades
...(2) Roller Conveyors
......6' x 2'
......10' x 2'

Equipment Dimensions (approx.): 89” x 44” x 87”
Equipment Weight (approx.): 2,870 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes and History:

It has been a good runner for this owner. This machine is 100% functional and everything operates as it should; has been used within the last 6 months. The present owner is selling off their fabricating and machine tools as they are farming out this work. This machine is not under power; available for inspection in "as is, where is" condition.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS EQUIPMENT

LOCATION: Portland, OR Metro Area

Equipment is available for inspection.
Buyer responsible for rigging out of shop, loading on their transportation.
Current owner may be able to load; confirmation required.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote loading and freight if desired.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
