Thermal Vibration Testing Chamber

Description

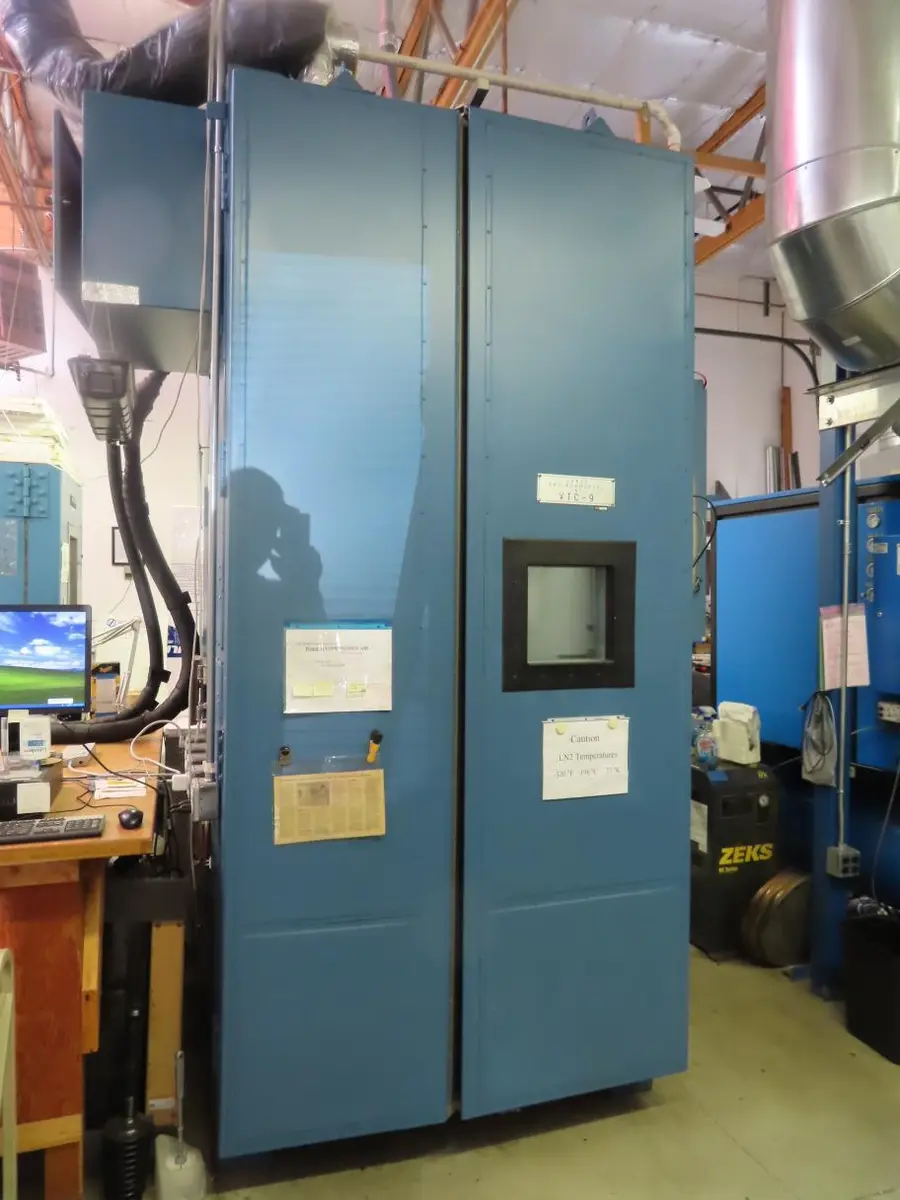

Thermal Vibration Chamber
OEM: Hanse Environmental, Inc.
Model: VTC-9
DOM: 07 – 1991
Electrics:
...480 Volt, 3 Phase, 60 Cycle, 150 FLA
...240 Volt, 3 Phase, 60 Cycle, 300 FLA

Features and Specifications:
...Temperature:
......Change Rate: Up To 108°F/Minute
......Range: -148°F to 392°F
...System:
......Cooling LN2 Linear Valve Control, Direct Atomization in Plenum
......Heating: 99 kW Solid State Time, Proportional Control
......Table Support: (1) Set of (4) Springs, 250 lbs. Each
......Total Static Load: 1,000 lbs.
......Doors: Two Each Front and Back, 12” x 24” Window in Each w/ 10” x 22” Viewing Area
...Programmable Control and Data Logging:
......Computer and Manual Control of Temp, Vibration, Humidity
...Dimensions and Utilities:

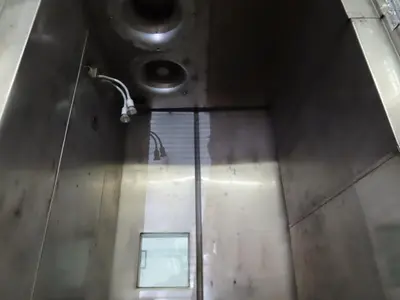

......Interior Bare Chamber: 35.5” x 42” x 67”
......Vibe in Lower Position: 35.5” x 42” x 47”
......Exterior Chamber: 81” x 59” x 107”
...Tri-Axial Vibration for TVC Models
......Level: Up to g0 gRMS
......Range: 20 – 10,000 Hz
......Control: +/- gRMS Within 1 Minute of Settling
......Table: 36” x 36” Mounting Surface
...Exciters: (9) Nine:
......LubeMist Lubricated
......Adjustable Ball Valves
......SoftStartSM low 1
......gRMS Startup
...Gas and Air:
......Nitrogen” 1” Supply 40-50 PSIG
......Compressed Air: ¾” Supply, 120 PSIG, 80 CFM
......Exhaust: Two (2) 6” Ports, No fans or restrictions
...Ports: Six (6) x 6”
...Data: Real Time Data Logging
...Programs: Various Available
...Air Compressor:
......Rogers Machinery Company
......Rotary Screw Air Compressor
......MG Series
......Model: 30-RMS-MG30-100-070394
......460 Volt, 110 PSI, 126 CFM
...Zeks NC Series Air Dryer

Equipment Dimensions (approx.): 81” x 59” x 107”
Equipment Weight (approx.): 4,000 lbs. (n/i compressor, dryer)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Owner is retiring and liquidating the equipment in his shop. He has been in business since the 1990's and purchased this piece used from Canadian Telecom; he purchased the air compressor new. His shop is METICUOUSLY organized and EXTREMELY clean. All his equipment is in top-notch condition. It is presently under power and available for inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
