Electrodynamic Vibration System

Description

Electrodynamic Vibration System
OEM: Unholtz-Dickie Corporation
Model: SA45-R16C
DOM: 1999
Electrics: 480 Volts, 3 Phase, 60 Hz

Features and Specifications:
...Sine Force (pk): 12,000 lbf (53.4 kN)
...Random Force (rms): 12,000 lbf (53.4 kN) (NAVMAT)
...Shock vs. Load Lbs.:
......4 ms, 1/2 sine: 50 g : 300 lbs. / 100 g : 100 lbs.
......11 ms, 1/2 sine: 30 g : 650 lbs. / 50 g : 300 lbs.
...Frequency Range: DC to 3,000 Hz
...Maximum Acceleration: Sine (pk) 114g
...Maximum Velocity:
......Continuous 70 in/s
......Shock: 115 in/s
...Displacement: 2"
...Armature Diameter: 17.5"
...Armature Weight: 105 lbs.
...Armature Resonance: 1,850 Hz
...Amplifier Model (output): SA45 (45 KVA)
...Shaker Internal Load Support: 1,500 lbs.
...Shaker Body Isolation 4 Hz w/ (4) Isolation Bags
...Electrical Requirements Total: 80 KVA

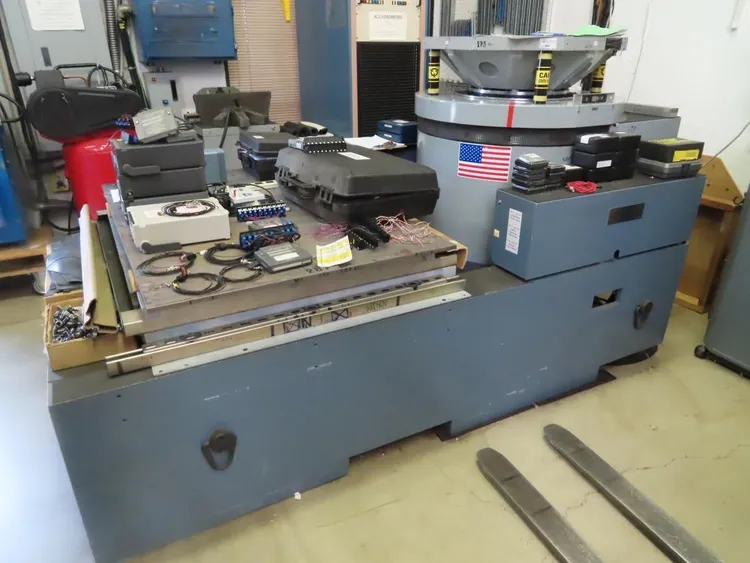

...Slip Table: 36" x 36" w/ 3/8"-16 Inserts on 4" Centers

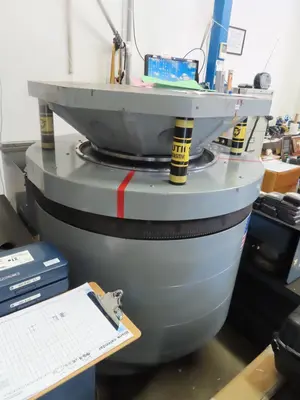

...Head Expander: 32" Octagon Baughn Engineering
...Air Cooled (comes with air impeller)
...Part Holding Fixtures (see pics)

Equipment Dimensions (approx.): 92” x 54” x 48”
Equipment Weight (approx.): 13,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Owner is retiring and liquidating the equipment in his shop. He bought this unit new in 1999. Has been in business since the 1990's. His shop is METICUOUSLY organized and EXTREMELY clean. All his equipment is in top-notch condition. It is presently under power and available for inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
