Marvel Automatic Vertical Tilt-Frame Bandsaw

Description

Automatic Vertical Tilt-Frame Bandsaw
Manufacturer: Marvel Manufacturing Company, Inc.
Model: 2125A-PC60
DOM: 2006
Electrics: 460 Volt, 3 Phase, 60 Cycle, 19.2 FLA
Main Motor: 5 HP

Features and Specifications:
…PCII Micro-Process Control

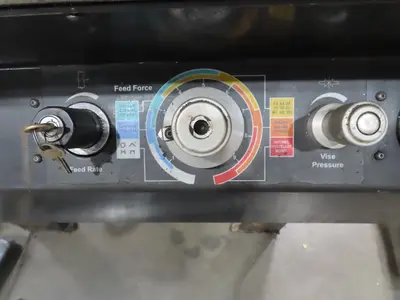

…Operator Push Button Panel
…Rectangular Cutting Capacities:
……@ 90°: 20" x 25"
……@ 45°: 20" x 17"
……@ 60°: 20" x 11.25"
…Round Cutting Capacities:
……@ 90°: 20"
……@ 45 Degree: 17"
……@ 60 Degree: 11.25"
…Blade Size: 1.25” x 0.042” x 17’-6”
…Blade Speed: 30 – 650 FPM
…Feed Force: 0 – 350 lbs.
…Band Wheel: 23.00” Ø
…Table Load Capacity: 8,000 lbs.
…Max. Vise Opening: 20.25”
…Coolant System:
……Capacity: 60 Gallons
……Motor: 0.25 HP
…Hydraulic System:
……Capacity: 10 Gallons
……Drive Motor: 3 HP
……Pump Capacity: 7.8 GPM
…Work Height: 38.00”
…Feed Table:
……Load Capacity: 14,000 lbs.
……Shuttle Stroke: 24.00”

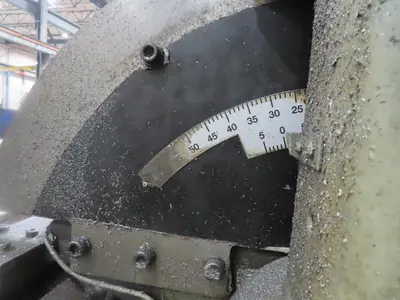

…Column Tilt
…Single or Automatic Cycle
…Column Forward & Retract
…Extra Blades

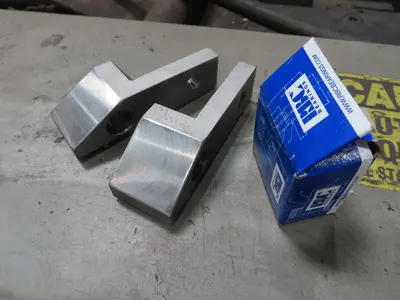

…Spare Bearing Parts

Saw Machine Dimensions (approx.): 108” x 72” x 102”
Feed Dimensions (approx..): 96” x 67” x 48”
Weight (approx.): 7,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine was purchased by current owner new in 2006. They are selling because they have already purchased a bandsaw machine replacement. This machine has been decommissioned and is not under power.

The electric feed function stopped working in 2012; they never fixed because ran machine fine without feature. They do not know what is exactly wrong with feed drive or what is required to fix. The coolant system has been stored outside; however, pictures are attached of the exact same coolant system on the new machine that is in production.

Comes with spare blades and a box of bearing components; has all the machine manuals. Machine will require some maintenance and repair.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is available for inspection in “as is” condition.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
