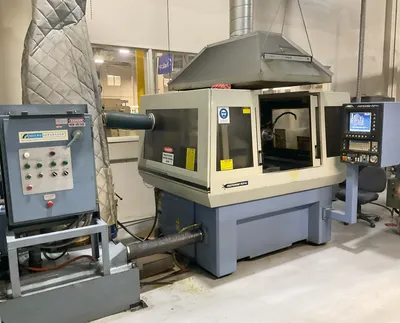

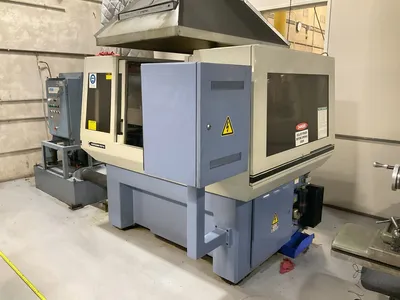

ANCA Fastgrind Tool & Cutter Grinder

Description

CNC Tool & Cutter Grinder
Manufacturer: ANCA
Model: Fastgrind TG7 Plus
Year Manufactured: 1997
Electrics: 480 Volt, 3 Phase, 60 Cycle
Main Motor: 7.5 / 10 HP

Features and Specifications:

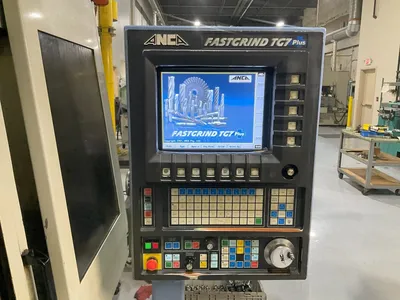

...ANCA System 32
...Travels: X - 13.1" / Y - 9.6" / Z - 8.2"

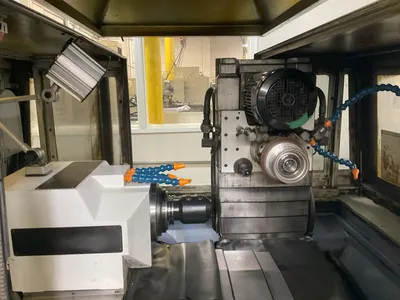

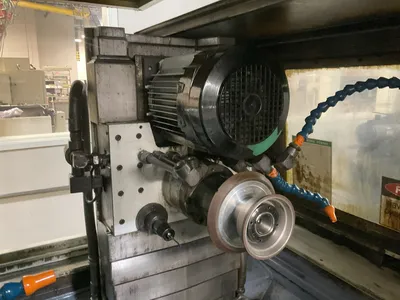

...Wheel Specifications:
......Max. Wheel Diameter: 8"
......2" Bore
...Spindle RPM: 10,000

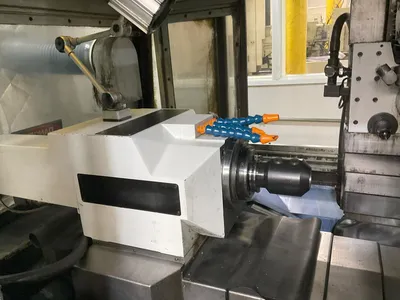

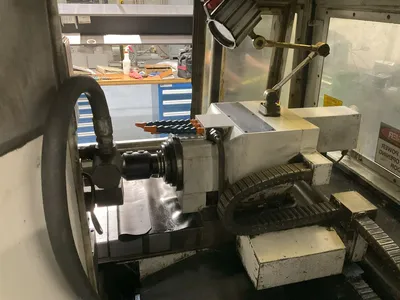

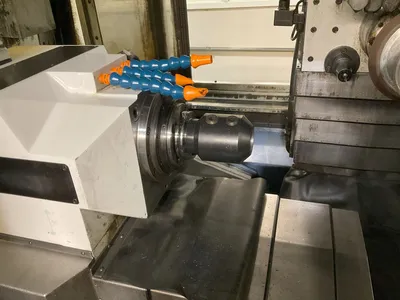

...A-Axis Specifications:
......Max Swing: 9.4"
......Part Weight (w/ toolholder): 88 lbs.
......Workpiece Taper: ISO50
......Speed Range: 0 - 200 IPM
......Programming Resolution: 0.001°
....C-Axis Specifications:
......Rotation: 147°
......Positional Feedback Resolution: 0.0002°
......Programming Resolution: 0.001°
......Max Feedrate: 2,064°/Min
...B-Axis (Soft Axis):
......Rotation of Wheel around Grinding Point
......Compounds X,Y, & Z-Axes
......Max Feedrate: 4,800°/Min
...V-Axis (soft axis):
......Linear Retract/Advance of Grinding Spindle
......Rapid Traverse: 256 IPM
......Max Feedrate: 256 IPM

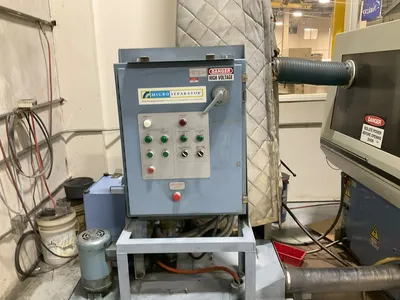

...Mist Collecting System

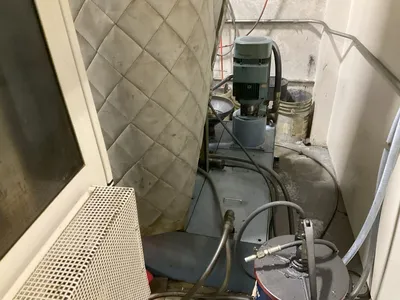

...Coolant System
...Manuals
...Miscellaneous Tooling, Parts (see pics)

Grinder Dimensions (approx.): 82" x 60" x 78"
Grinder Weight (approx.): 9,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine has been a good runner for the current owner. They are moving out of their shop due to limited space and required real estate for new equipment. Please review pictures and verbiage of machine description.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
