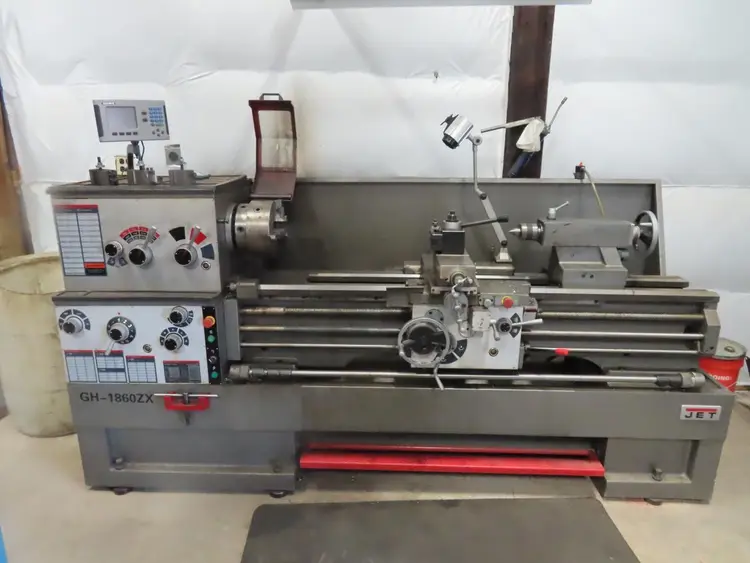

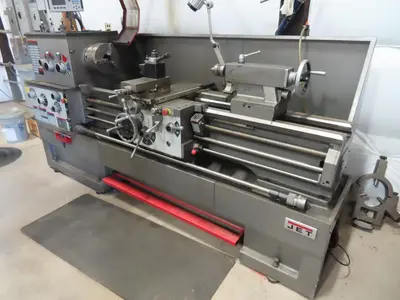

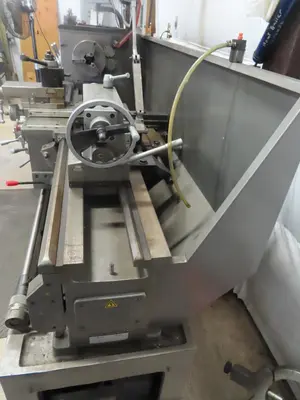

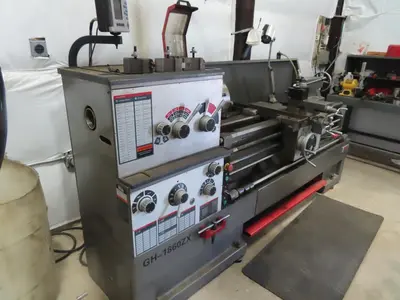

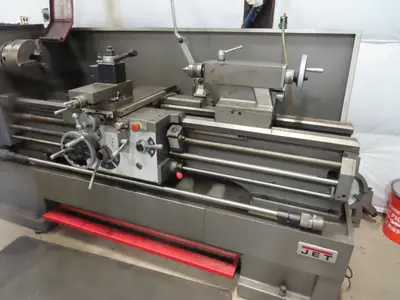

Jet Large Bore Engine Lathe

Description

Large Bore Engine Lathe
Manufacturer: Jet

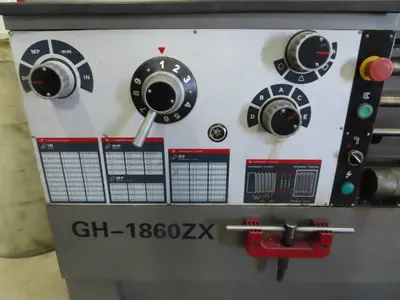

Model: GH-1860ZX
OEM Stock No.: 321960
Year: 2017
Electrics: 230-460 Volts, 3 Phase, 60 Cycle
Main Motor: 7-1/2 HP

Features and Specifications:

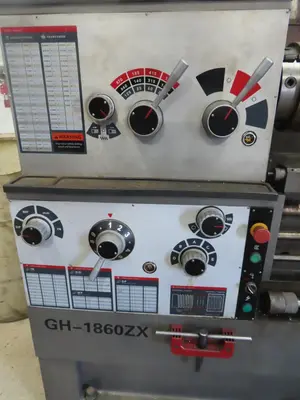

...Geared Head
...Nominal Size: 18" x 60"

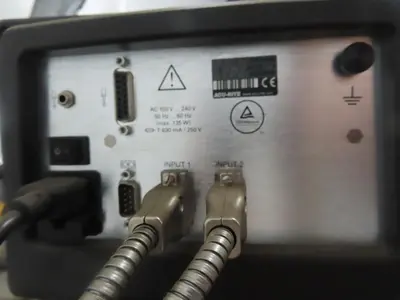

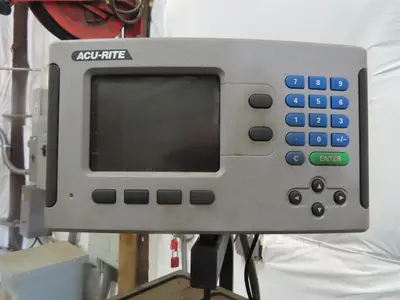

...Controls: Accu-Rite DRO
...Travel Specs:

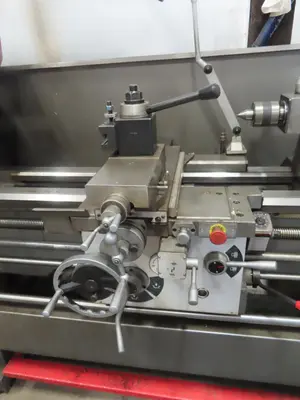

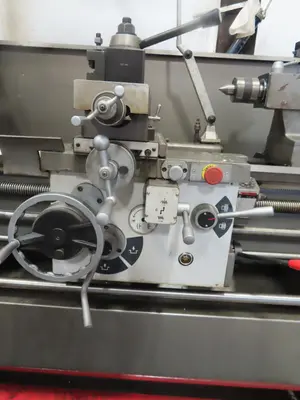

.....Carriage: 55-9/16"

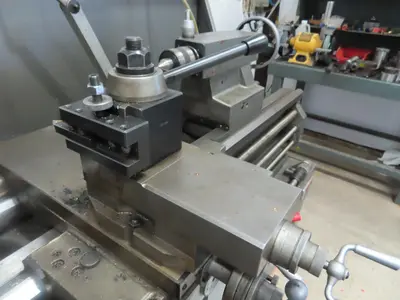

.....Compound Slide: 5-1/8"

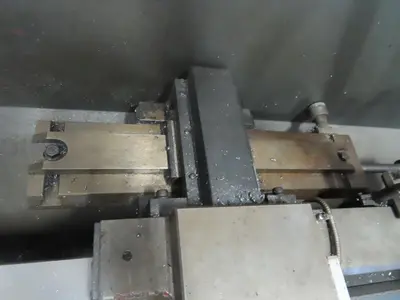

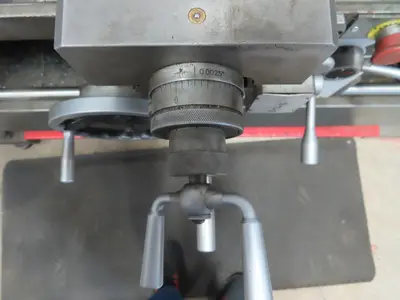

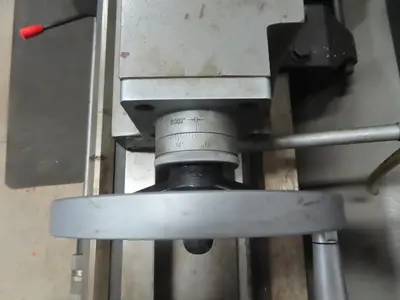

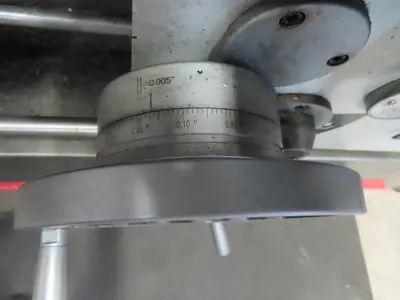

.....Cross-Slide: 9"

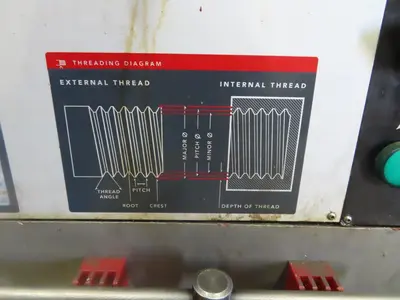

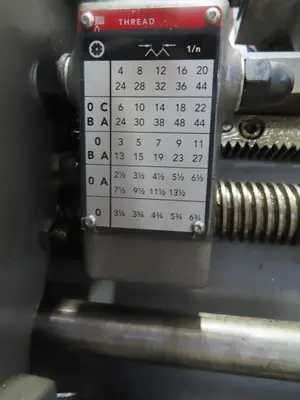

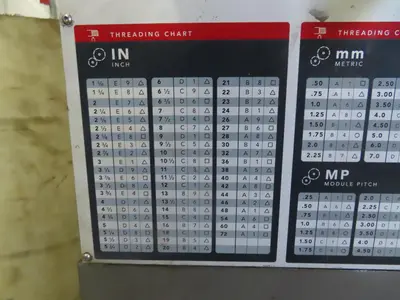

...Thread Specs:
.....Inch (61): 1-5/8 - 72
.....Metric (24): .50 - 20.0

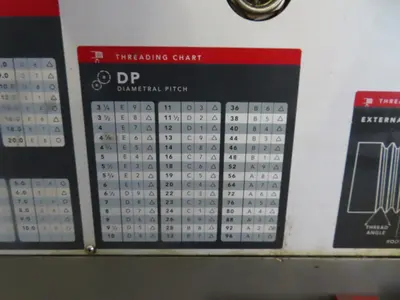

.....Diametral (45): 3-1/4 - 96
.....Module (20): .25 - 10.0

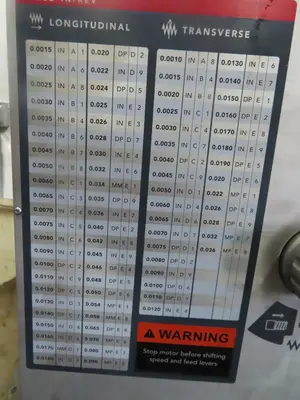

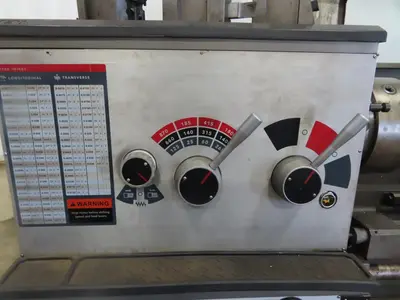

...Feed Rate Specs:
.....Longitudinal (46): 0.0015 - .090
.....Cross-Feed (31): 0.0010 - 0.036
...Spindle Specs:

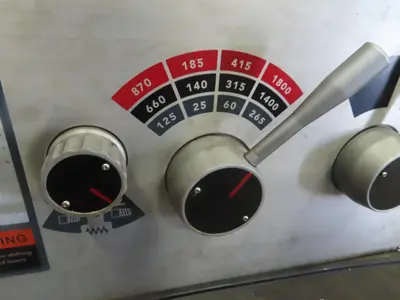

.....Speeds (12): 25 - 1800 RPM

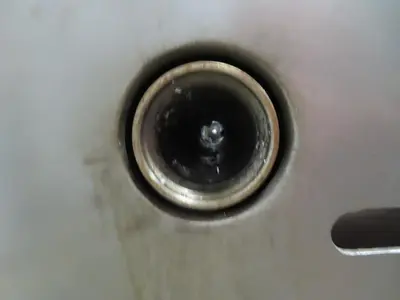

.....Bore: 3-1/8"
.....Mount: D1-8
.....Taper: MT-7
...Swing Specs:
.....Over Bed: 18"
.....Over X-Slide: 11"
.....Over Gap: 27-1/2"

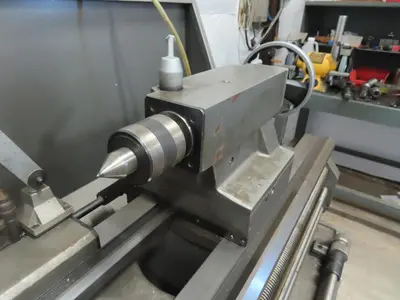

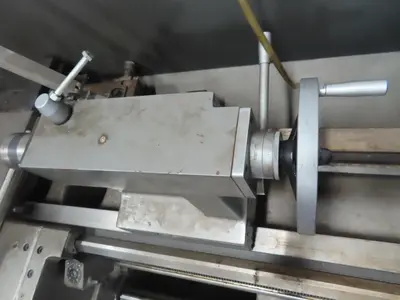

...Tailstock Specs:
.....Travel: 5"
.....Taper: MT-5
...Distance Between Centers: 60"
...Gap Length: 12"

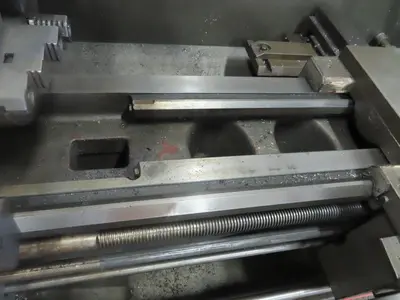

...Bed Width: 13-1/8"

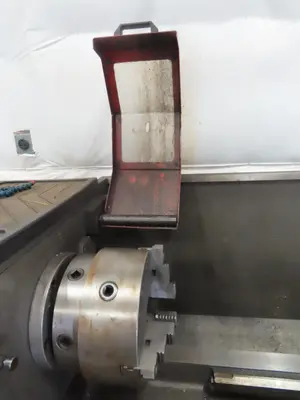

...Spindle Splash Guard
...Work Lamp
...Foot Treadle
...Tooling (see pics):

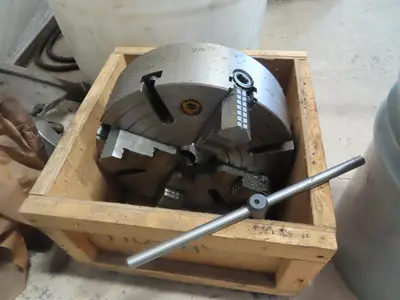

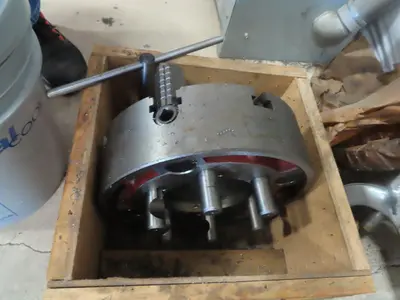

.....12" 4-Jaw Chuck (in crate)

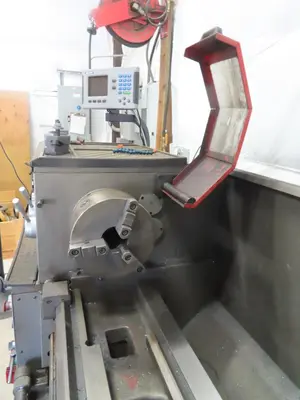

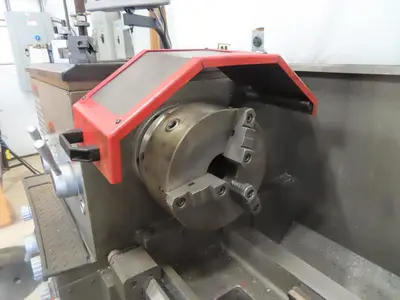

.....10" 3-Jaw Chuck (on lathe)
.....Drill Chucks, Centers

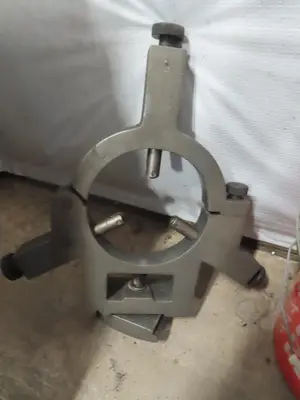

.....Steady Rest
.....(4) Holders

Overall Dimensions: 115" x 44" x 69"
Equipment Weight (approx.): 6,320 lbs. (n/i tooling)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This seller purchased lathe new in 2017 for use in a maintenance shop. Machine has been used very little, less than 100 hours. Owner has decided to sell because not adding any value to his operation. Machine is under power and available for inspection and test.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Salem, OR Metro Area

Equipment is under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
