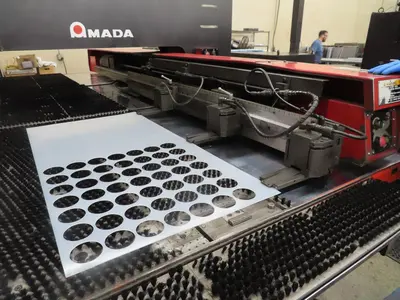

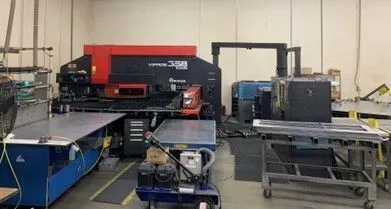

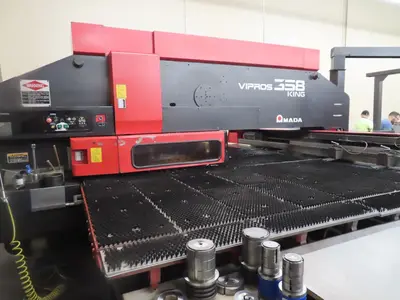

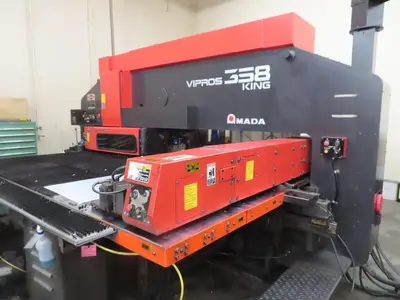

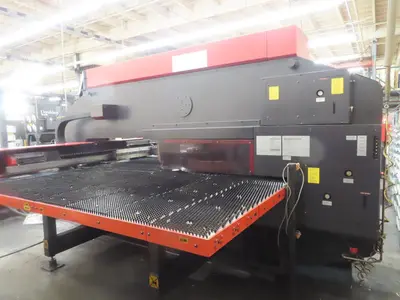

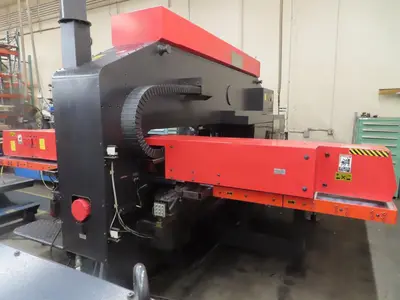

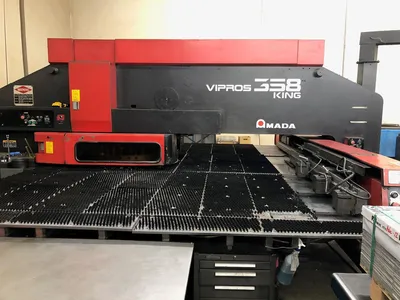

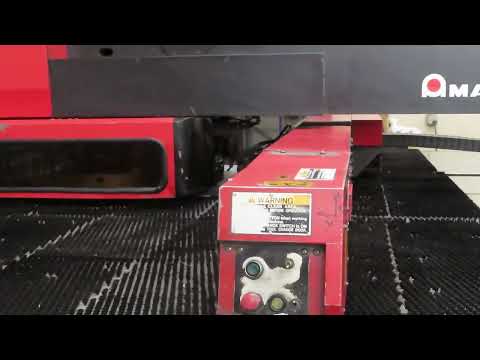

Amada Vipros 358K CNC Punch Press

Description

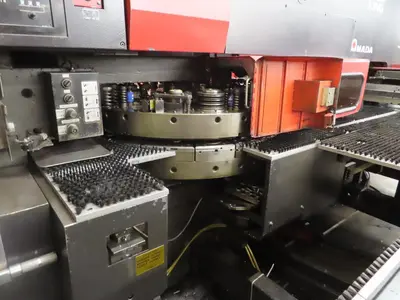

CNC Turret Punch Press

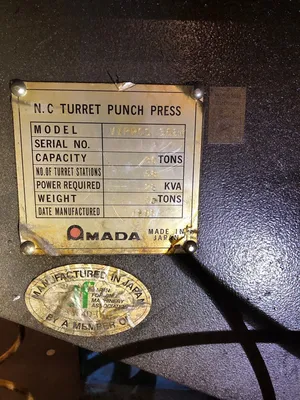

OEM: Amada (Made in Japan)
Model: Vipros 358K (305080K)
DOM: 1995 (in service 2/1996)

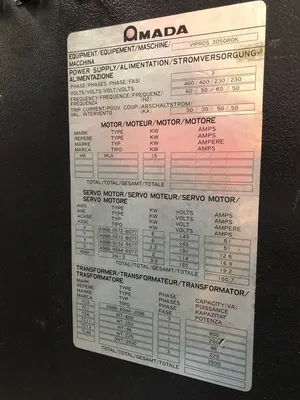

Electrics: 230-460 Volt, 3 Phase, 50-60 Cycle
Main Motor: 20 HP (15 kW)
Hours (approx.): 50,000

Features and Specifications:

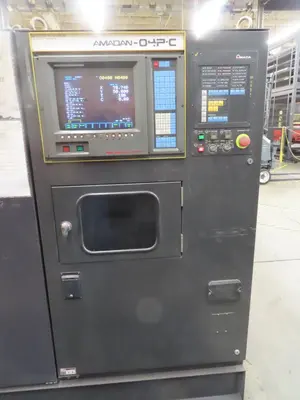

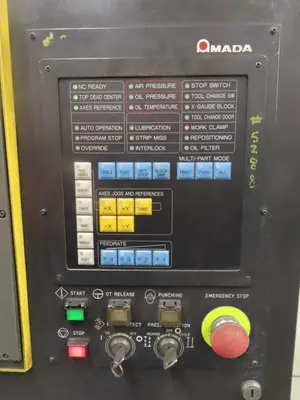

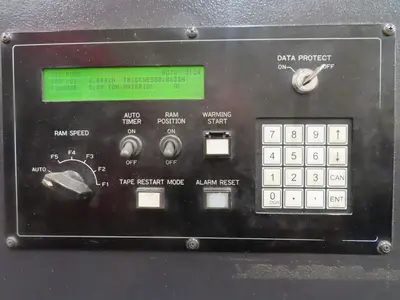

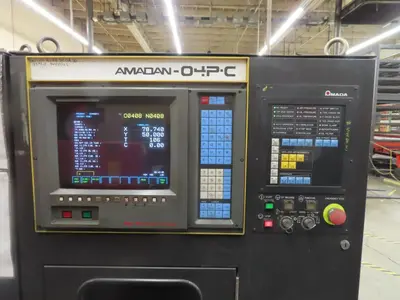

…Amadan 04P-C CNC Control w/ PHNC
......3-Axis Simultaneously Controlled
......Program Code: ISO or EIA
...4-Axis: X, Y, T, C
...Punch Capacity: 33 US Tons

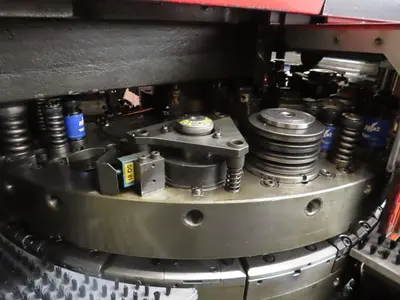

...Turret Stations: 58 (4 Auto-Index)
...Travels (approx.):
......X-Axis: 78.74"
......Y-Axis: 50.00"
...Max Ram Stroke: 1.57"
...Max. Sheet Size: 50" (Y) x 157.5" (X)
...Max. Material Thickness: 0.126"
...Max. Sheet Weight: 110 lbs.
...Max. Hole Diameter: 4.5"
...Turret Rotation Speed: 30 RPM
...Max Feed Speed: 262.4 FPM
...Punching Accuracy:+/- 0.004"
...Tool Type: Amada Thick Turret

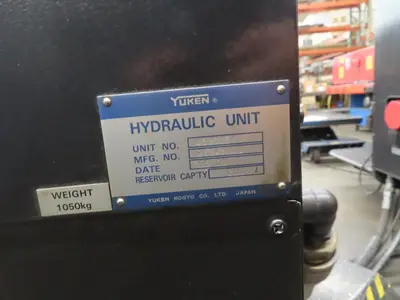

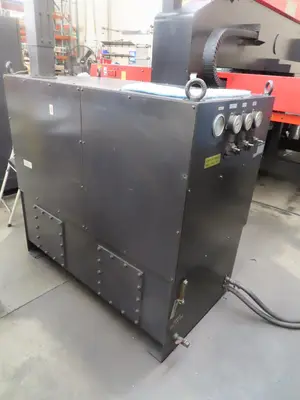

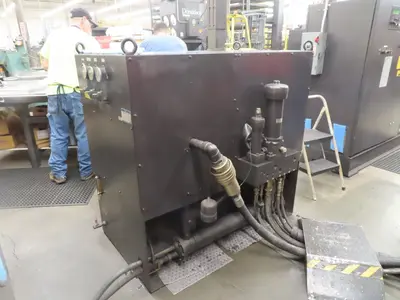

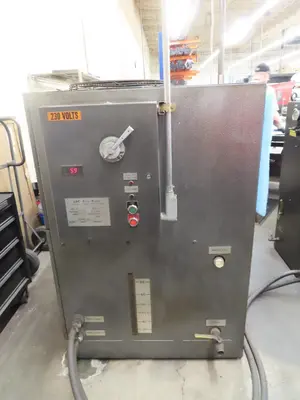

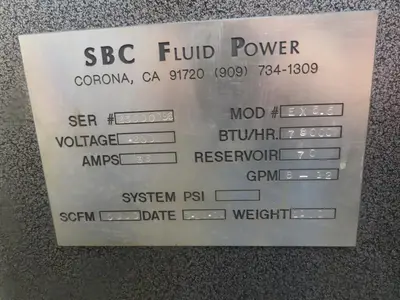

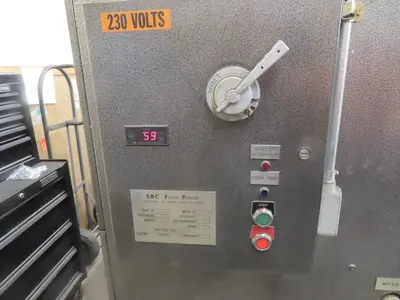

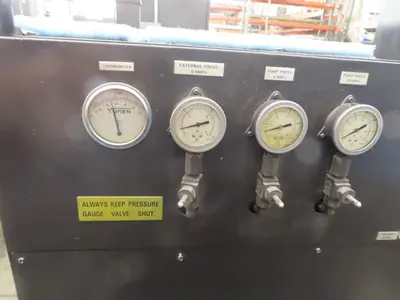

...Hydraulic, Chiller Units

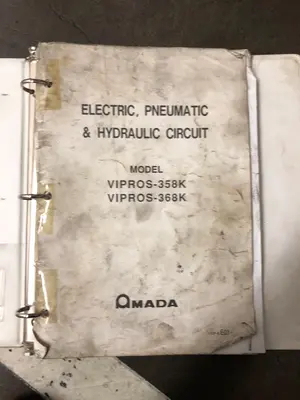

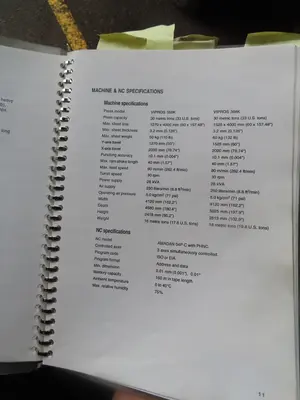

...Full Set of Manuals

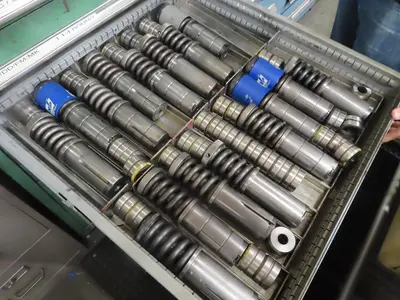

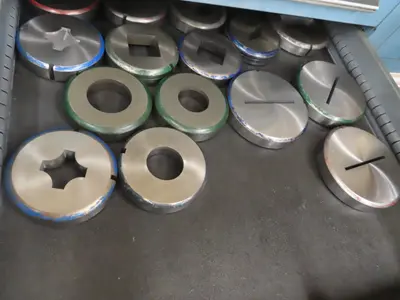

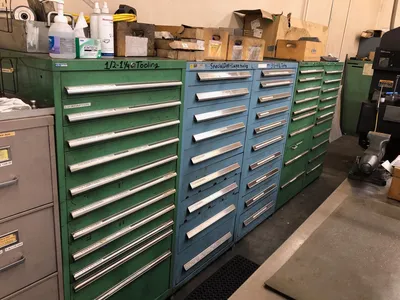

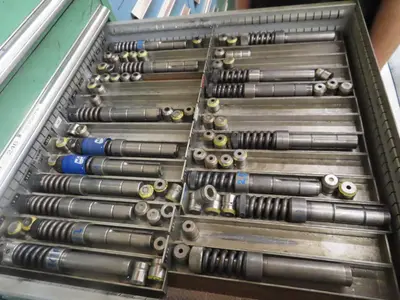

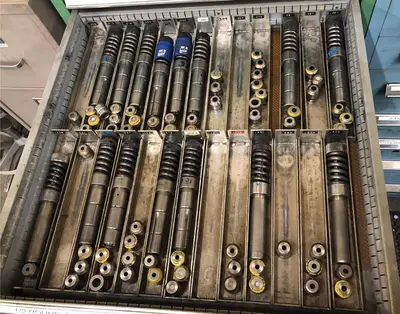

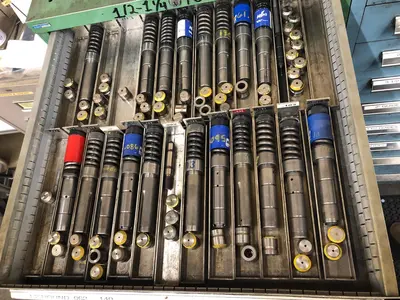

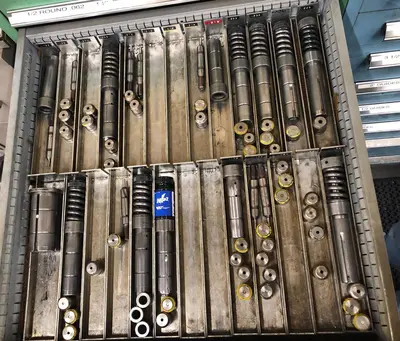

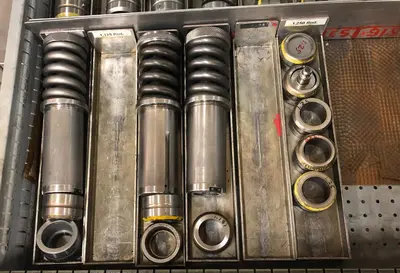

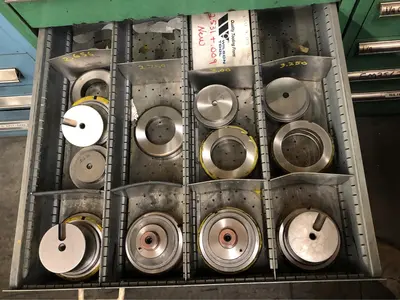

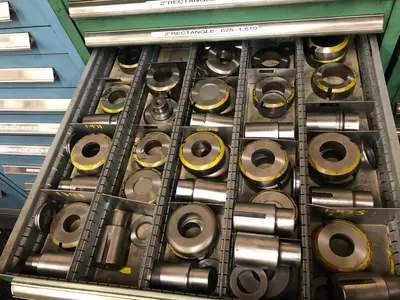

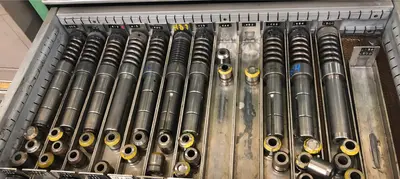

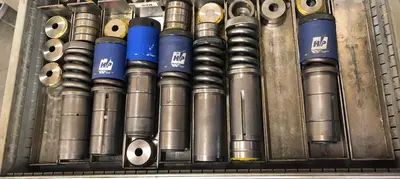

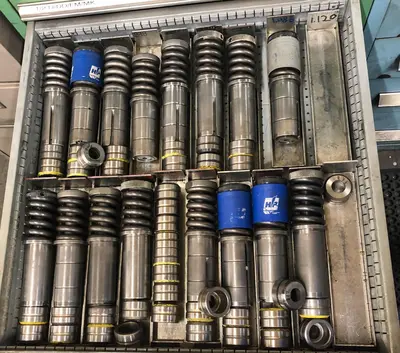

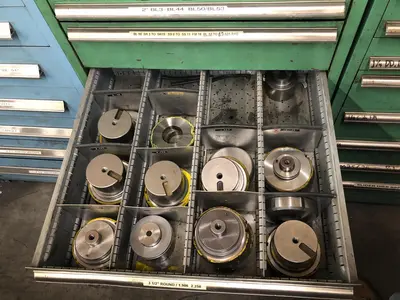

...Tooling
.....Various Sizes: REVIEW ALL PICTURES

** This is the tooling that has been set aside for this machine sale. There may be more available; however, this is a representative representation.

Overall Machine Dimensions (approx.):
…Main Machine: 163" x 182" x 97"

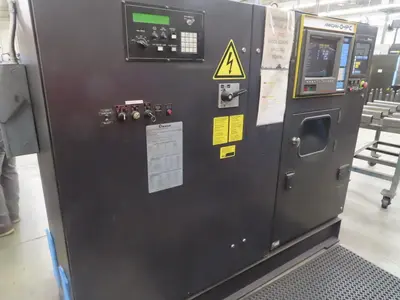

…Control Stand: 71" x 28" x 63"
Machine Weight (approx.): 32,000 lbs. (not inc. tooling)

Advertising specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications subject to change.

History & Functionality Notes:

This machine is 100% functional and presently under power. The machine is clean and comes with tooling. PLEASE review imbedded pictures of tooling that is included with this machine sale.

Equipment must be sold by October 2025, latest. Being replaced by newer equipment.

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is currently under power; available for inspection.
Buyer responsible for loading preparation.
Buyer responsible for rigging out of shop and loading onto their transportation.
Buyer responsible for freight logistics, costs, and liabilities.
Contact MDES for rigging, loading quotation.

Contact MD Equipment Services LLC to schedule inspection or review purchase details.
