Southwestern Trak K3 Knee Mill

Description

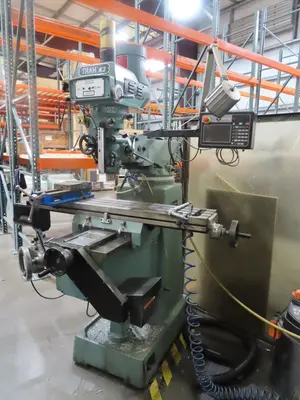

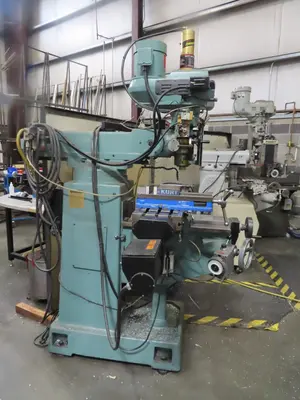

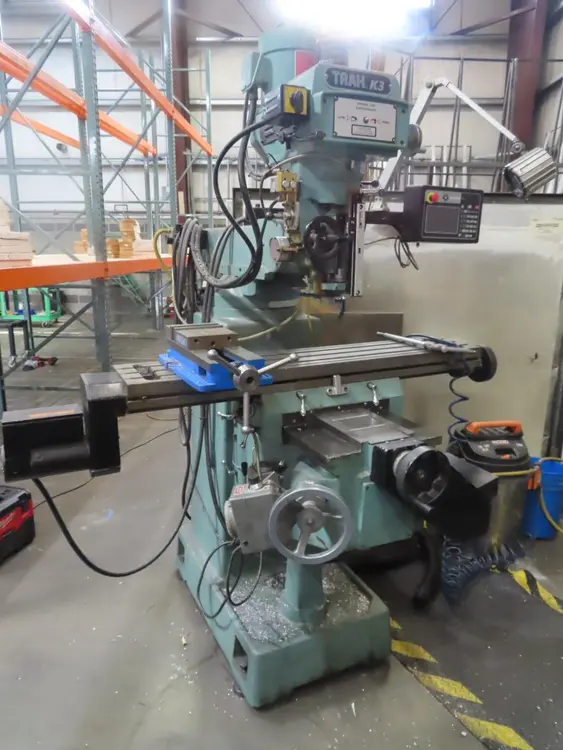

TRAK K3 Bridgeport Style Knee Mill
OEM: Southwestern Industries
Model No.: TRAK K3 EMX
Serial No.: 072DB15657
DOM: 2007
Electrics: 220 Volt, 3 Phase, 60 Cycle, 8.5 Amps

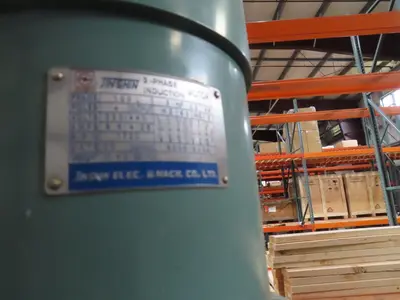

Main Spindle: 3 HP

Features and Specifications:

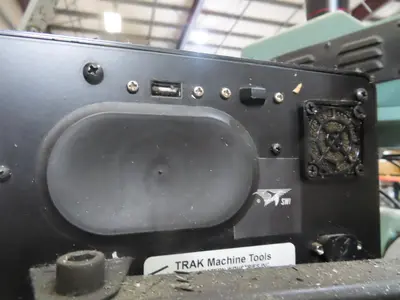

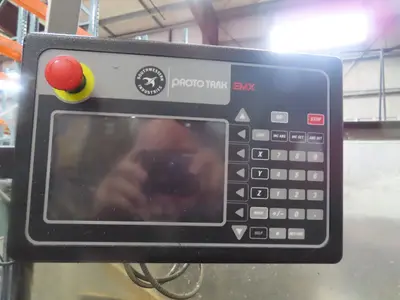

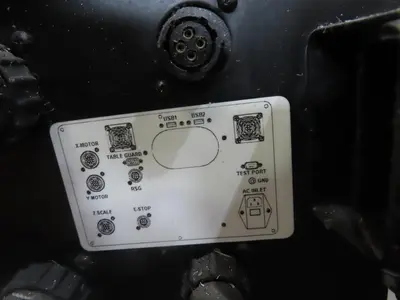

...2-Axis CNC Control: Proto Trak EMX
......Controller Refurbished in 2019
...Table Size: 50" x 10"
...Travels (approx.):
…..X-Axis: 36” (CNC Servo Drive)
…..Y-Axis: 16” (CNC Servo Drive)
…..Knee: 16”

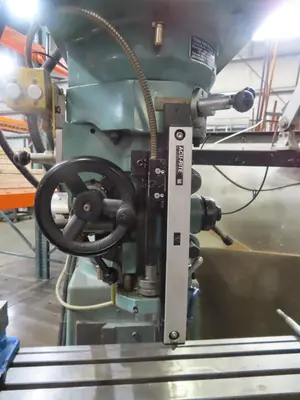

…..Quill: 5” (Z-Axis Scale Only)
…..Ram: 15”

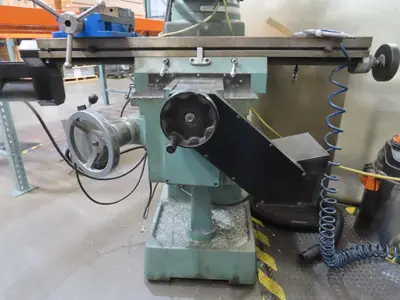

…Knee Power Feed
...Spindle Specifications:
......Taper: R8

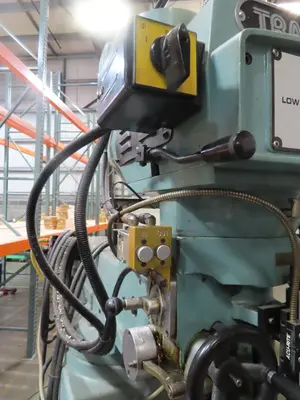

......Forward/Reverse Switch
......Variable Low/High Speeds: 60 – 4200 RPM

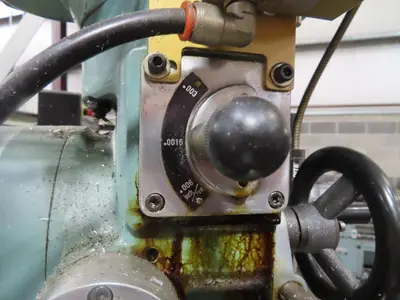

…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 850 lbs.

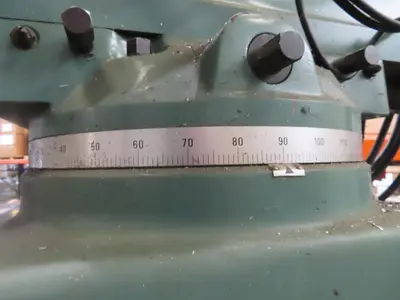

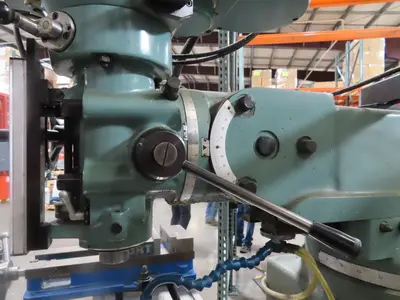

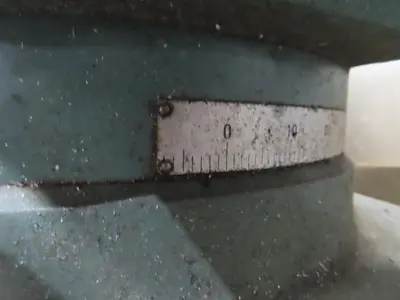

...Head Tilt:
......L-R: 90 Degrees
......F-B: 45 Degrees
…1-Shot Way Lube

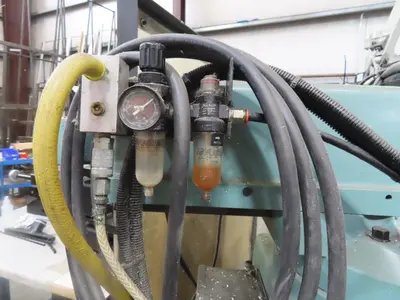

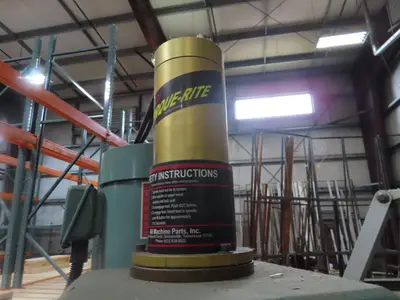

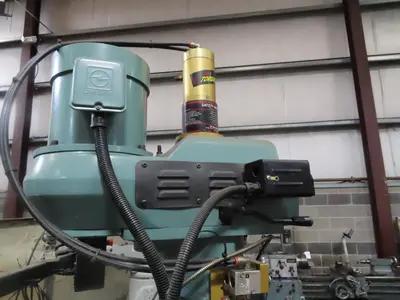

…Pneumatic Draw Bar

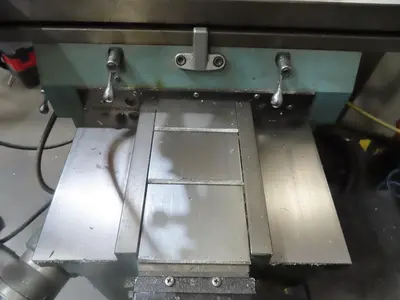

...Y-Axis Box Way
...Meehanite Casting
...Turcite Coated Ways
...Worklight
...No Tooling or Vise

Overall Equipment Dimensions (measured): 72" x 72" x 90"
Overall Equipment Weight (approx.): 3,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

MD Equipment Services (MDES) purchased this mill from one of my regular accounts. Was connected to power when I reviewed prior to purchase and movement to my warehouse. My customer needed real estate for new equipment; no longer utilizing machining cell. I am going to power up this week and check for backlash and other parameters.

I talked to the OEM. The next generation of controller is the KMX and RMX models; this machine can be upgraded to these controllers utilizing a 3-Axis conversion package. MDES can provide quotes. Machine is currently set up for CNC control in X- and Y-Axis; Z-Axis is scale only, readout on controller.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Gresham, OR (Portland Metro Area)

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
Delivery option available; dependent on time and distance.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
