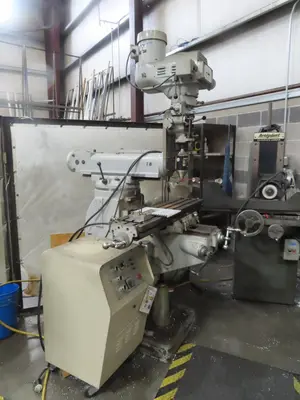

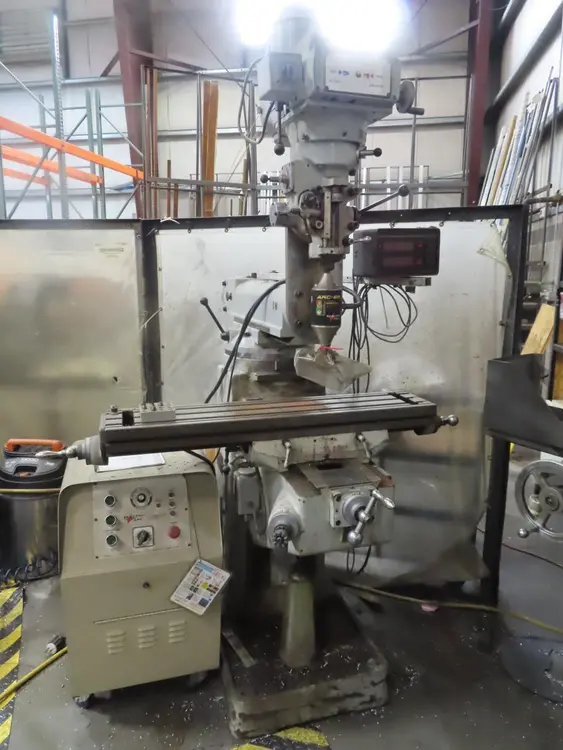

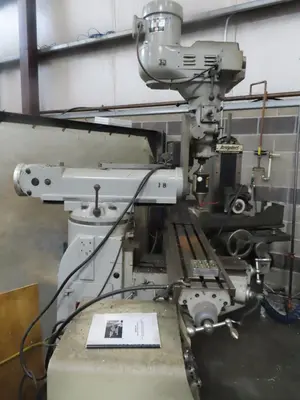

Exacto Vertical Turret Knee Mill

Description

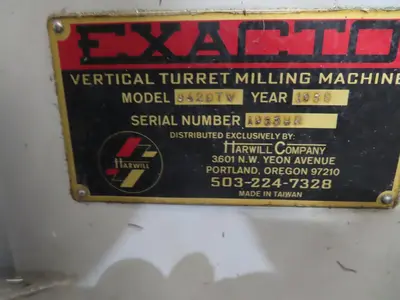

Vertical Turret Milling Machine
OEM: Exacto, Harwill Company (Taiwan)
Model No.: 9420TV
DOM: 1988
Electrics: 240 Volt, 3 Phase, 60 Cycle
Main Spindle: 2 HP

Features and Specifications:

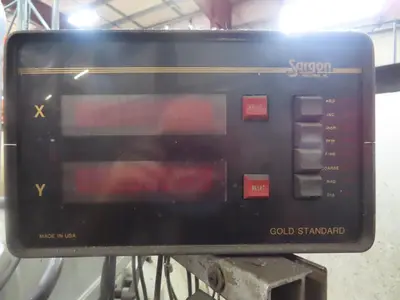

...Sargon Gold Standard 2-Axis DRO

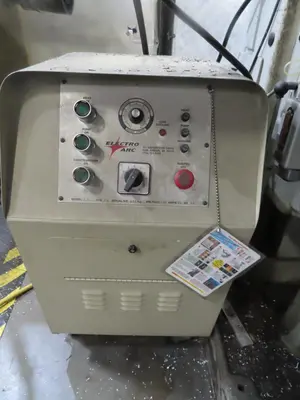

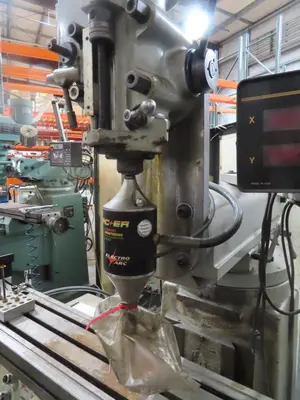

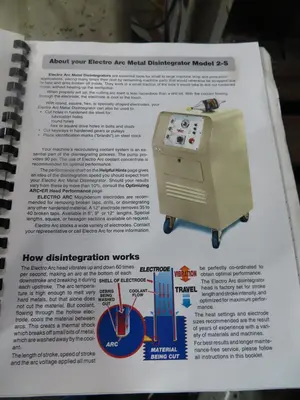

...Electric Arc Metal Disintegrator (Etcher)

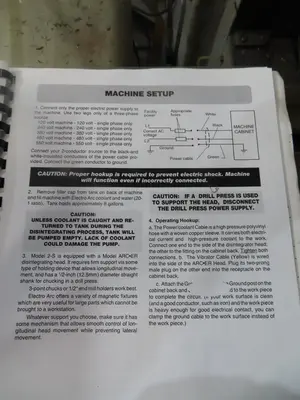

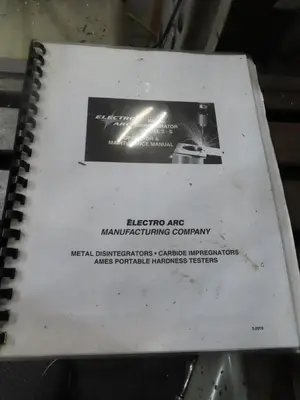

......Control, Spindle Attachment, Manuals
...Table Size: 42" x 9"

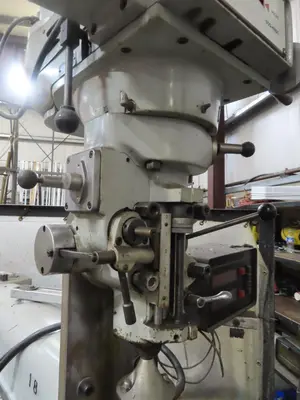

...Spindle Specs:
......Taper: R8

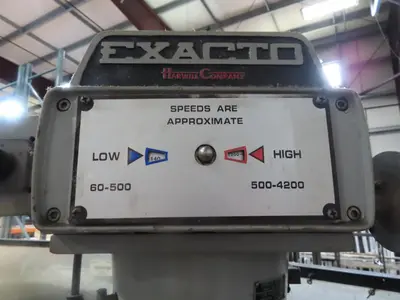

......Variable Speeds, High & Low: 60 - 4200 RPM
...Travels (approximate):
…..X-Axis: 31”
…..Y-Axis: 12”

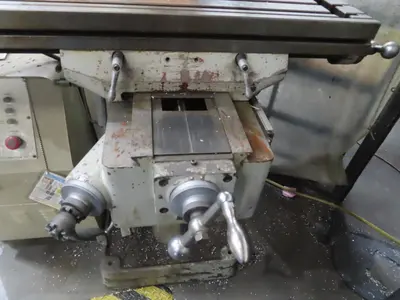

…..Z-Axis (Knee): 17”
…..Quill: 5”
…..Ram: 12”

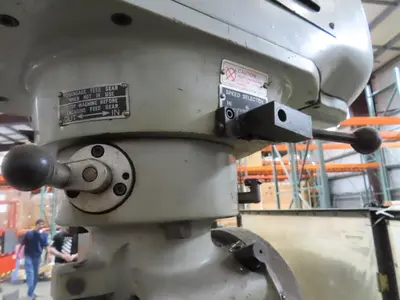

…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 650 lbs.

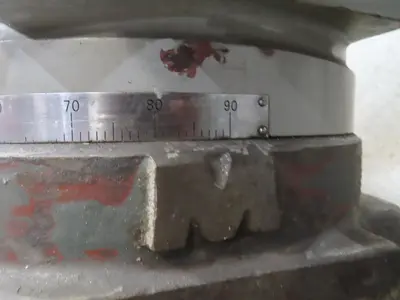

...Head Swivel: L-R 90 Degrees

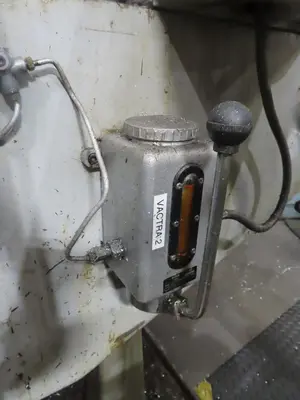

…1-Shot Way Lube
...Dovetail Way Surface
...Meehanite Casting
...Turcite Coated X,Y Ways
...Worklight

Dimensions (approx.): 72" x 72" x 90"
Weight (approx.): 2,700 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

MD Equipment Services (MDES) purchased this mill from one of my regular accounts. Was connected to power when I reviewed prior to purchase and movement to my warehouse; however, did not see it run under power. Have no reason to doubt my customer's assurance that mill was a good runner. Needed real estate for new equipment; no longer utilizing machining cell.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Gresham, OR (Portland Metro Area)

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
Delivery option available; dependent on time and distance.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
