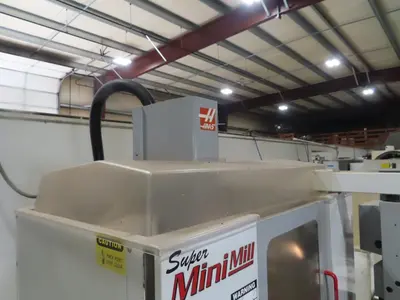

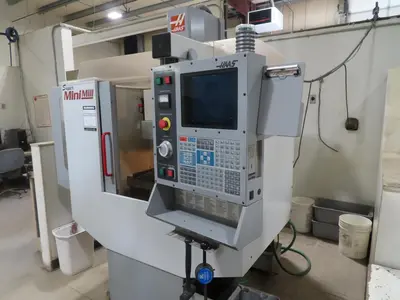

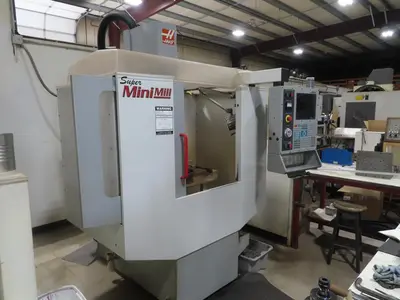

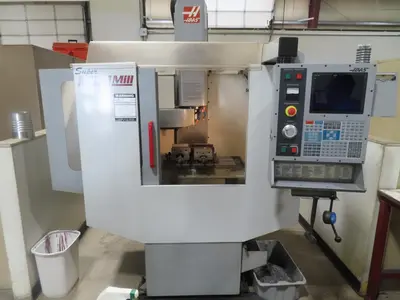

Haas Super Mini Mill

Description

Vertical Machining Center
Make: Haas Automation Inc.
Model: Super Mini Mill
Year of Manufacture: 2001

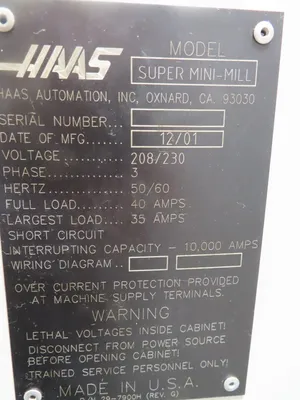

Electrics: 208-230 Volt, 3 Phase, 50-60 Cycle, FLA 40 Amps
Power: 15 HP Main Motor

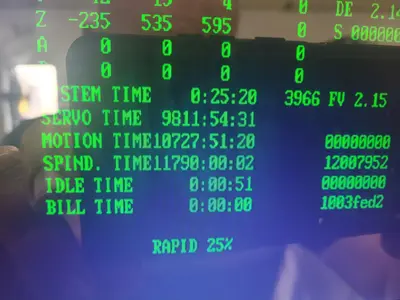

...Hours:
......Servo Time: 9,812
......Motion Time: 10,728
......Spindle Time: 11,790

Features and Specifications:

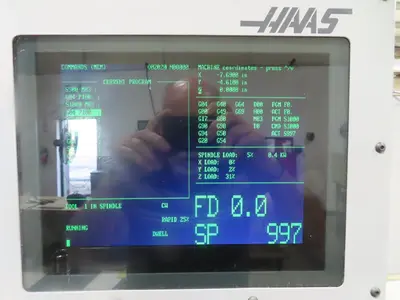

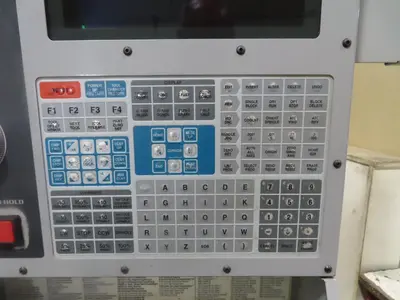

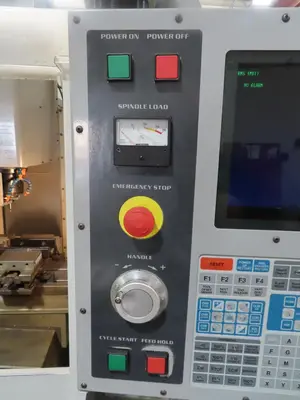

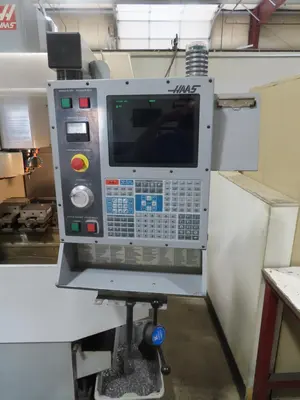

...Haas CNC Control

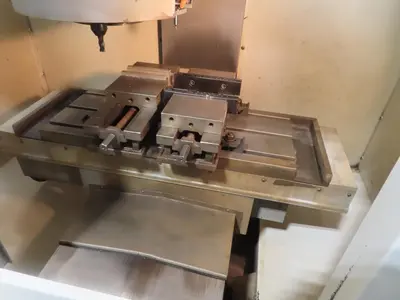

...Table Size: 36" x 12"
...3-Axis: X,Y,Z
...Travels:
......X-Axis: 16"
......Y-Axis: 12"
......Z-Axis: 10"

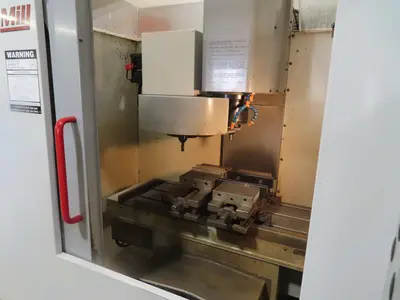

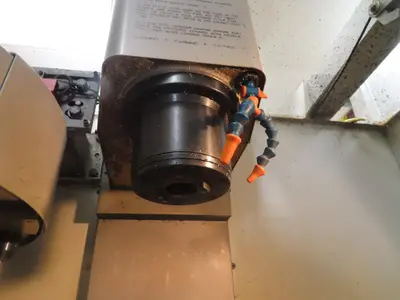

...Spindle Specs:
......Speed: 10,000 RPM

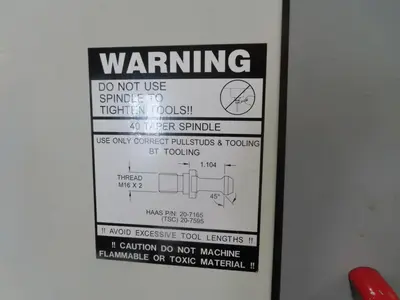

......Taper: 40
......Nose-Table: 4" - 14"
...Feedrates:
......Cutting: 833 IPM
......Rapid Traverse (X,Y,Z): 1200 IPM

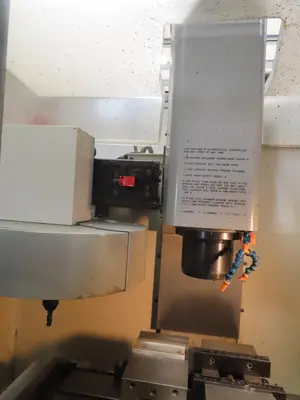

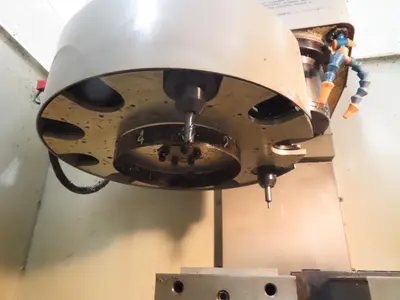

...ATC: 10 Slots, Umbrella Style
...Table Load (max): 500 lbs.
...Coolant Capacity: 40 Gallon

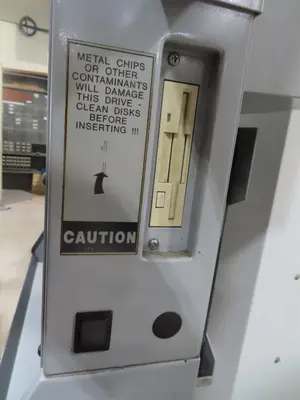

...Serial Port Connection (2)
...No Auger
...Programming and Operation Manual

Machine Dimensions (approx.): 64" x 80" x 100"
Machine Weight (approx.): 4,000 lbs.

Functionality Notes:

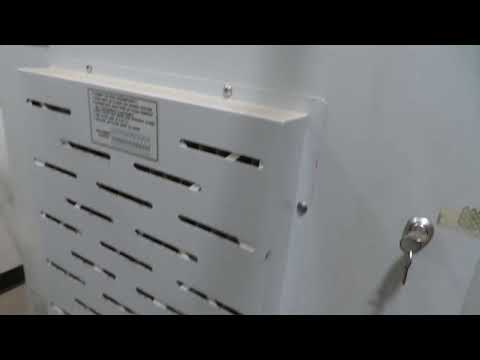

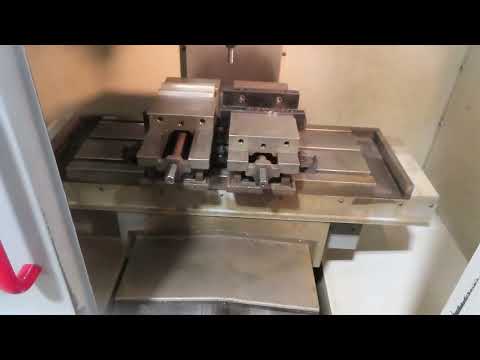

1st-Owner machine. Machine has not been run significantly in the last year other than to power up. Before that time, it was used daily. Only components ever replaced were a tool changer sensor; no major part replacement or maintenance. Always a good runner. See imbedded videos.

BUYER READY TO MOVE!
CALL FOR DETAILS!

Equipment under power; available for inspection.
Buyer responsible for freight logistics and expenses.
Buyer responsible for loading expenses.
MD Equipment Services can quote loading expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase.
