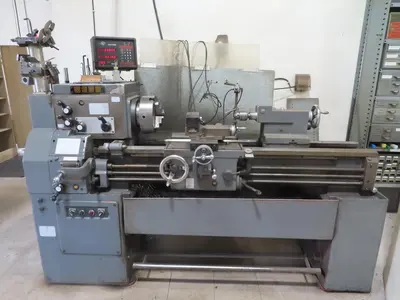

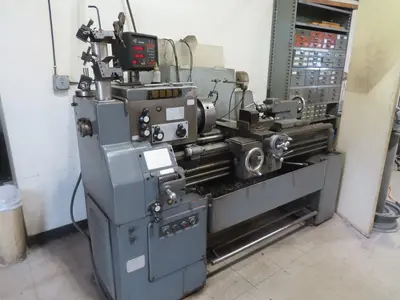

Whacheon Webb Precision Engine Lathe

Description

Precision Engine Lathe
OEM: Whacheon Webb Machine Company Ltd. (Korea)
Date of Manufacture: 4/1981
Model No.: 15 3/4 x 40
Electrics: 220-440 Volt, 3 Phase, 60 Cycle
Main Motor: 5 HP

Features and Specifications:

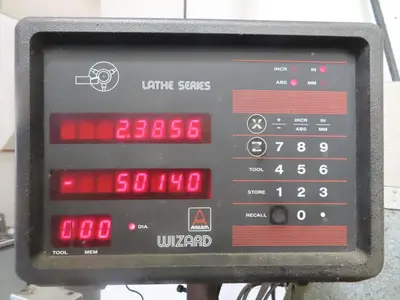

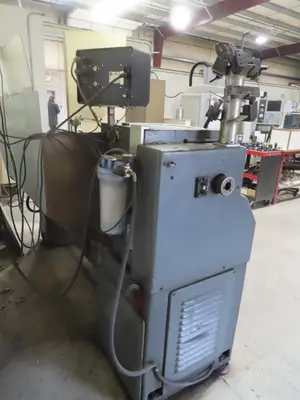

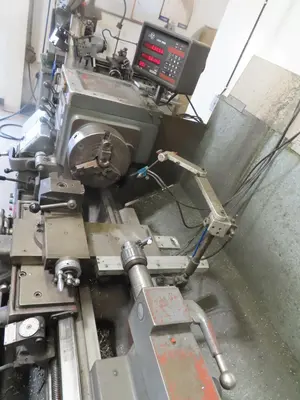

...Controls: Anilam Wizard 2-Axis DRO
...Swings:
......Over Bed: 15-3/4"
......Over X-Slide: 8"
...Distance Between Centers: 40"
...Thru Hole: 2"

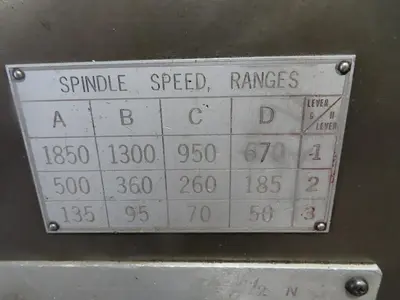

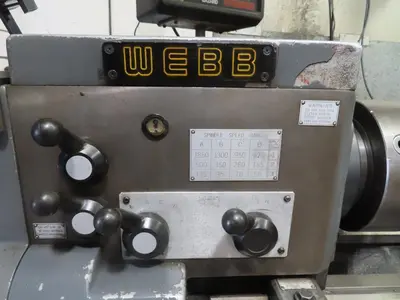

...Spindle Speeds (12): 50 - 1850 RPM

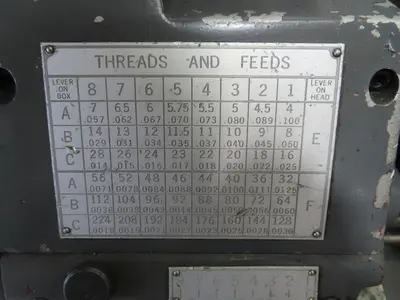

...Threads & Feeds (48):
......Threads/Inch: 4 - 224 TPI
......Inches/Rev: .0018 - .100 IPR

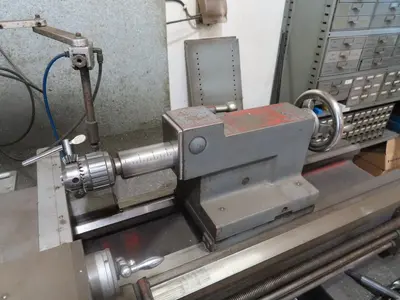

...Tailstock Specs:
......MT #5 Quill Taper
......5" Travel
...Foot Treadle
...Tooling:

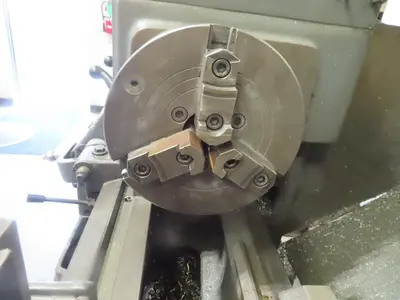

......10" 3-Jaw Chuck

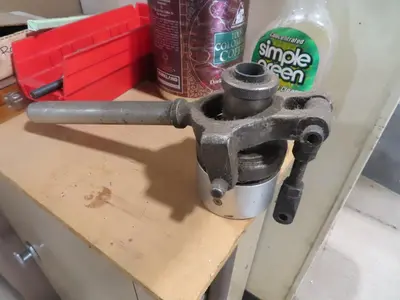

......Collet Closer

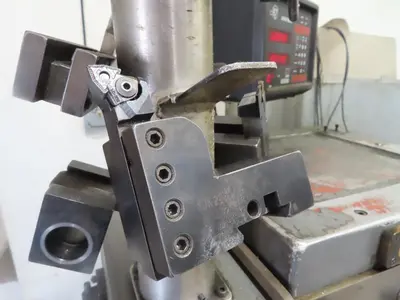

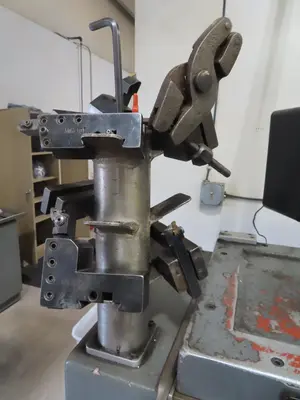

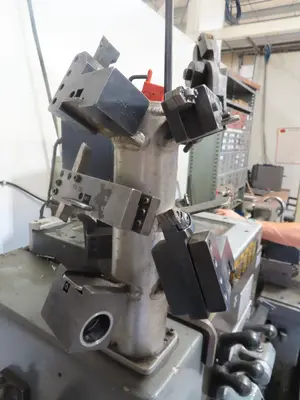

......Holders
......Drill Chuck

Machine Dimensions (approx.): 91" x 48" x 66" Tall
Machine Weight (approx.): 4,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes:

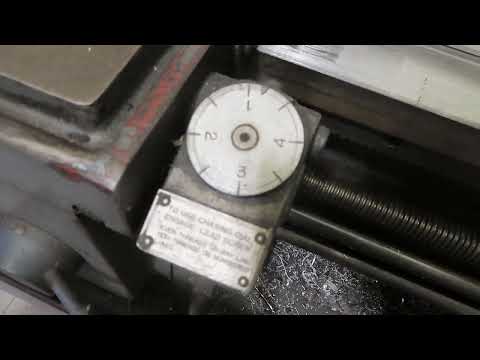

Owner has owned this lathe for at least 30 years, maybe more. May be the original owner. Machine is a good runner. Owner is consolidating shop and selling some equipment that does not get utilized like it did before a year ago. This seller has changed their product line so some equipment is obsolete for their process needs. This lathe comes with some tooling; in good condition. Video imbedded for review.

OWNER READY TO MOVE!
AVAILABLE FOR INSPECTION!

EQUIPMENT LOCATION: Eugene, OR Metro Area

Machine under power; available for inspection.
Buyer responsible for freight logistics and expenses.
Seller can load machine onto Buyer's transportation.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase.
