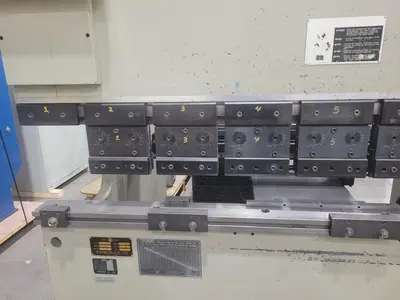

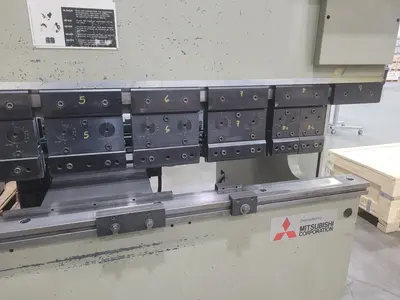

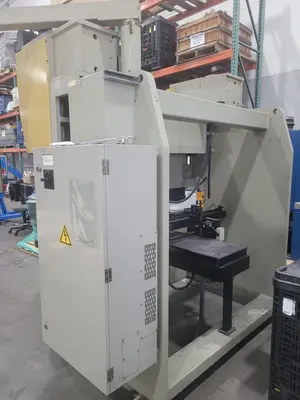

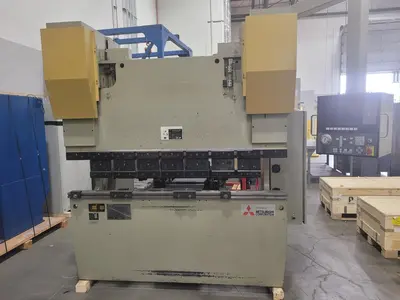

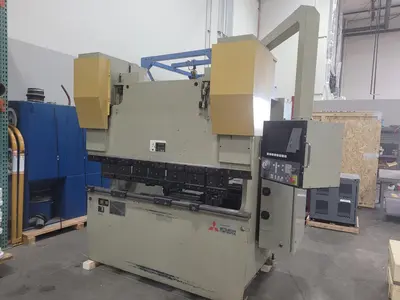

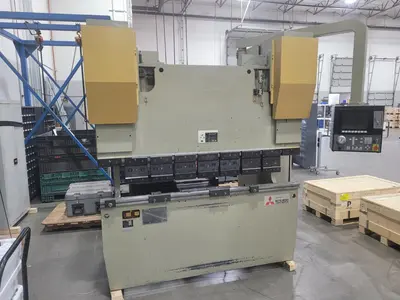

56-Ton Toyokoki Brake Press

Description

CNC Brake Press

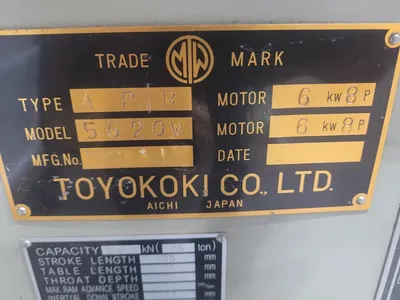

Make: Toyokoki Co. LTD (Japan)
Type: APB
Model No.: 5620W
DOM (circa): 2000 - 2002

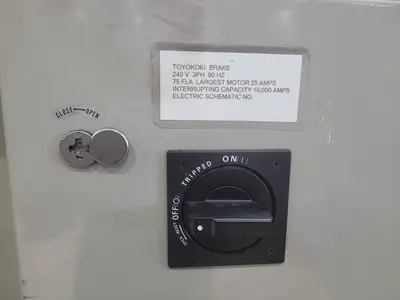

Electrics: 240 Volt, 3 Phase, 60 Cycle, 75 FLA
Motor: 6 kW 8P

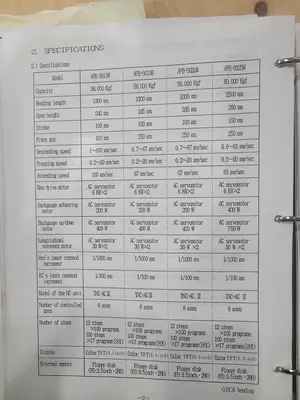

Specifications and Features:

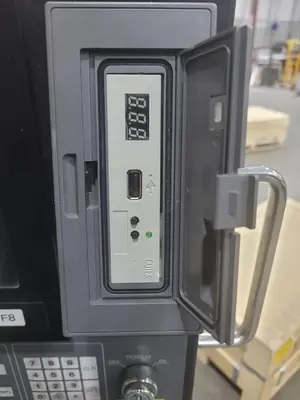

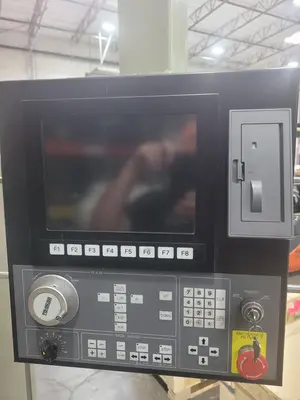

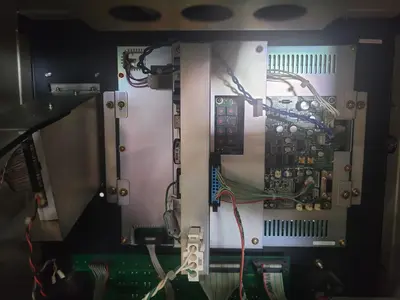

...CNC Control: TNC-AC II
...Controlled Axes: 6
...Capacities:
......Tonnage: 548.8 kN (56 Ton)
...Distance Between Columns: 65" (1651 mm)
...Bending Length: 78.74" (2000 mm)
...Stroke: 3.937" (100 mm)
...Open Height: 9.645" (245 mm)
...Throat Depth: 9.842" (250 mm)
...Speeds:
......Descending: 0.7 - 67 mm/sec
......Pressing: 0.2 - 20 mm/sec
......Ascending: 67 mm/sec
...Max Time to Suspend: 255 msec
...Inertial Down Stroke: 0.4724" (12 mm)
...Axes Controlled by AC Servomotors
...CNC Control Contains "Teaching" Function

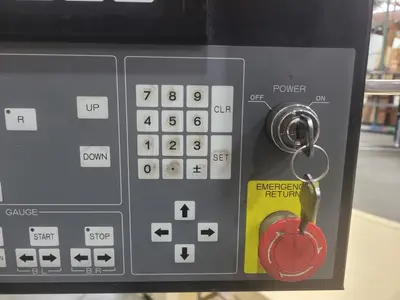

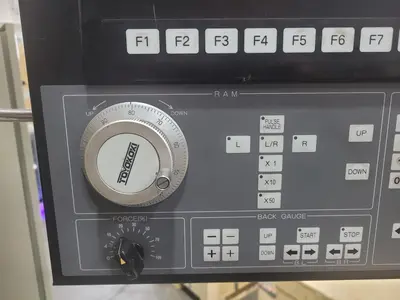

...Pulse Generator Dial for Ram Control

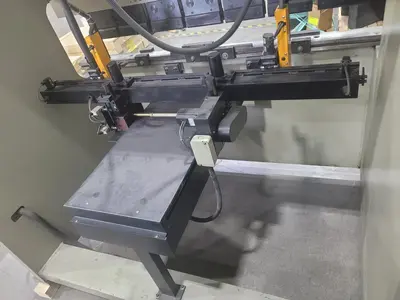

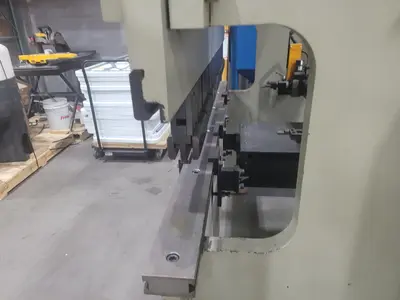

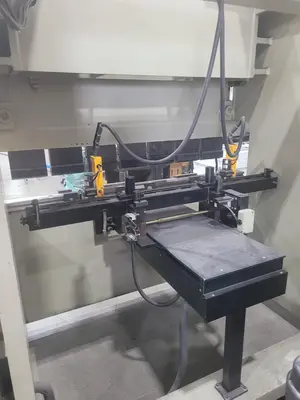

...CNC Controlled Back Gauge

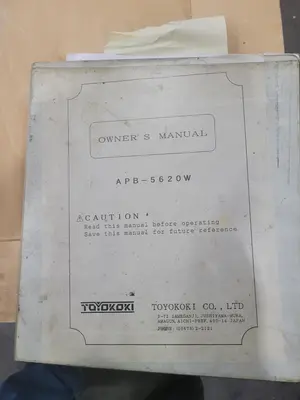

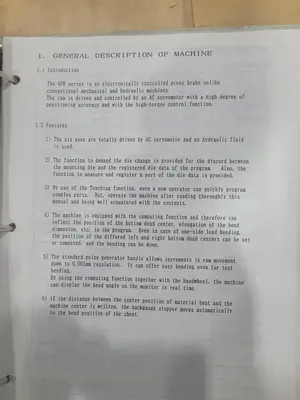

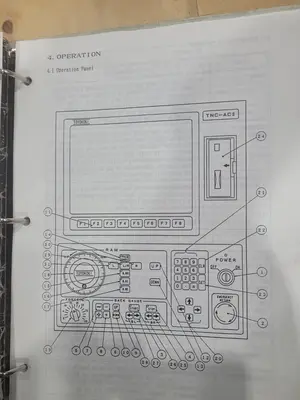

...Manual

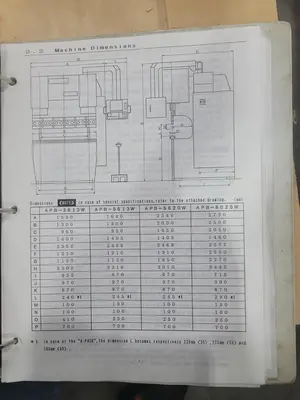

Overall Dimensions (approx.): 92" x 70" x 98"
Weight (approx.): 9,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

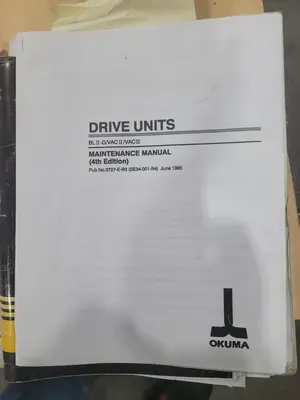

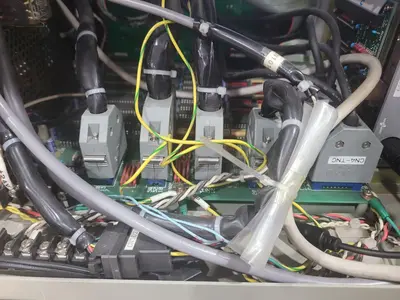

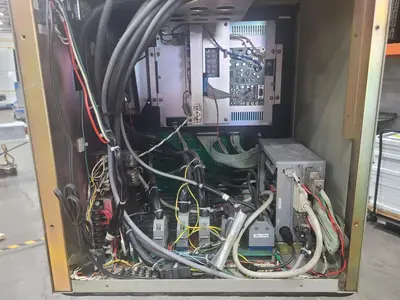

The current owner purchase this machine from a local manufacturer 2 years ago. They used it to make one-off parts for internal projects. The machine failed one day; they diagnosed as needing a drive replacement. After replacing the drive, the machine's controls would only boot up in Japanese.

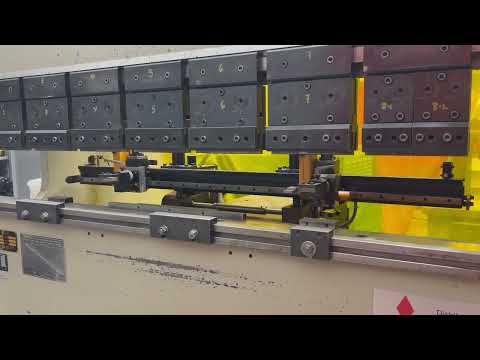

My customer has done everything they know of to get the control system to revert to English so they can program and utilize. They can do some basic manipulations of the ram and back gauge but, outside of that, cannot run the machine due to the language barrier. Imbedded video was taken at the current owner's prior to electrical disconnect on Tuesday, September 9, 2025.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
MD Equipment Services has rigging, loading quote from rigger.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
