Sold

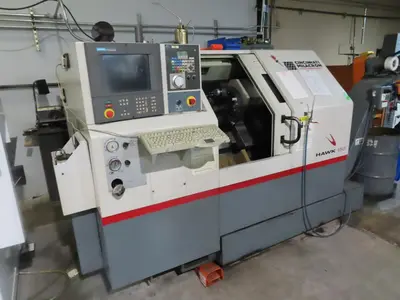

Cincinnati Milacron CNC Lathe w/ Bar Feeder

CNC Turning
Manufacturer:
CINCINNATI MILACRON
Model:
HAWK 150
Year:
1998
Stock #:
2576
Serial #:
7051-A00-98-0268
Country:
United States

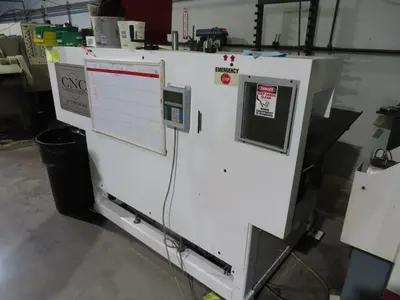

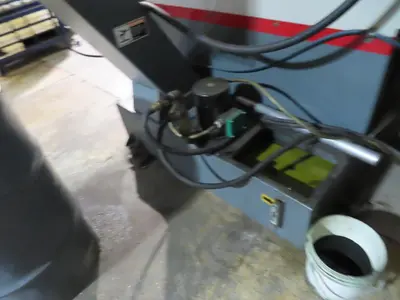

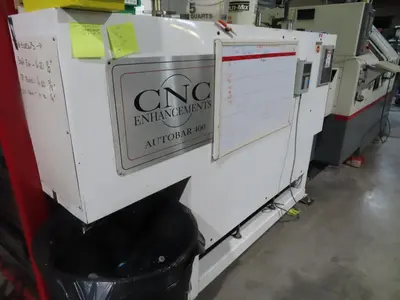

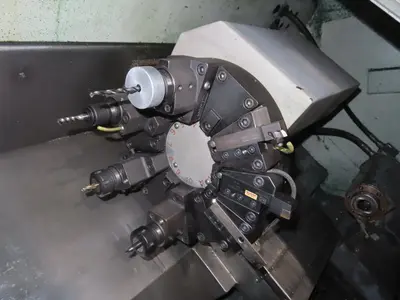

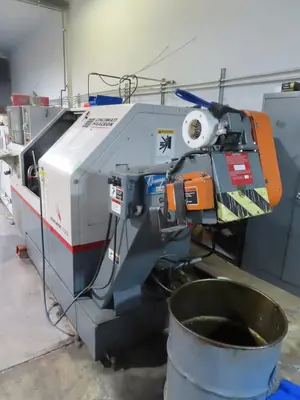

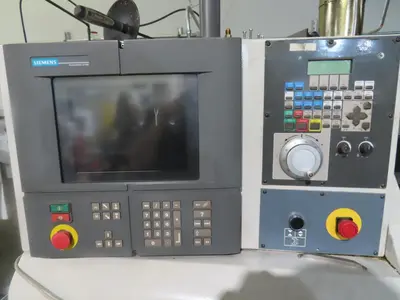

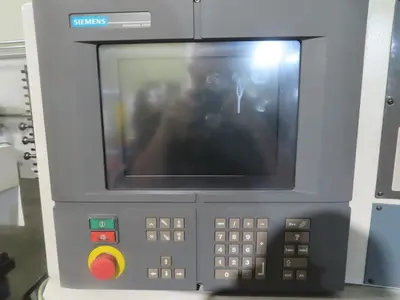

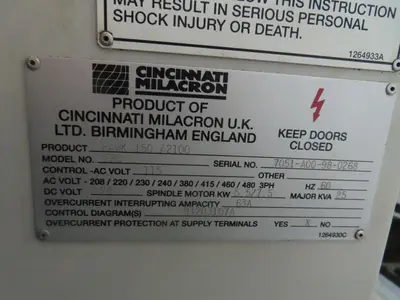

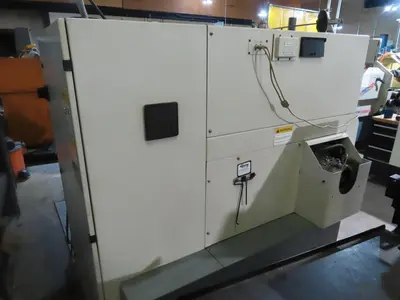

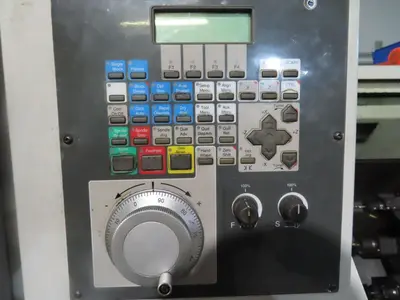

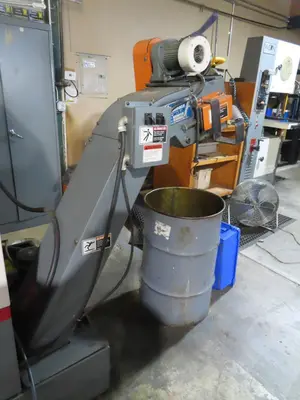

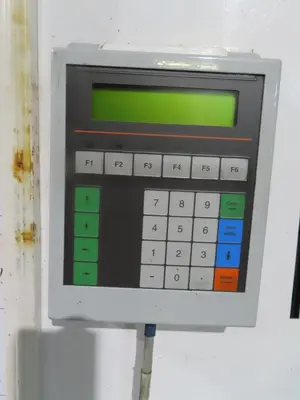

CNC Lathe w/ Scrap Conveyor & Bar Feeder OEM: Cincinnati Milacron U.K. (Birmingham England) Model: Hawk 150 A2100 w/ ERD DOM: 1998 Electrics: 240-460-480 Volt, 60 Cycle, 3 Phase, 63 Amps Main Motor (kW): 5.5/7.5 (10 HP) Features and Specifications: ...CNC Control: Siemens Acramatic 2100 ...Axis: Two (2) ...Spindle Specifications: ......Speed: 5,000 RPM ......Bore: 2" ......Nose: A2-5 ...Travels: ......X-Axis: 8.45" ......Z-Axis: 17.32" ...Swing Over Bed: 15.75" ...Max. Turning Diameter: 10.63" ...Rapid Traverse Rates: ......X-Axis: 630 IPM ......Z-Axis: 1,000 IPM ...Turret: 12 Station ...Tool Probe ...Hydraulic Tailstock ...Coolant System ...Scrap conveyor ...CNC Enhancements Bar Feeder ......Model AB400 ...Tooling: ......6" 3-Jaw Hydraulic Chuck ......Spindle Liners (see pic) Dimensions (approx.): 60" x 38" x 64" (n/i Bar Feeder) Weight (approx.): 10,300 lbs. Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Functionality Notes & History: This machine has been owned by the current owner for the last 6 years. Used to machine a product he designed and manufactured. Machine is in excellent shape. Owner is retiring; business has been closed. He still owns the building but is liquidating the equipment. Equipment is currently under power and available for inspection. I encourage watching of videos as main operator of machine over last several years gives a good demonstration. CALL FOR DETAILS, SCHEDULE INSPECTION WE ARE OPEN TO OFFERS Equipment is under power; available for inspection. Seller agrees to load onto Buyer's transportation. Buyer responsible for freight logistics and expenses. Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.

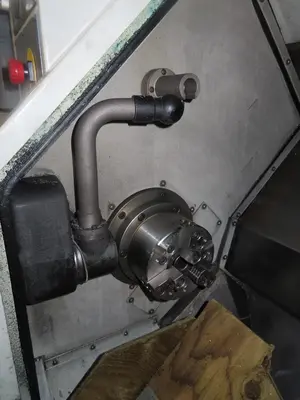

6" 3-Jaw Chuck

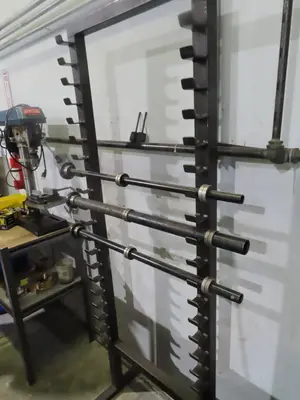

Spindle Liners
