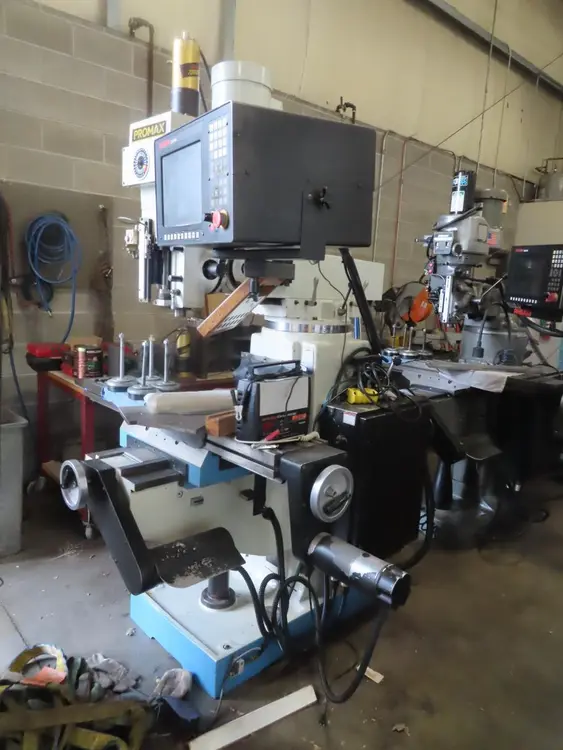

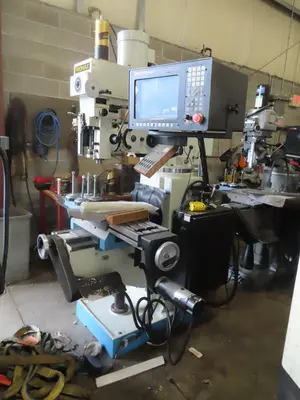

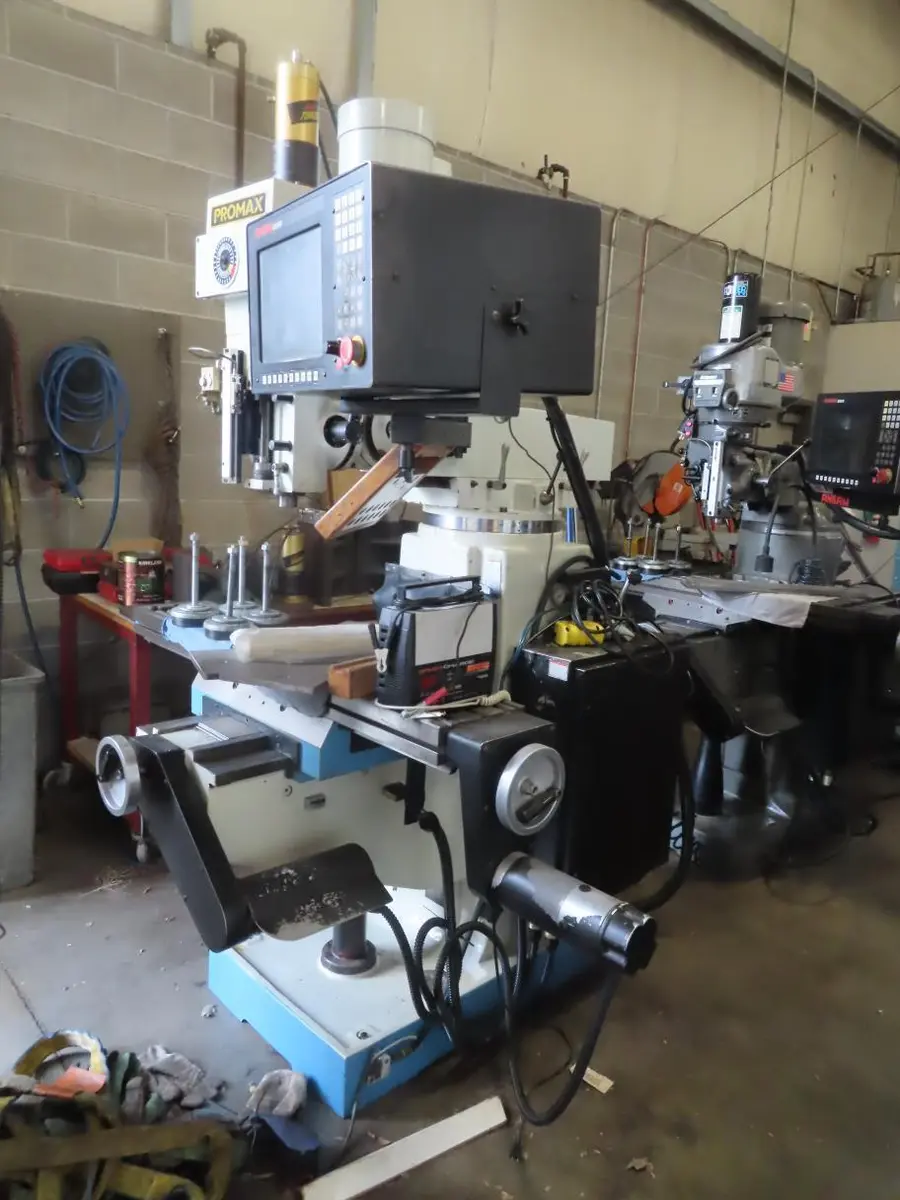

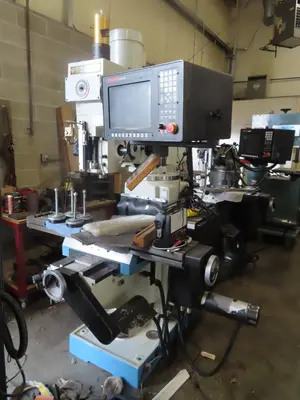

YCI Promax CNC Knee Mill

Description

CNC Knee Mill

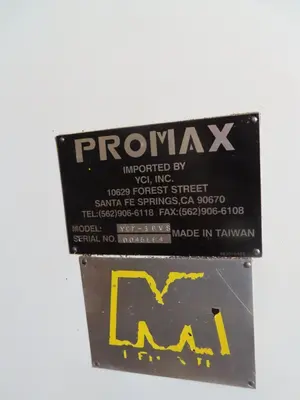

OEM: YCI, Inc. Promax (Taiwan)
Model No.: YCM-16VS
DOM (circa): Early 1980's

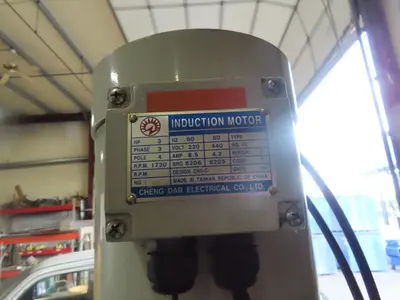

Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 8.5-4.2 Amps
Main Spindle: 3 HP, 1720

Features and Specifications:

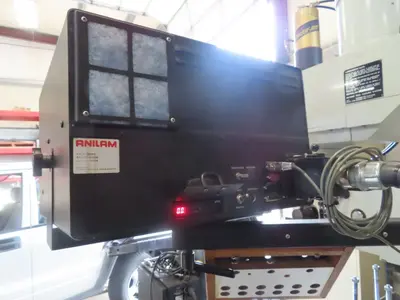

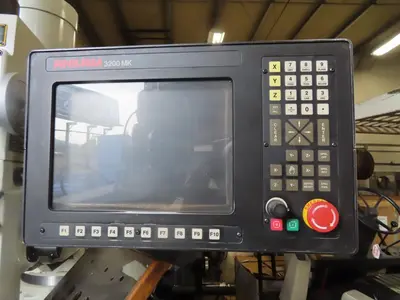

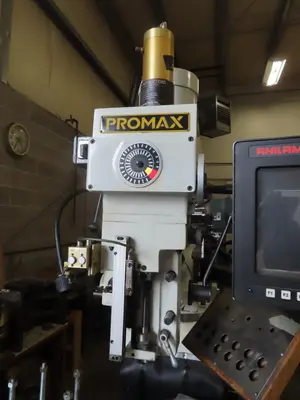

...CNC Controller: Anilam 3200 MK
…Table Size: 49″ x 9″
…Travels (approx.):
…..X-Axis: 36”
…..Y-Axis: 16”
…..Knee: 16”
…..Quill: 5”
…..Ram: 18”
…Variable-Speed Drive: 60-4200 RPM

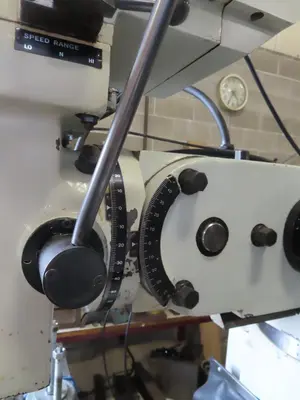

...Speed Range: Low / High

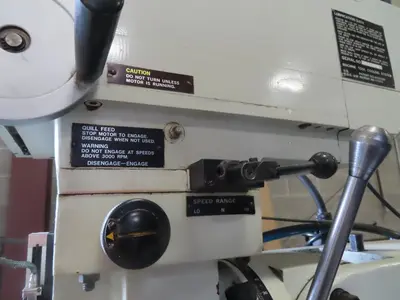

…Quill Feeds (IPR): .0017, .0032, .0053
…Workpiece Load: 750 lbs.
…Spindle Direction Switch
…Spindle Taper: R8
…Knuckle Joint for Head Tilt F-B & L-R

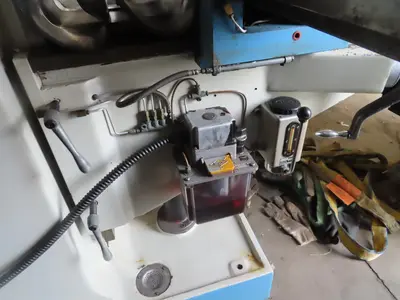

…1-Shot Lube
…Pneumatic Draw Bar
...Customized Spray Mist System

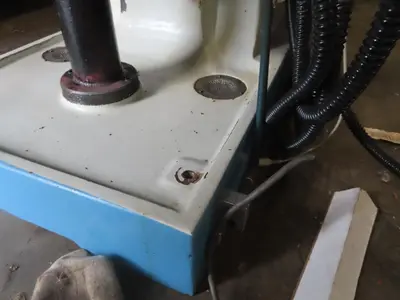

...Sump in Base

Overall Dimensions (approx.): 72” x 68” x 90”
Equipment Weight (approx.): 3,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Machine is 2nd owner unit. Has been in shop for 30 years. Machine is a good runner, Anilam control was refurbished 2-5 years ago. Owner has a new partner in business. Moving away from these machines because have purchased CNC bed mills for new product mix.

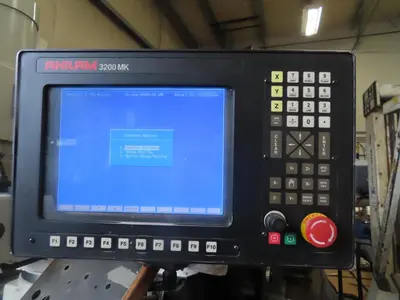

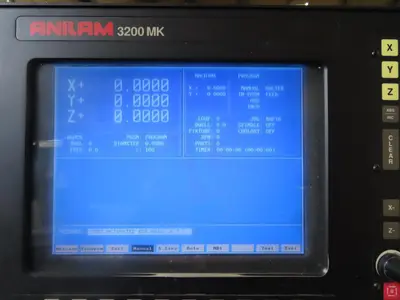

MD Equipment Services (MDES) saw machine put under power during inspection phase. See imbedded pic of controller. Machine can be viewed under power for serious inquiry.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Eugene, OR Metro Area

Equipment is under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MDES can provide delivery options; fee dependent on time and distance.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
