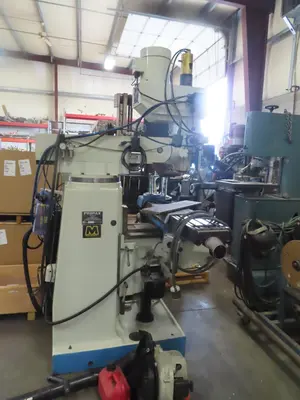

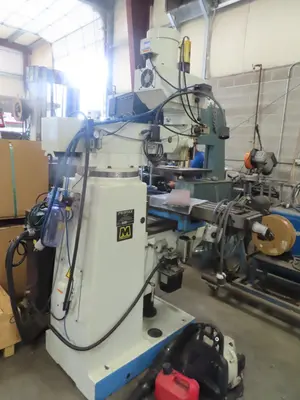

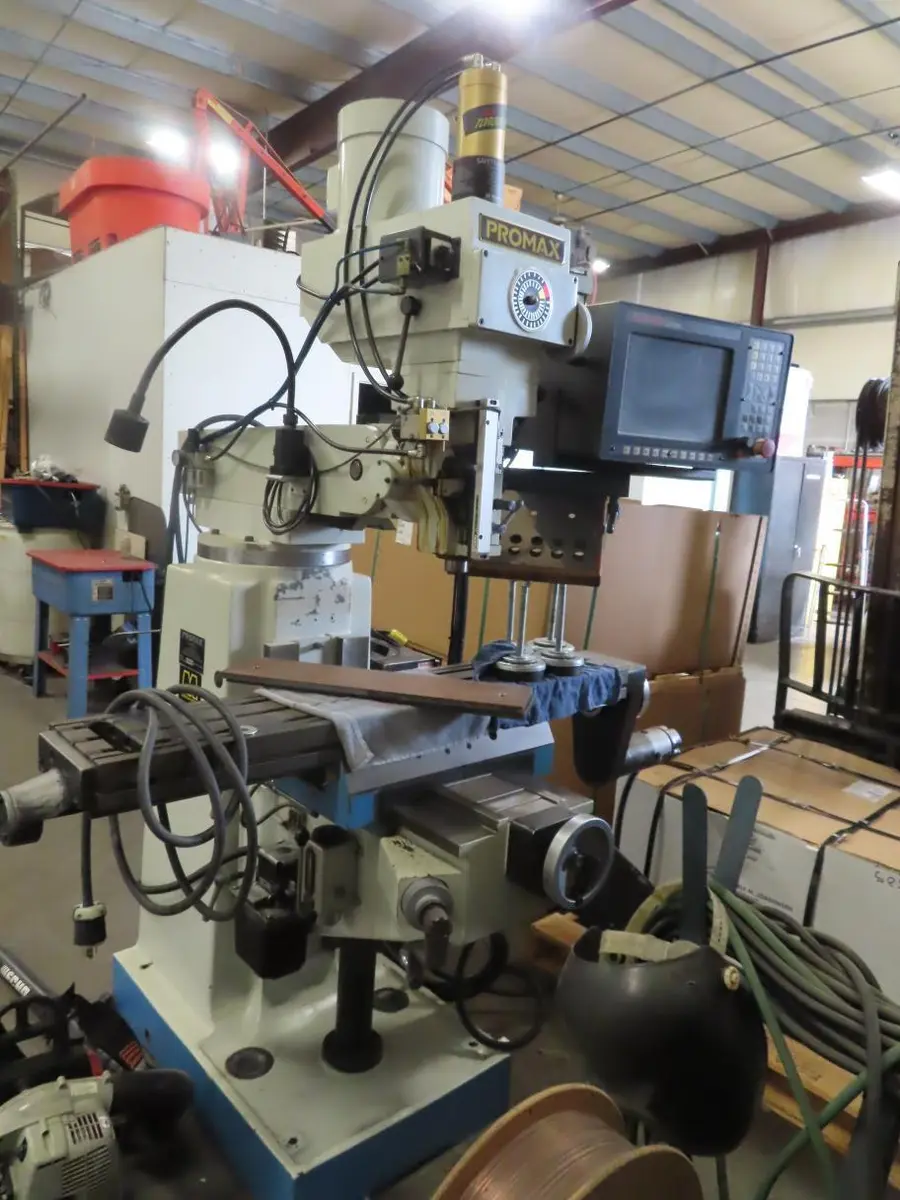

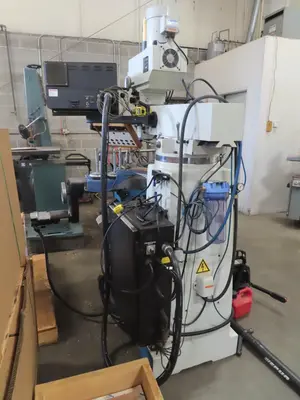

YCI Promax CNC Knee Mill

Description

CNC Knee Mill

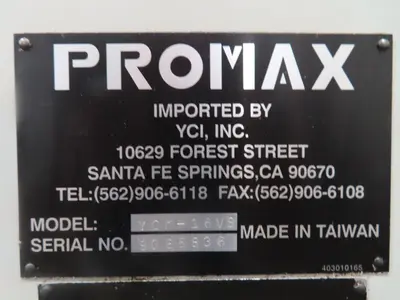

OEM: YCI, Inc. Promax (Taiwan)
Model No.: YCM-16VS
DOM (circa): Early 1980's

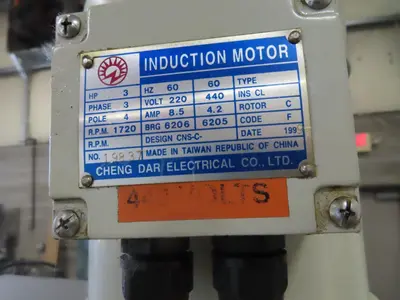

Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 8.5-4.2 Amps

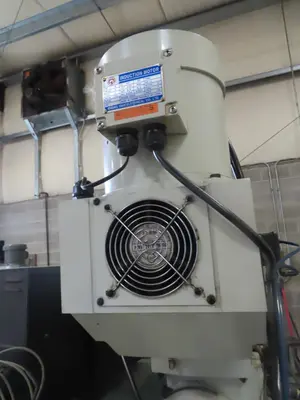

Main Spindle: 3 HP, 1720

Features and Specifications:

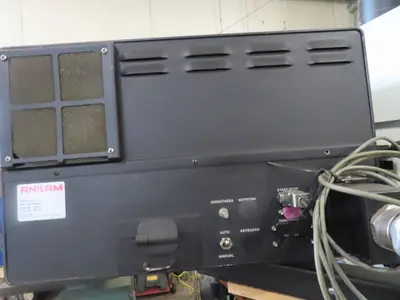

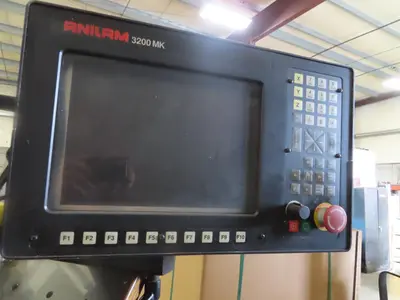

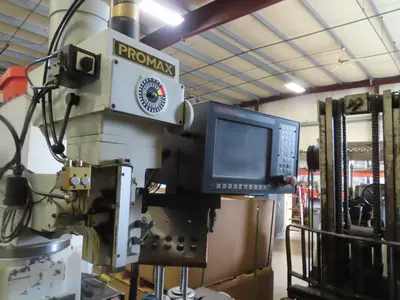

...CNC Controller: Anilam 3200 MK
......Controller is NON-FUNCTIONAL
…Table Size: 49″ x 9″
…Travels (approx.):
…..X-Axis: 36”
…..Y-Axis: 16”
…..Knee: 16”
…..Quill: 5”
…..Ram: 18”
…Variable-Speed Drive: 60-4200 RPM
...Speed Range: Low / High
…Quill Feeds (IPR): .0017, .0032, .0053
…Workpiece Load: 750 lbs.
…Spindle Direction Switch
…Spindle Taper: R8

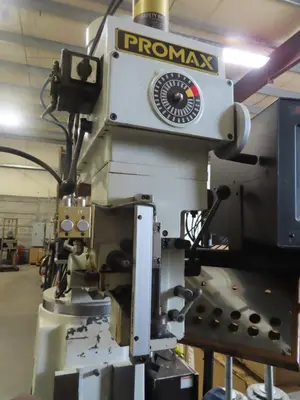

…Knuckle Joint for Head Tilt F-B & L-R

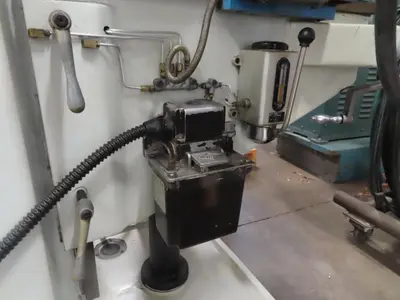

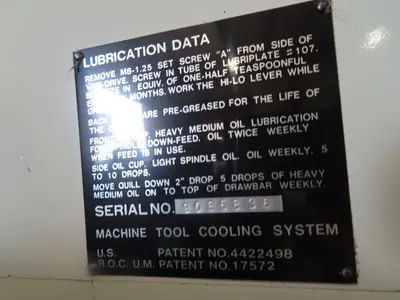

…1-Shot Lube

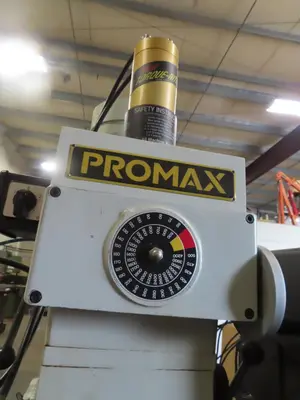

…Pneumatic Draw Bar
...Customized Spray Mist System

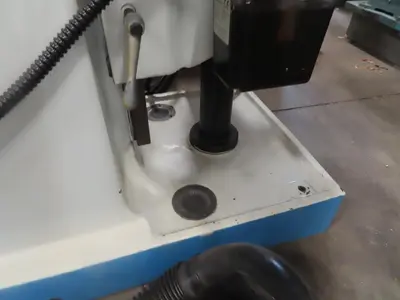

...Sump in Base

Overall Dimensions (approx.): 72” x 68” x 90”
Equipment Weight (approx.): 3,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Machine is 2nd owner unit. Has been in shop for 30 years. Machine was a good runner when Anilam control was functional; Anilam control requires replacement. Seller does not want to replace; moving away from these machines because have purchased CNC bed mills for new product mix.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Eugene, OR Metro Area

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MDES can provide delivery options; fee dependent on time and distance.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
