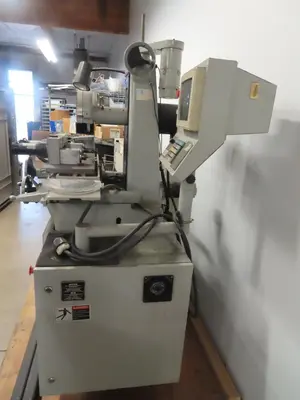

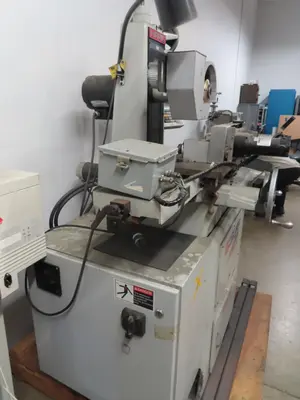

CNC Surface Grinder

Description

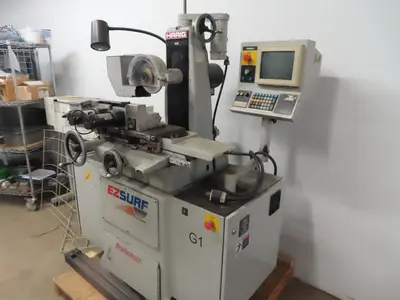

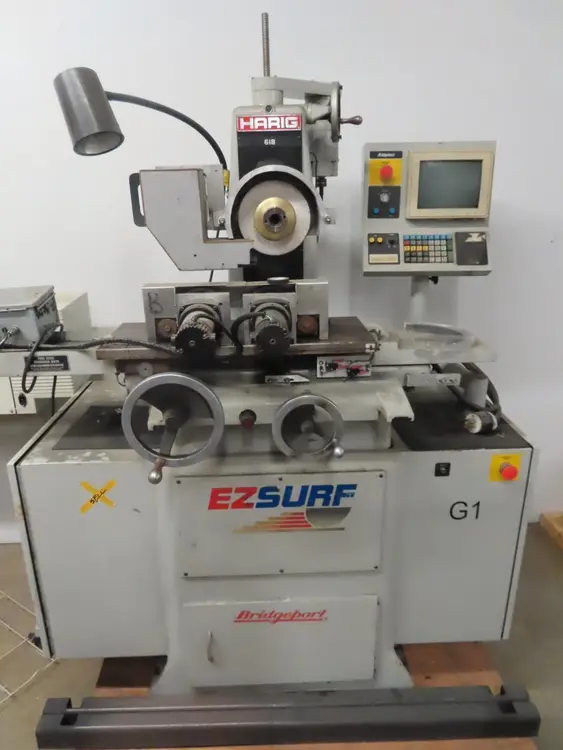

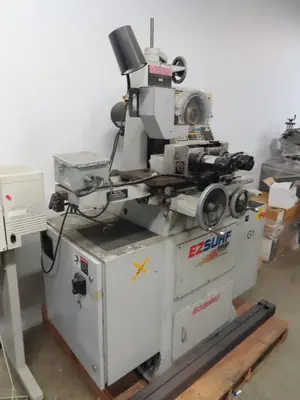

CNC Surface Grinder
Manufacturer: Bridgeport Machines, Inc.

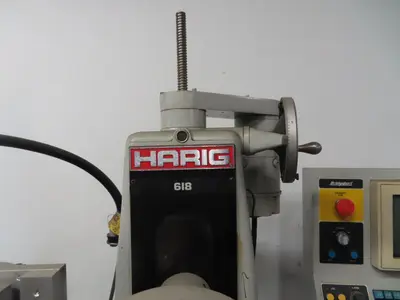

Model: Harig 618 EZ Surf
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 3.6-1.8 Amps

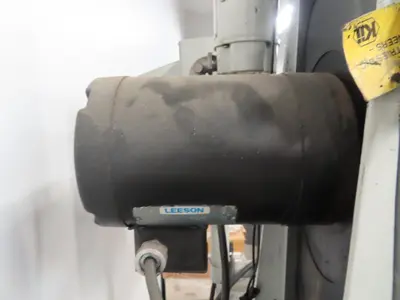

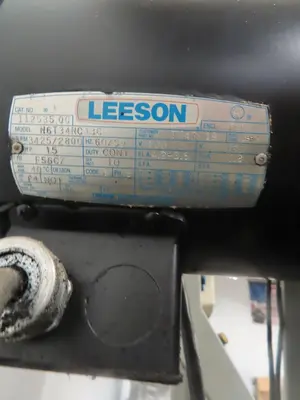

Main Motor: 1.5 HP, 3425 RPM

Features and Specifications:

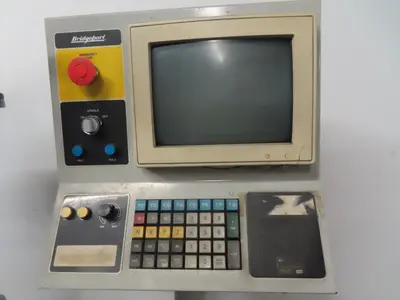

...PC-Based EZ-Surf Control
...Capacity: 6" x 18" Table
...Travels:
......Longitudinal X-Axis: 20"
......Z-Axis Cross-Travel: 6.75"
......Y-Axis Vertical: 12" (Under Wheel)
...Spindle Speed: 3425 RPM

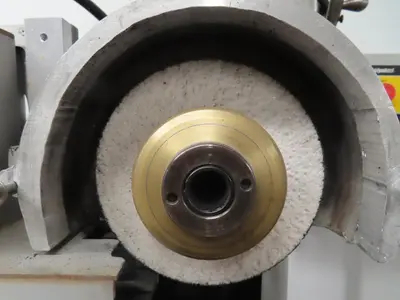

...Wheel Capacity: 8" x 1.25" Width
...Above Floor: 42.25"
...Feeds:
......X-Axis: 3 FPM - 20 FPM
......Rapid Traverse: 100 IPM
...Min Feed Increment: 0.0001"

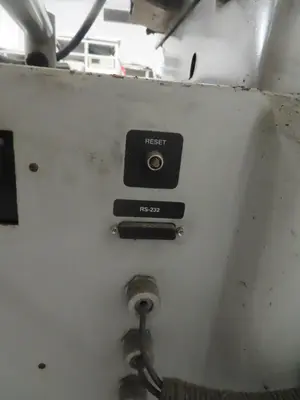

...RS232

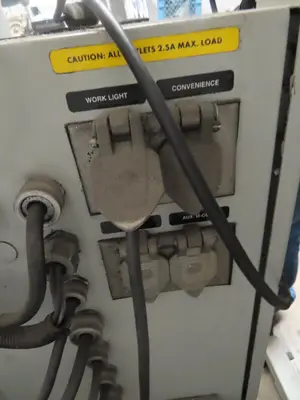

...Work Light Connection

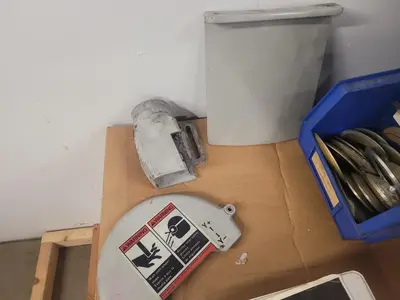

...Extras (see pics):

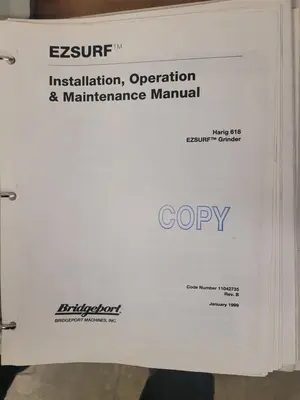

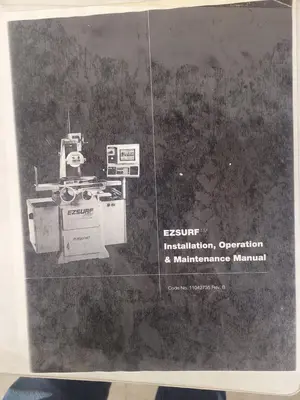

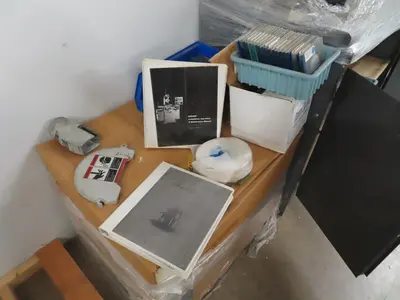

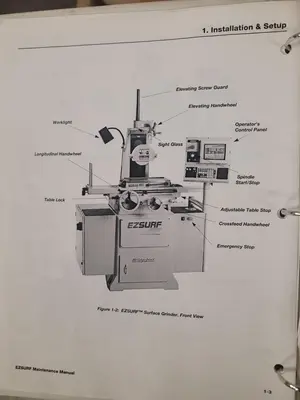

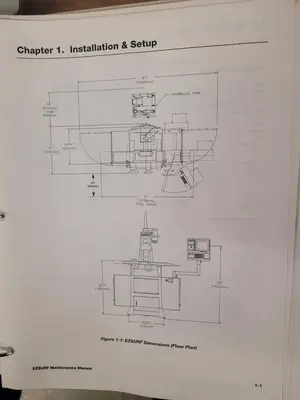

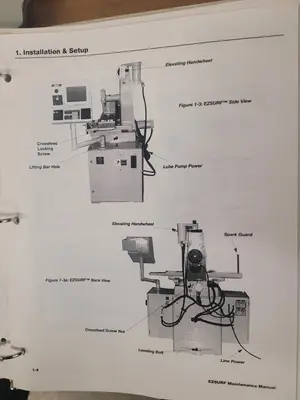

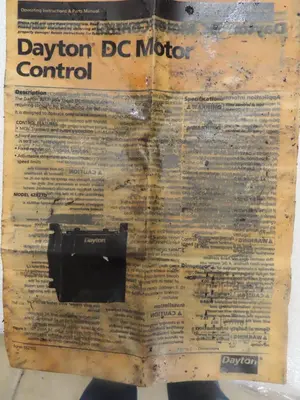

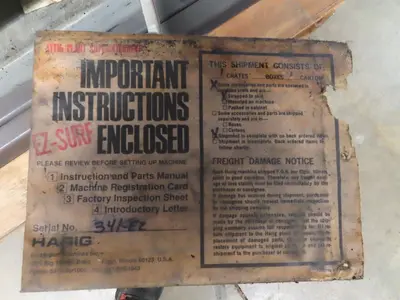

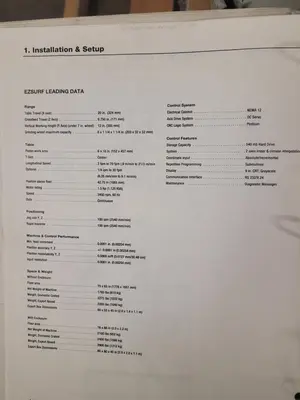

......Manuals

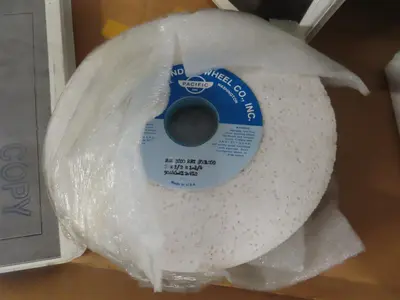

......7" Wheels

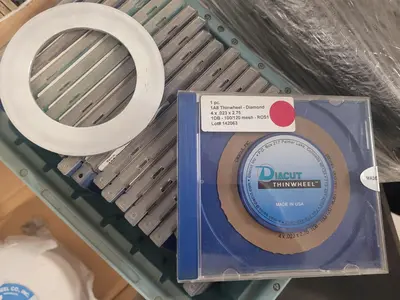

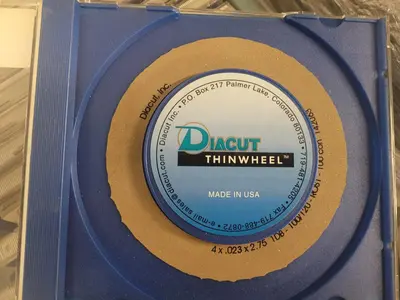

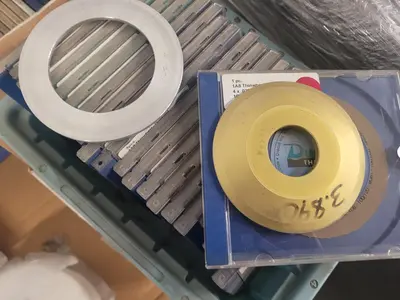

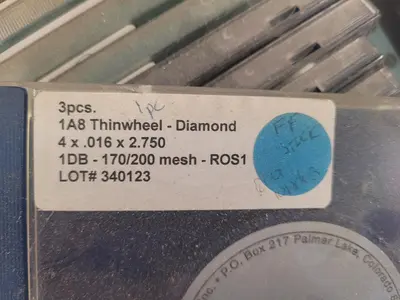

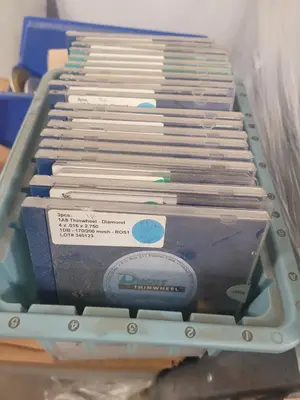

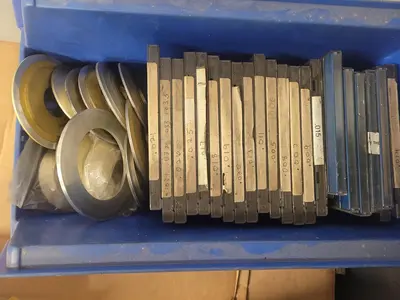

......Diamond Thinwheels

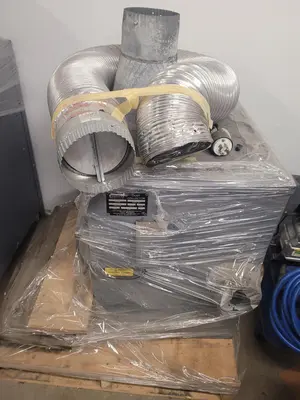

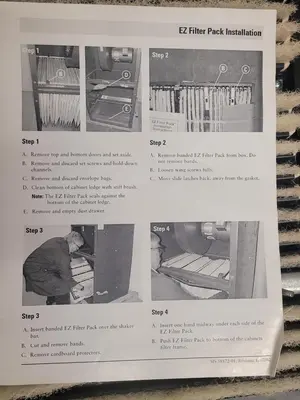

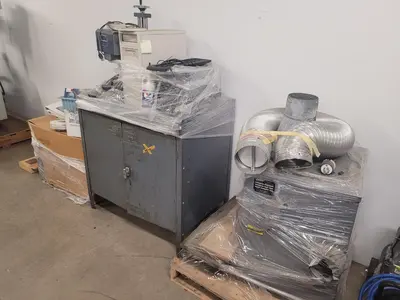

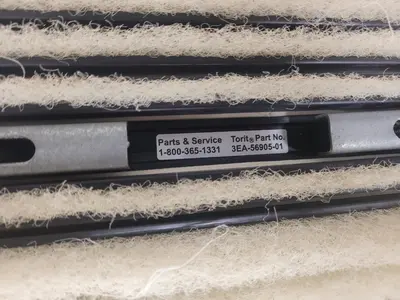

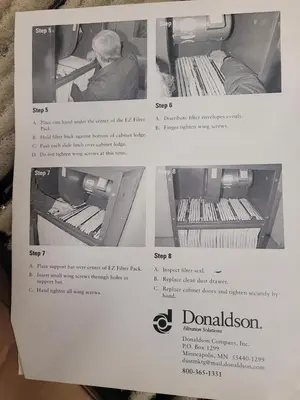

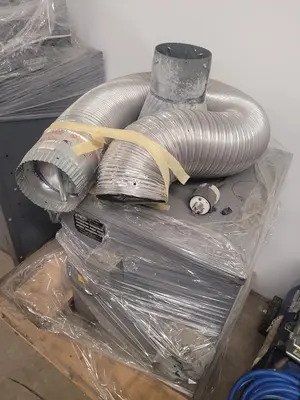

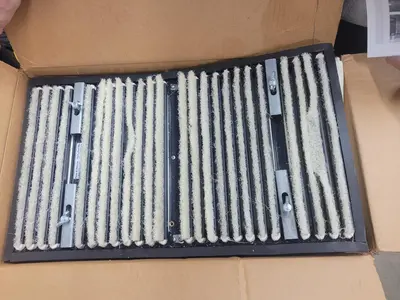

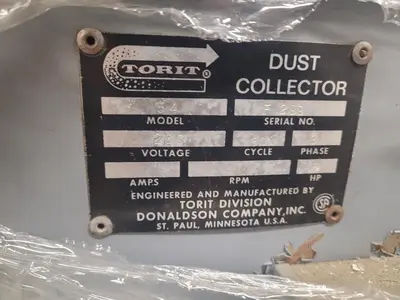

...Torit Dust Collector (see pics)
......Model: 54
......Serial No.: F299

Equipment Dimensions (approx.): 54" x 48" x x72"
Equipment Weight (approx.): 1,285 lbs.
Torit Dust Collector Dimensions (approx.): 36" x 36" x 48"

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

The owner purchased this unit 8 years ago along with a pin marking machine that he used for prototype testing for about 2 years. He has not run the unit in 6 years. It has been sitting in the shop where initially installed. Comes with a large inventory of thinwheel diamond wheels he was using for his prototyping work; extra 7" wheels; Torit dust collector; manuals

MD Equipment Services did not put this unit under power. Selling as is, where is. The owner needs it moved within the next 2-1/2 weeks as he is moving his entire shop to the East Coast on Thanksgiving weekend. Open to offers.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Beaverton, OR

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
