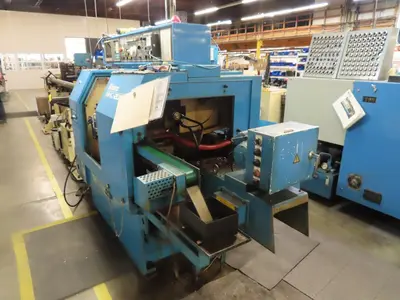

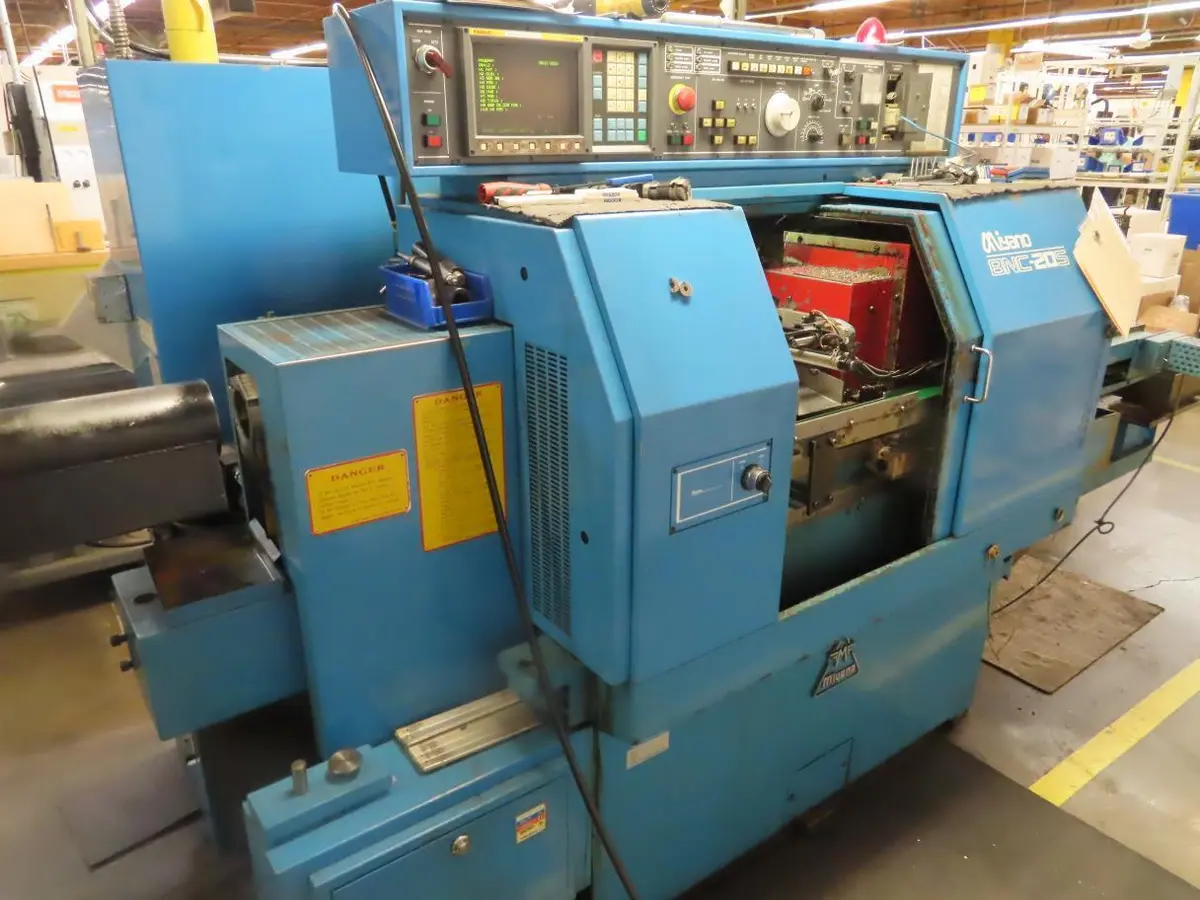

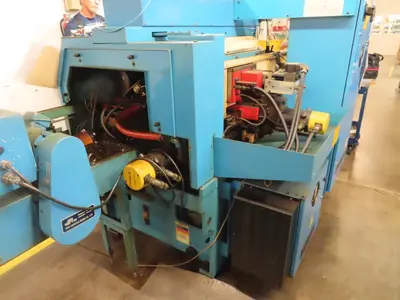

Miyano BNC-20S CNC Lathe

Description

CNC Lathe
Manufacturer: Miyano Machinery Japan, Inc.
Model: BNC-20S
Year: 1990's Vintage
Electrics: 220 Volt, 3 Phase, 60 Cycle, 5 HP
Main Motor: 18 KVA (24 HP)

Features and Specifications:

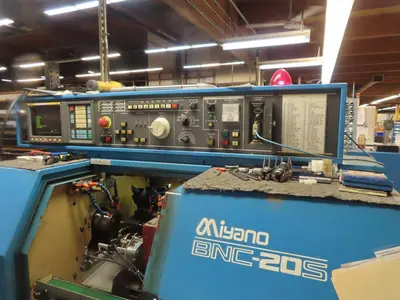

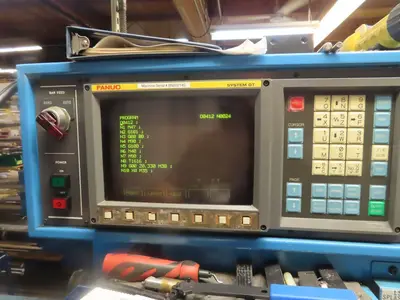

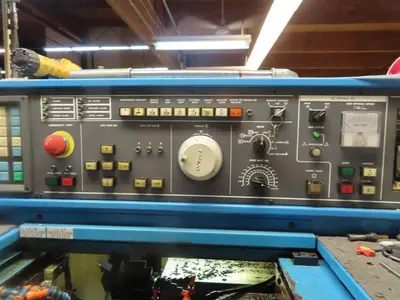

...CNC Controls: Fanuc System OT
...Bar Capacity Range: 1/4" - 13/16"
...Chuck Size: 2"
...Max Work Length: 4"
...Spindle Specs:
......Main Spindle Type: Hardinge 5C
......Nose OD: 3.346"Ø
......Speed: 6500 RPM

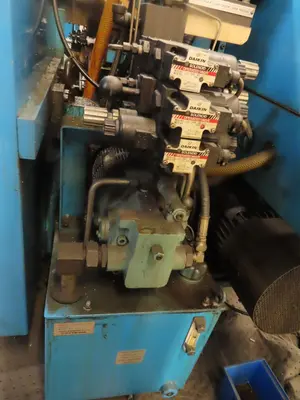

......Chucking System: Hydraulic Rotary Cylinder
......Spindle Drive: 5HP (variable)

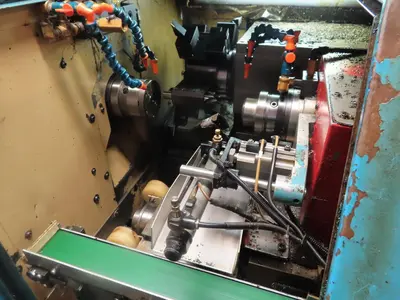

...Main Turret Slide: 2-Axis Controlled
...Tooling Stations: 6
...Max Slide Stroke:
......X-Axis: 4"
......Z-Axis: 4-3/4"
...Rapid Feedrates:
......X,Z-Axis: 394 IPM
... Tank Capacities:
......Hydraulic: 10 Gallons
......Lubricating: .26 Gallons
......Coolant: 34 Gallons

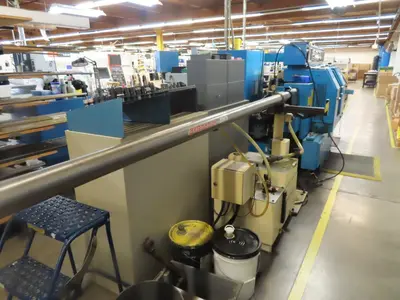

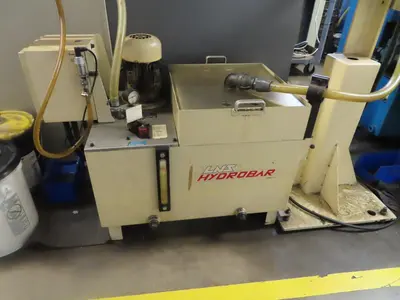

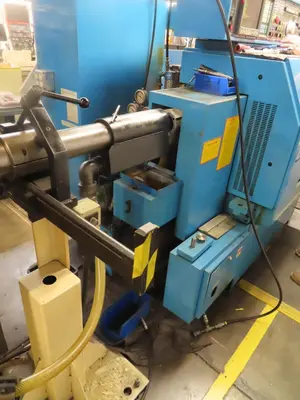

...Bar Feeder

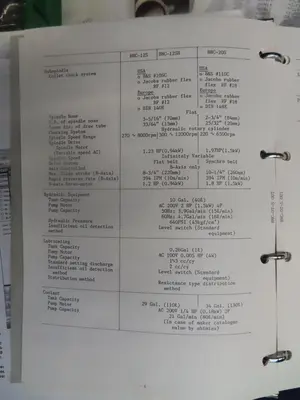

...Manuals

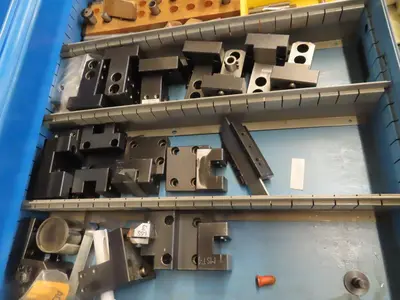

...Misc. Tooling

CNC Equipment Dimensions (approx.): 62" x 85" x 72"
Equipment Weight (approx.): 6,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine has been moved to storage since pictures were taken in June 2025. Large company who is selling equipment in one of their machine shops as normal course of business. This machine has been well-maintained by owner. Was used in a prototype capacity.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is not under power; available for inspection in storage.
Buyer responsible for loading fee on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote rigging and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
