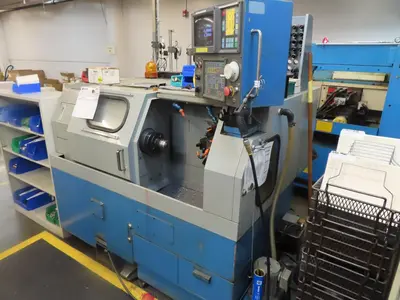

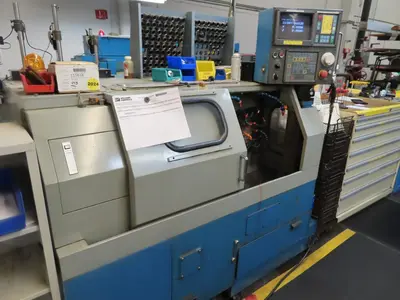

Takamaz EX-10 CNC Lathe

Description

CNC Engine Lathe

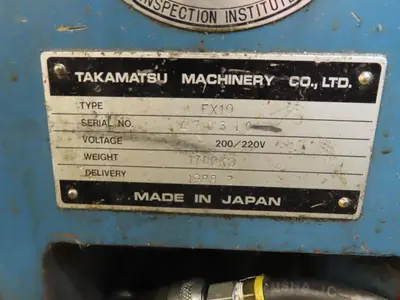

Manufacturer: Takamatsu Machinery Company Ltd. (Japan)
Model: Takamaz EX-10
DOM: 1988

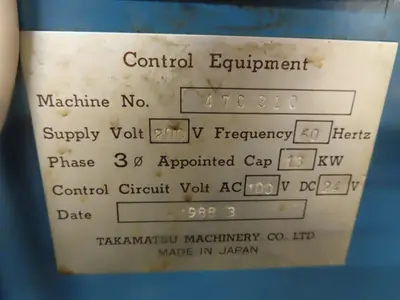

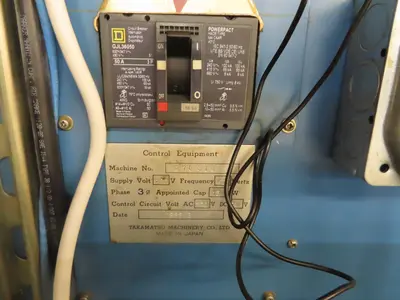

Electrics: 220 Volts, 3 Phase, 60 Cycle
Main Motor: 13 kW (17.5 HP)

Features and Specifications:
...Controls: Fanuc Series 0/00-TB
...Max Turning Diameter: 9.45"
...Max Turning Length: 11.8"
...Chuck Size: 6"
...Spindle Specs:
......Bore Size: 1.4"
......Speed: 4,500 RPM
...Travels:
......Z-Axis (longitudinal): 15.75"
......X-Axis (cross-slide): 7.48"

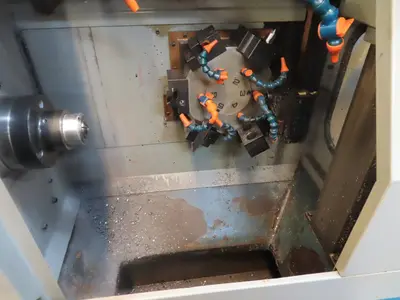

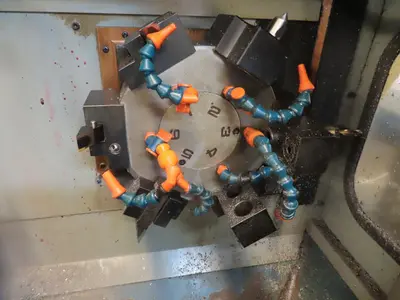

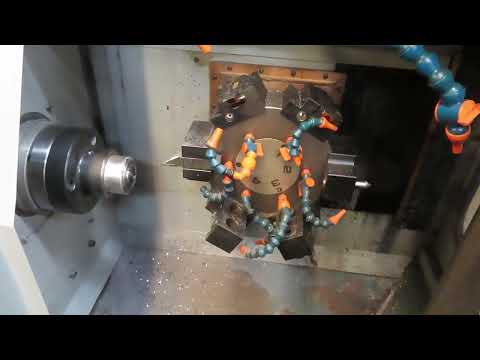

...6-Station Turret

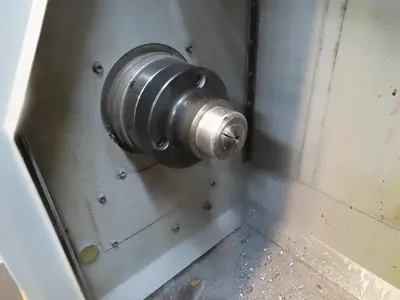

...Hydraulic Collet Chuck

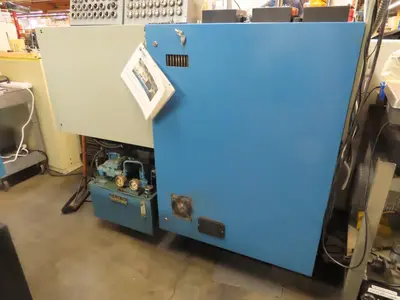

...Daikin Hydraulic Unit

Dimensions (approx.): 112" x 67" x 80"
Weight (approx.): 7,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine has been moved to storage since pictures were taken in June 2025. Large company who is selling equipment in one of their machine shops as normal course of business. This machine has been well-maintained by owner. Was used in a prototype capacity.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is not under power; available for inspection in storage.
Buyer responsible for loading fee on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote rigging and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
