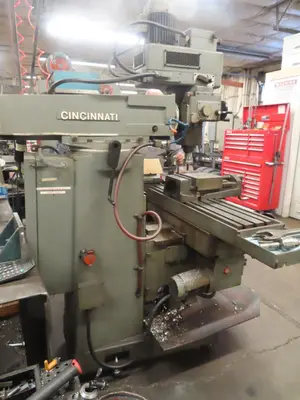

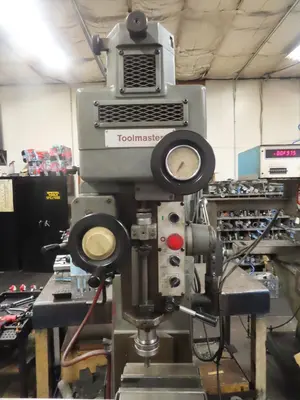

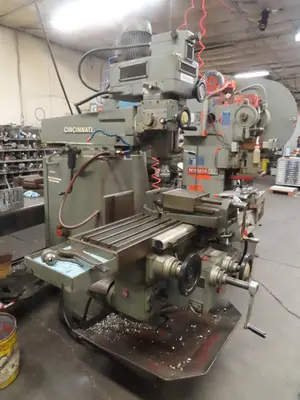

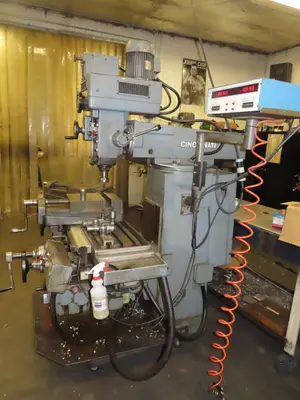

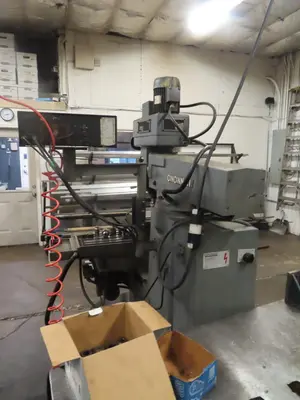

Cincinnati Milacron MT Toolmaster Vertical Mill

Description

Vertical Milling Machine
Manufacturer: Cincinnati Milacron
Model: MT Tool Master

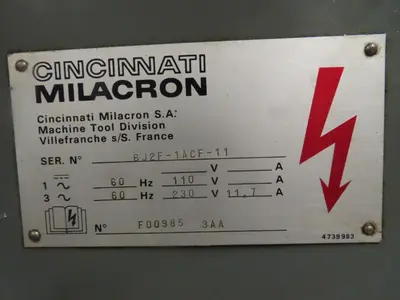

Serial No.: 6J2F-1ACF-11

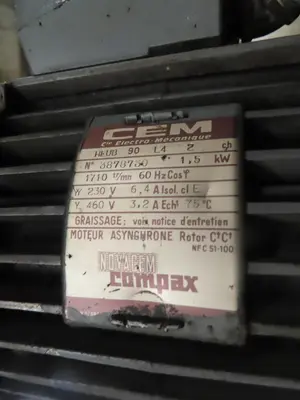

Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 6.4-3.2 Amps
Main Motor: 2 HP

Specifications & Features:

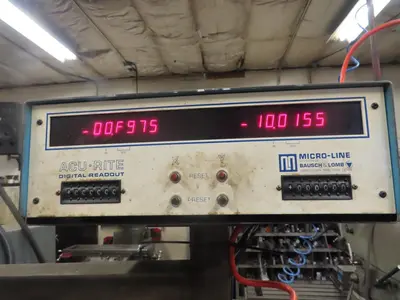

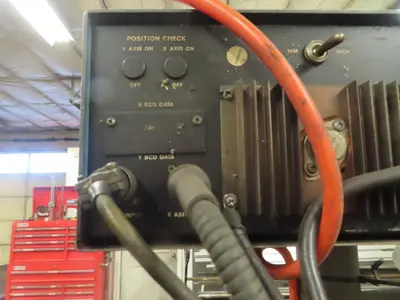

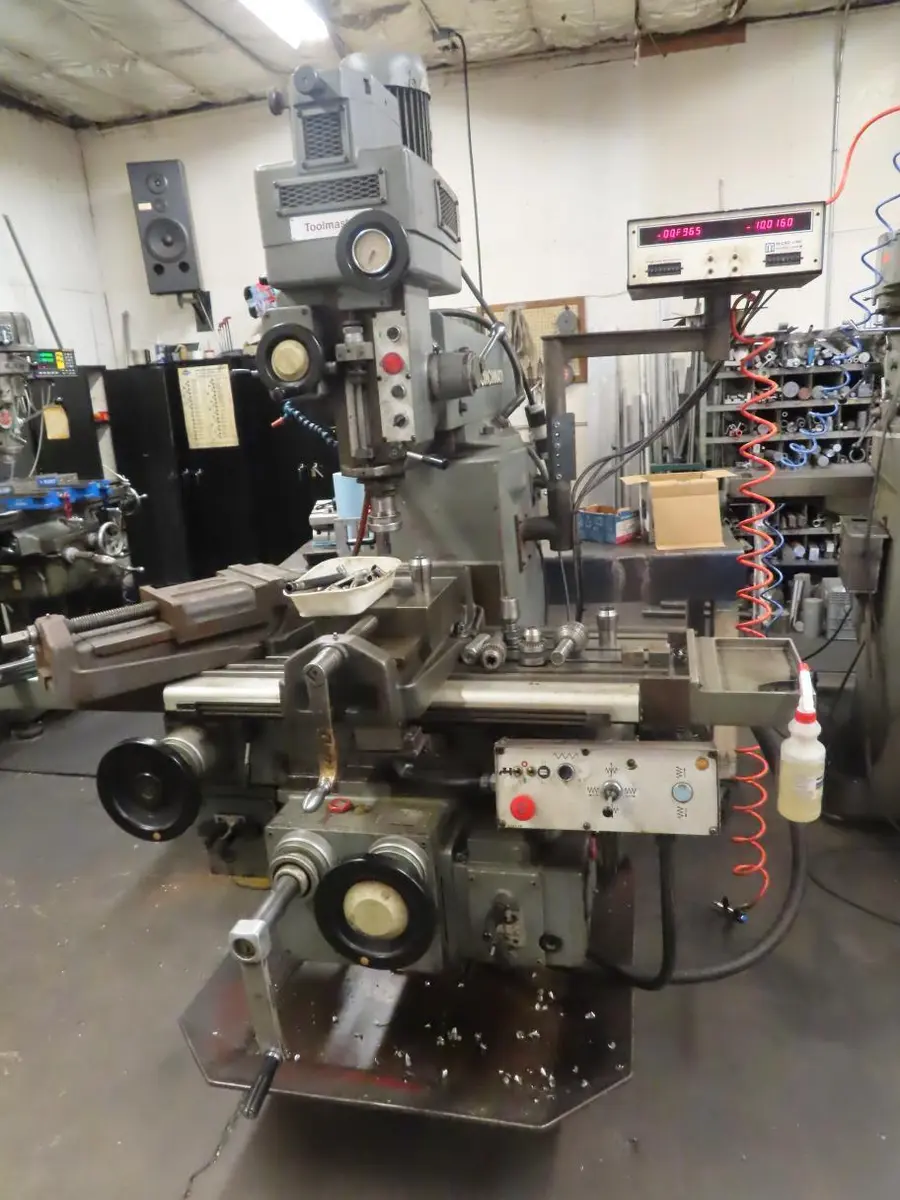

...2-Axis DRO Controller
...Table Size:
......Working: 45″ x 12″
......Overall: 50" x 12"
...Travels (2-Axis Mechanical Drive)
......X-Axis (longitudinal): 30"
......Y-Axis (cross): 8.5"
......Knee: 17"
......Quill: 5"
......Overarm Extension: 18.5"

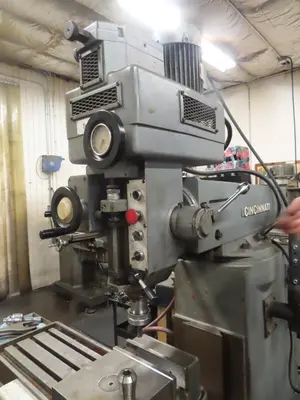

...Spindle Specs:
......Speed: 80-3600 RPM (2-Speed)
......Taper: 40
...Head Tilt (L-R): 45°

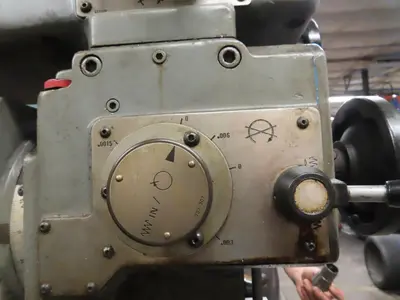

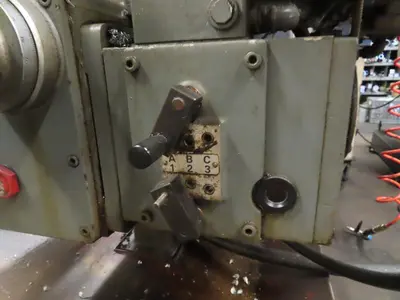

...Quill Feeds (3): .0015, .003, .006 IPR

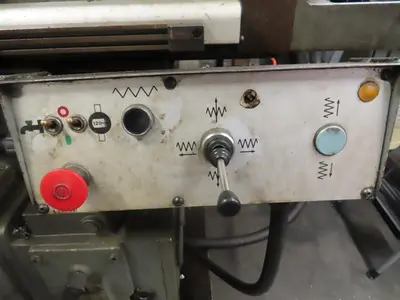

...Traverse Rates (IPM):
......Standard (9): 3/4" - 13-1/2"
......Rapid (1): 108
...Spindle Taper: 40

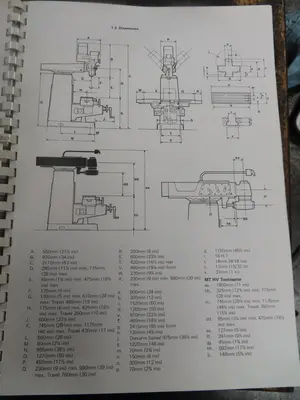

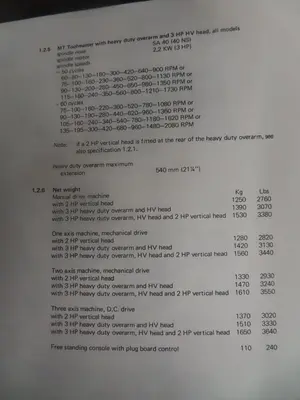

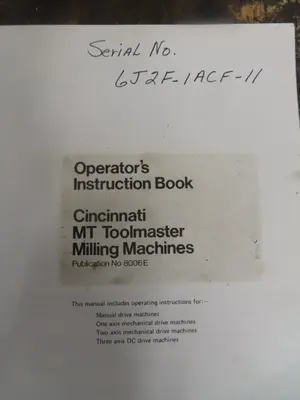

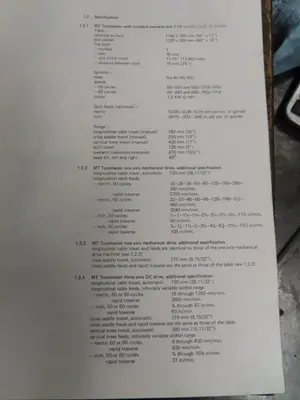

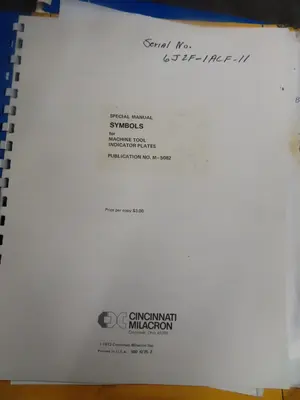

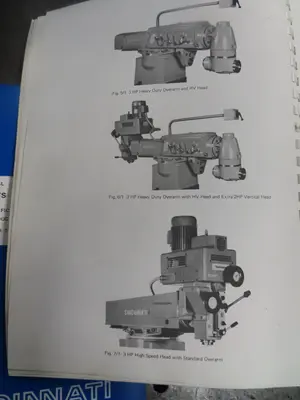

...Manuals

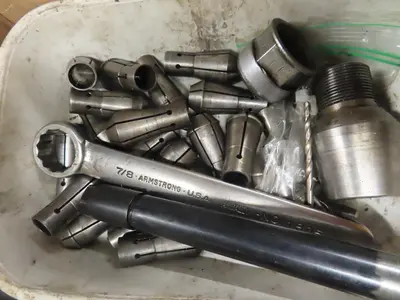

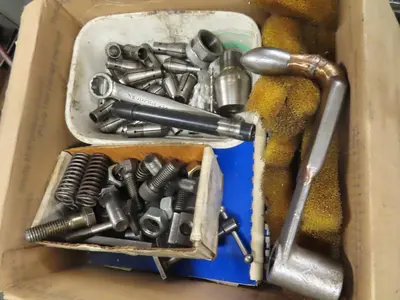

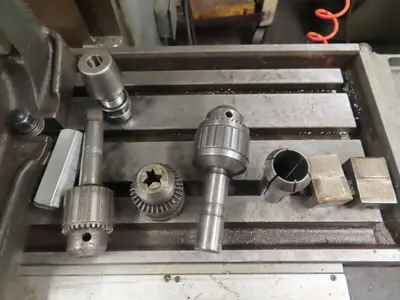

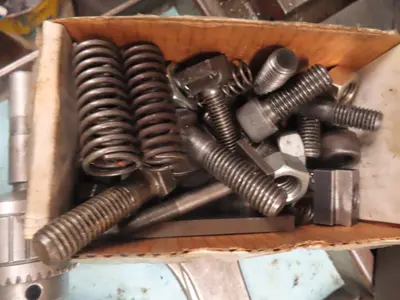

...Tooling (see pics):

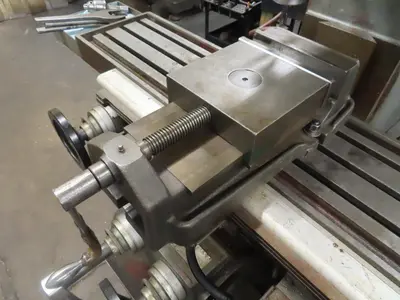

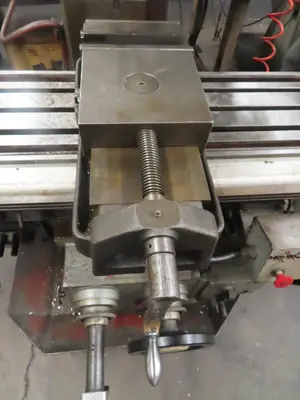

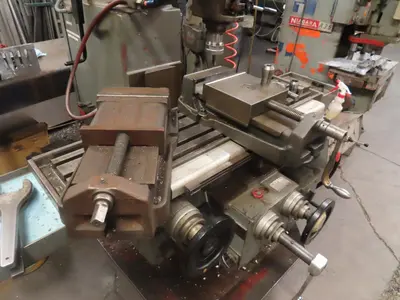

......Vises

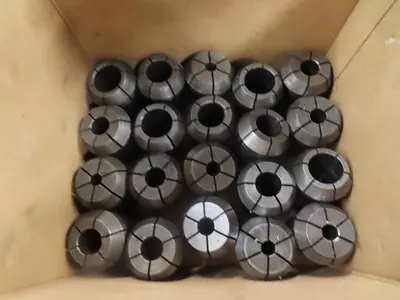

......Collets

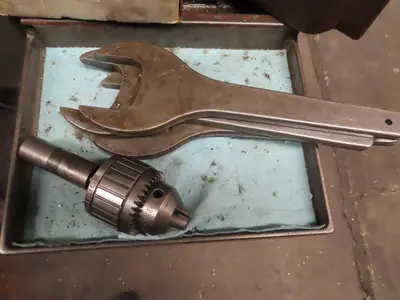

......Drill Chucks
......Spanner Wrenches

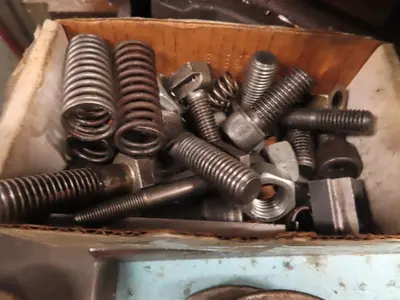

......Misc. Items

Overall Dimensions (approx.): 68" x 72" x 90"
Weight (approx.): 3,000 lb.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This owner purchased this machine a little over a year ago; he wants to resell. The machine is a good runner, no problems; however, he is upgrading his equipment and needs the room. This is not the only piece I am selling for him. Unit is under power; available to run for inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Eugene, OR Metro Area

Equipment is under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
