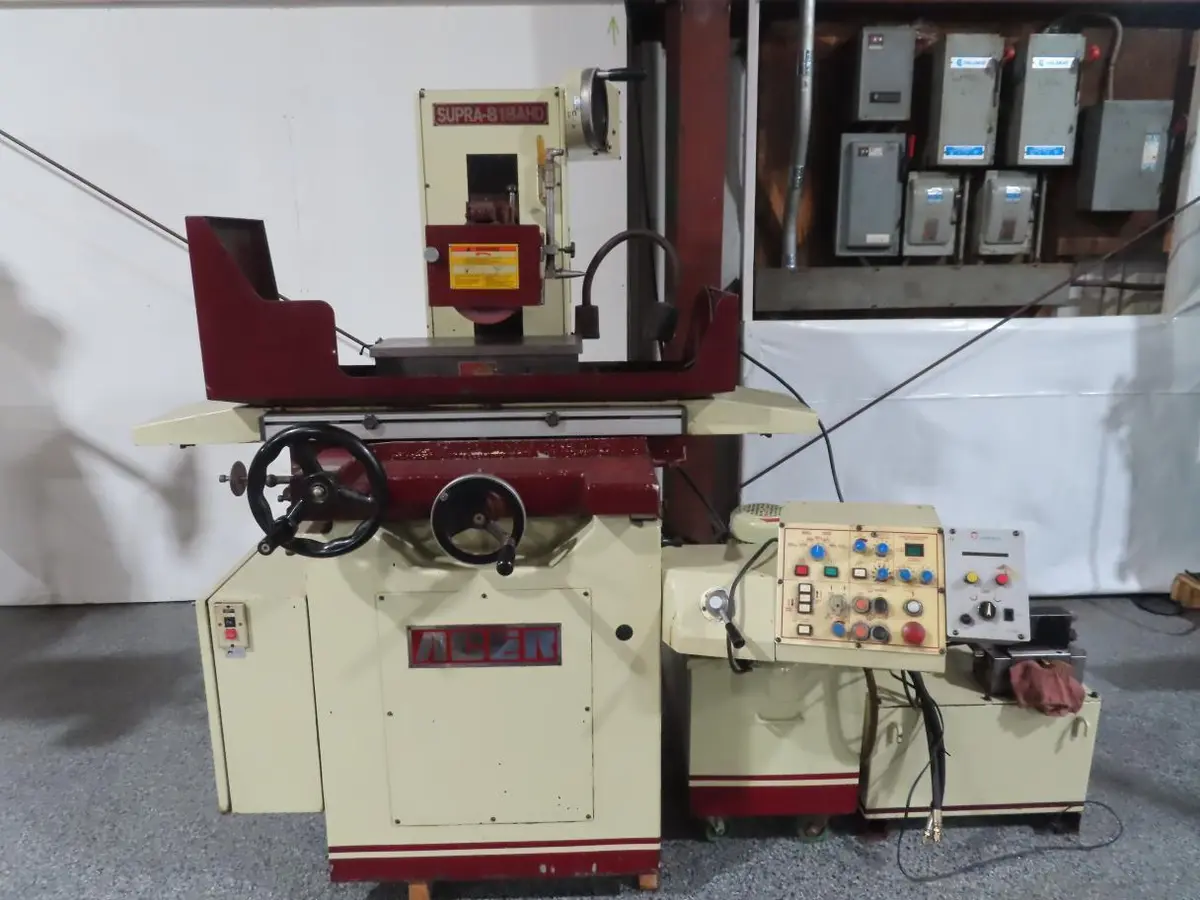

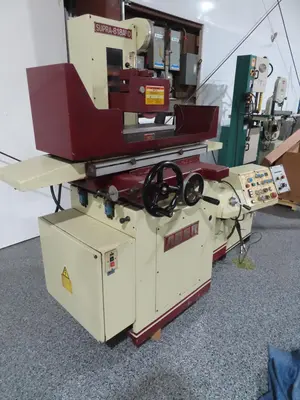

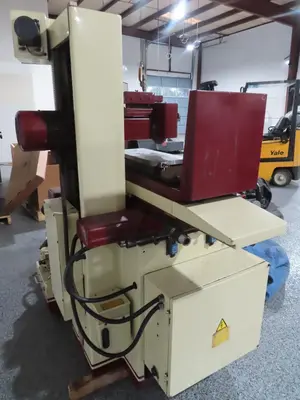

Reciprocating Automatic 3-Axis Hydraulic Surface Grinder

Description

3-Axis Automatic, Hydraulic Surface Grinder
Manufacturer: Acer Group (Taiwan)
Model: Supra-818 AHD
DOM: 2004
Electrics: 230 Volt, 3 Phase, 60 HZ
Main Motor: 3 HP, 3,450 RPM

Features and Specifications:
...Grinding Capacity: 9" x 18"
...Table: 8" x 18"
...Max. Table Load: 418 lbs.
...Table Speed (variable): 16 - 80 FPM

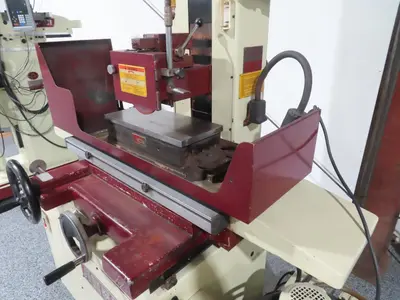

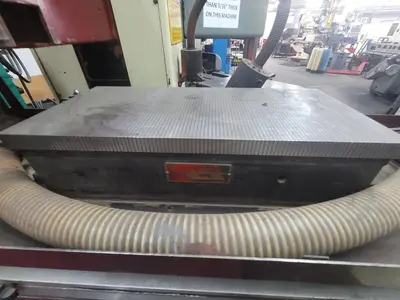

...Magnetic Chuck (Earth Chain)
...Travels:
......Longitudinal (X): 19”
......Crossfeed (Y): 9.75”
......Max. Ht. Under Wheel: 18”
...Wheel Size: 8" x 1/2" x 1.25" Arbor

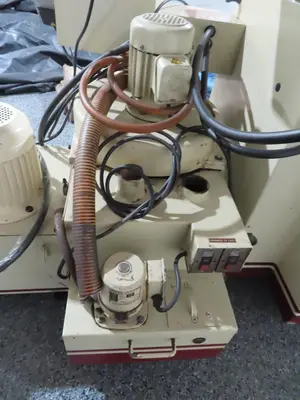

...Coolant System

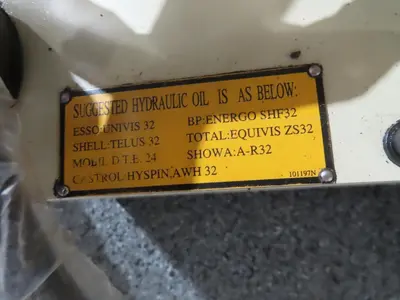

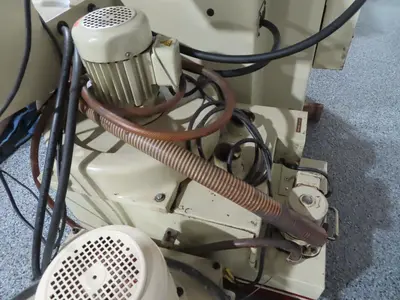

...Hydraulic System

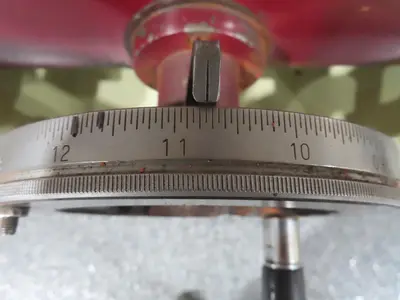

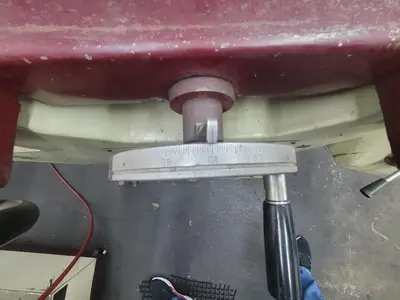

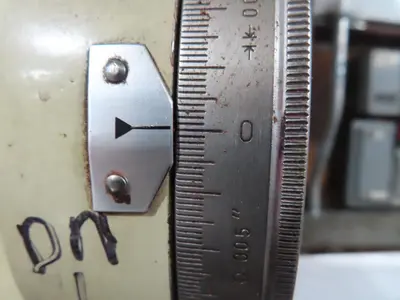

...Vertical Downfeed Increments: 0.00005" - .002"
...Turcite-B Coated Guideways

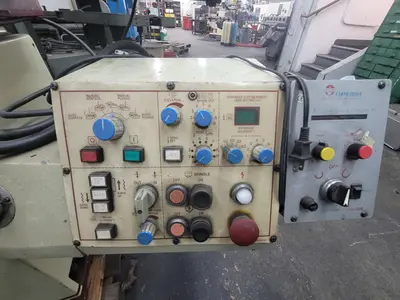

...Automatic, Programmable Vertical Downfeed
...Power Rapid Wheelhead Positioning
...OEM Rated Flatness: 0.00012"

Dimensions (approx.): 59" x 41" x 75" Tall
Weight (approx.): 3,300 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

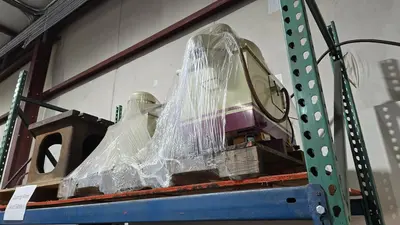

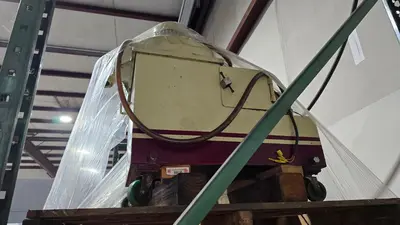

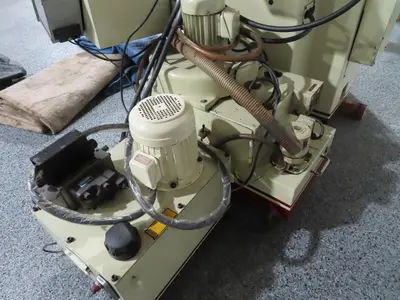

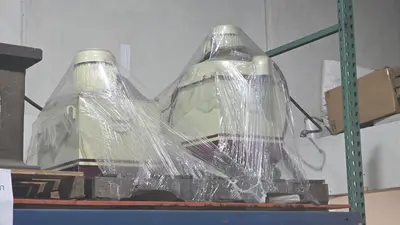

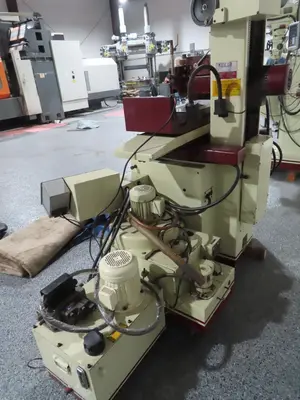

This machine is coming out of a large manufacturing house currently consolidating equipment from 3 buildings to 1. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is disconnected from power; hydraulic and coolant tanks are shrunk wrapped to a skid (see pictures). Machine was a good runner until decommissioning.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is not under power; available for inspection.
Buyer responsible for rigging out of shop and loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote rigging, loading, and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
