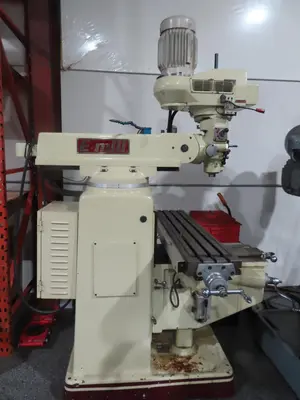

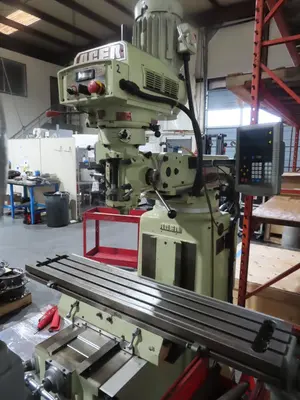

Bridgeport Style Knee Mill

Description

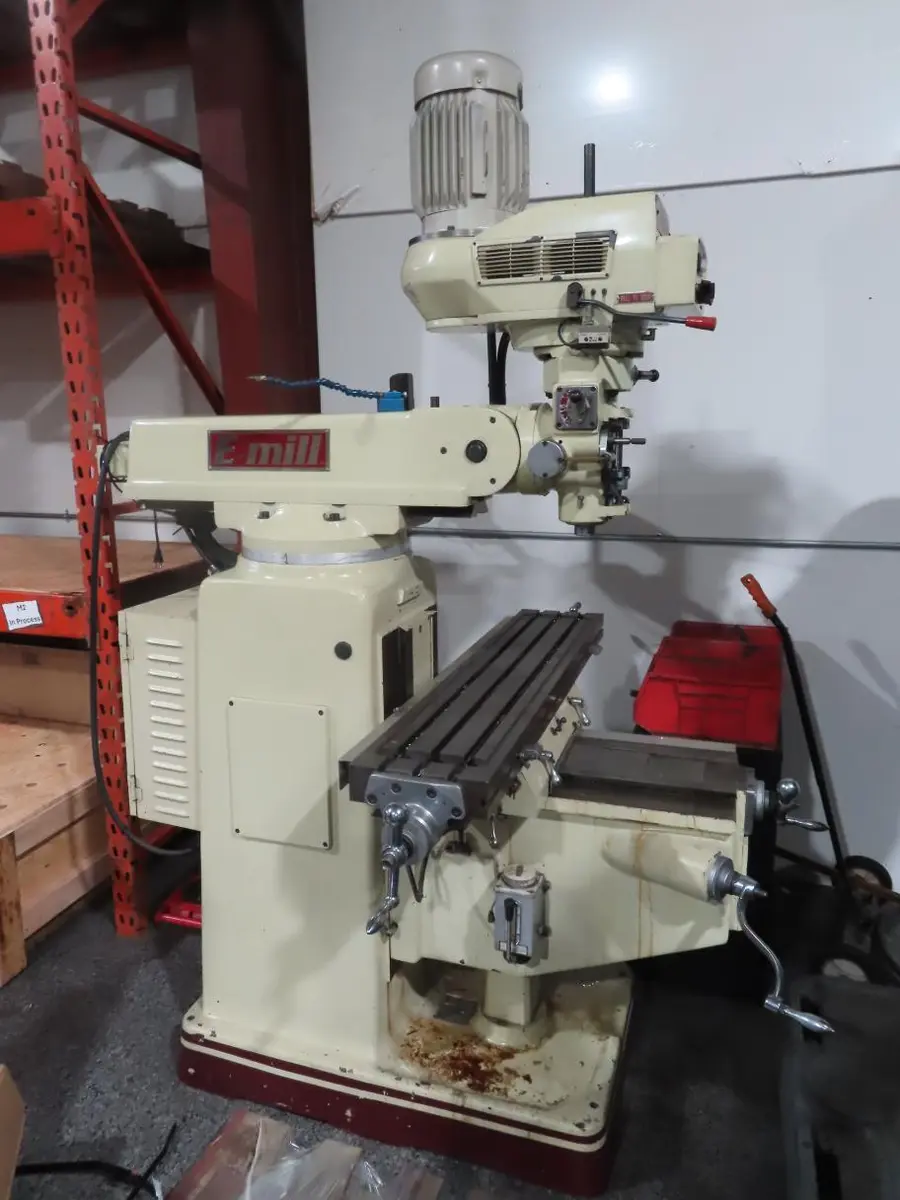

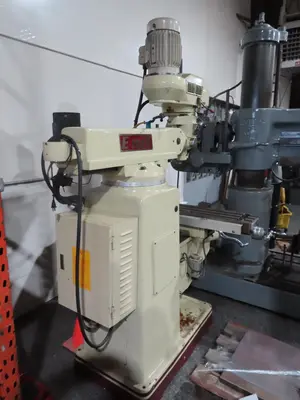

Bridgeport Style Knee Mill
OEM: Acer Group (Taiwan)
Model No.: EVS-3VK
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 8-4 Amps

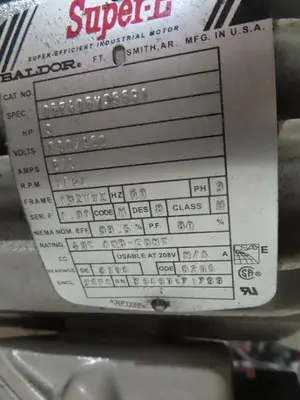

Main Spindle: 3 HP, 1760 RPM

Features and Specifications:

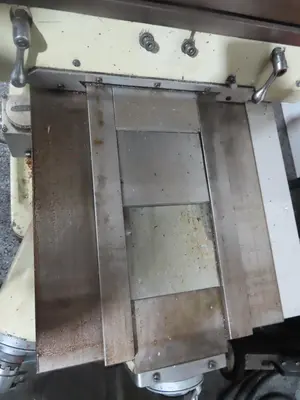

…Table Size: 50 " x 10"
…Travels (approx.):
…..X-Axis (longitudinal): 34”
…..Y-Axis (cross feed): 16”

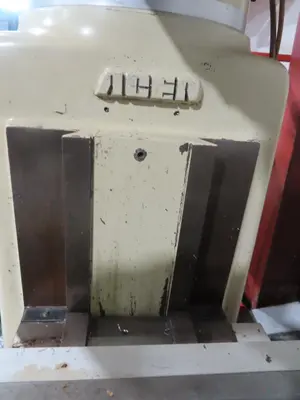

…..Z-Axis (knee): 16"-20”

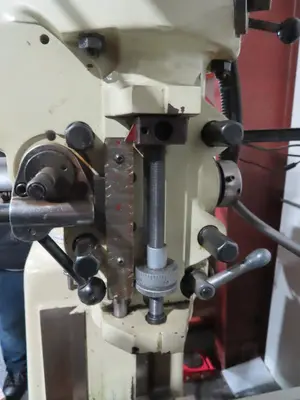

…..Quill: 5”

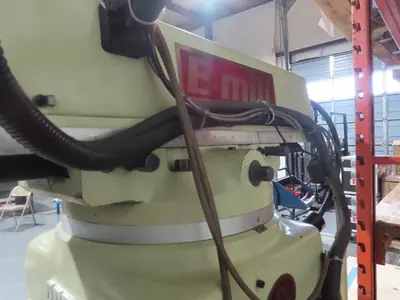

…..Ram: 20”

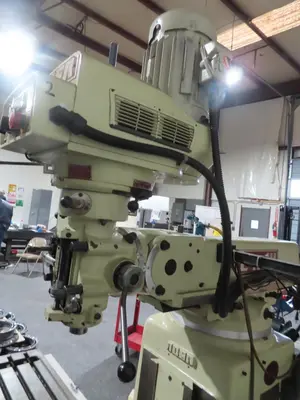

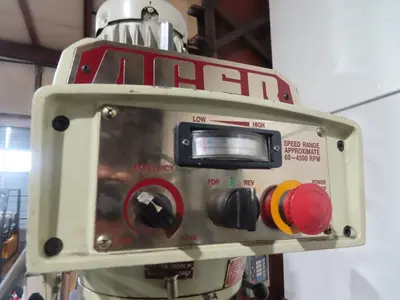

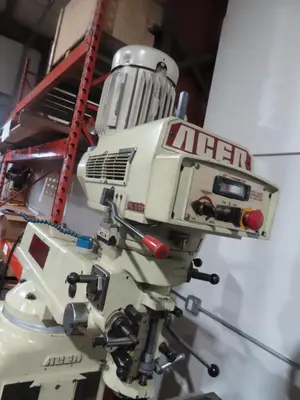

…Variable-Speed Drive:
…..Low Speed: 60 – 500 RPM
…..High Speed: 500 – 4500 RPM

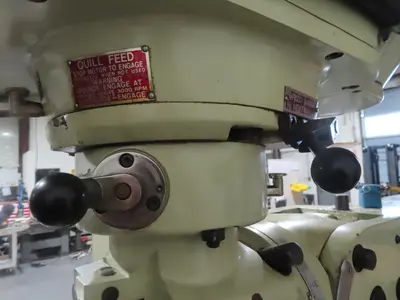

…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 750 - 1,100 lbs.
…Spindle Direction Switch
…Spindle Taper: R8

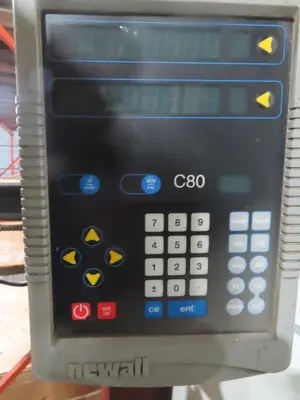

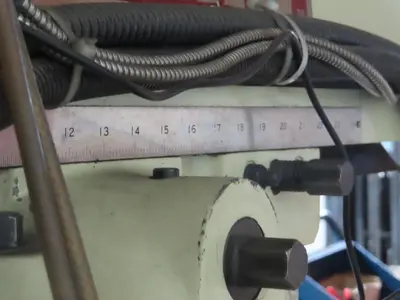

…Newall DRO

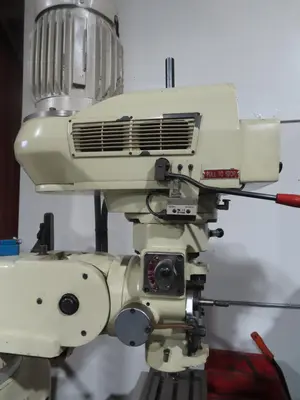

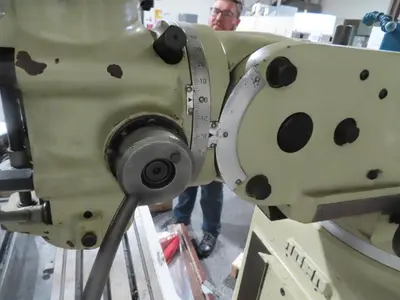

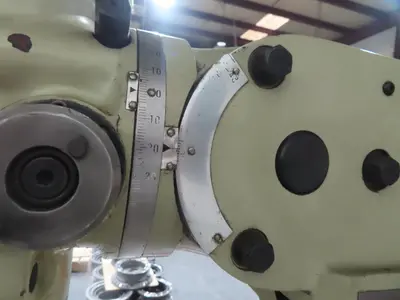

…Knuckle Joint for Head Tilt
......45° Front-to-Back
......90° Left-to-Right
…1-Shot Lube
…Manual Draw Bar

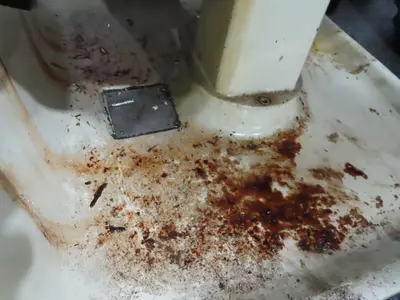

…Sump in Base

Equipment Dimensions (approx.): 72” x 64” x 90”
Equipment Weight (approx.): 3,050 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is disconnected from power; machine was a good runner until decommissioning.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is not under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
