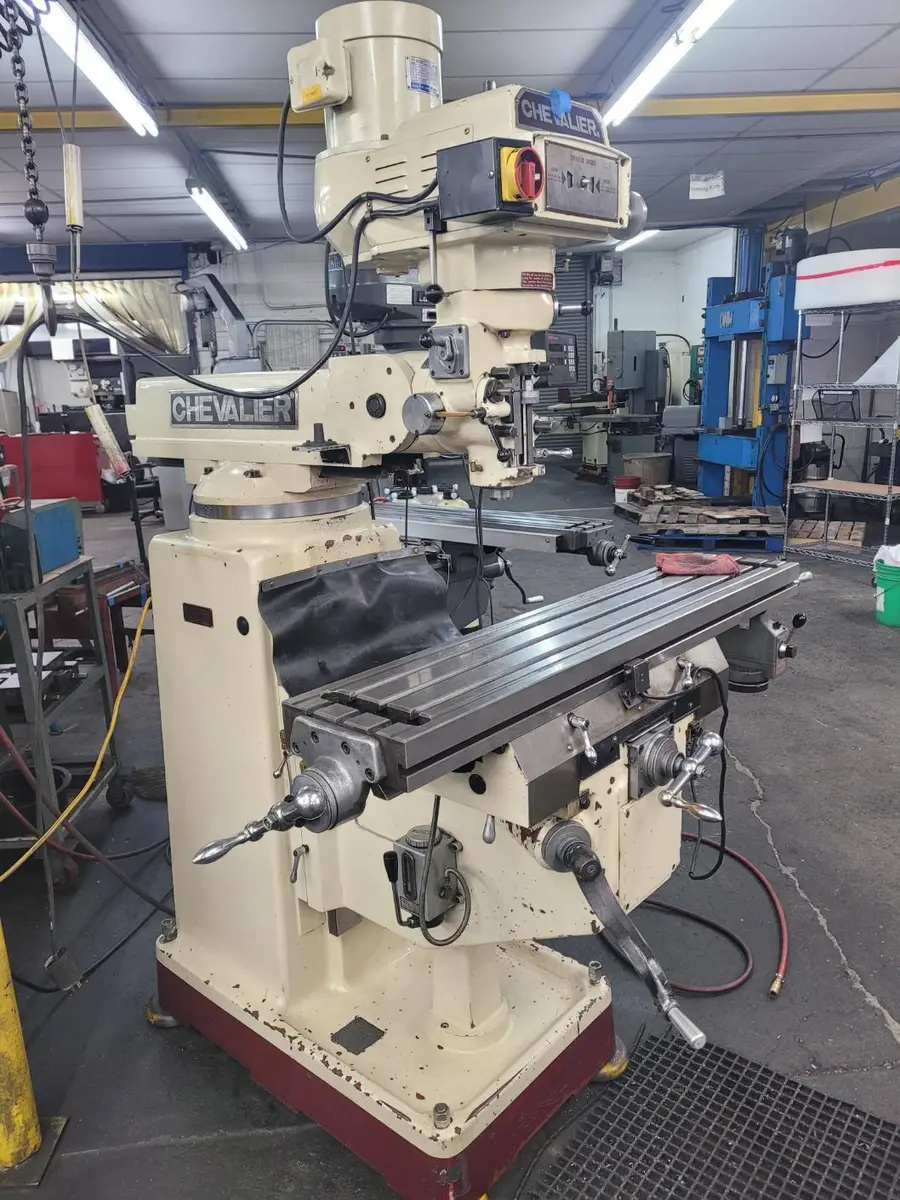

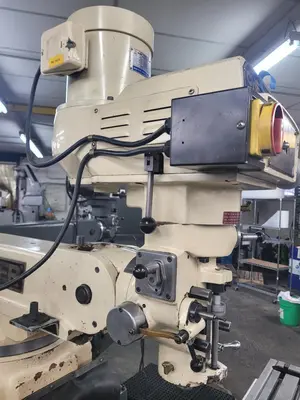

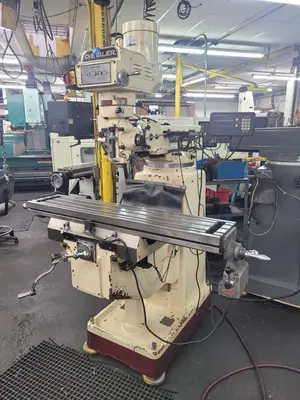

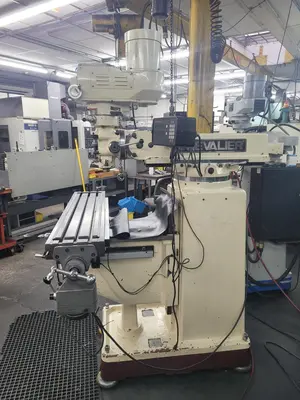

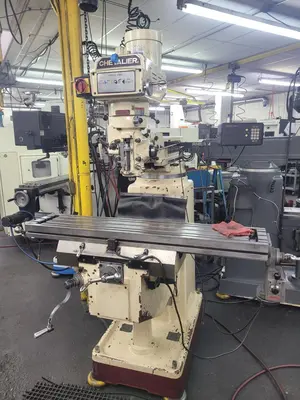

Chevalier Knee Mill with DRO

Description

Bridgeport Style Manual Knee Mill

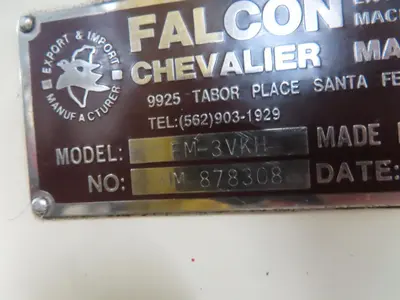

OEM: Chevalier Machinery Inc. (Taiwan)
Model No.: FM-3VKH
Year (circa): 1999
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 8.1-4.0 Amps

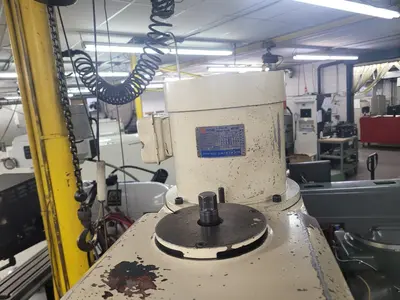

Main Spindle: 3 HP, 1720 RPM

Features and Specifications:

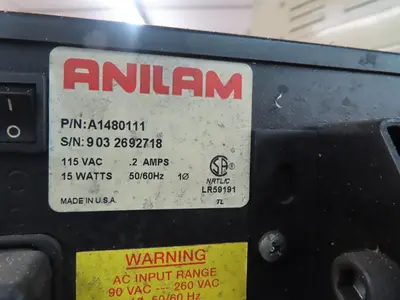

...DRO: Anilam Wizard 111

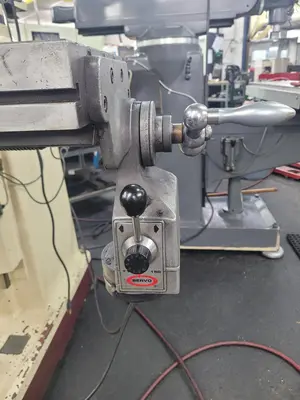

...X-Axis Power Feed
…Table Size: 50" x 10"
…Travels (approx.):
…..X-Axis (longitudinal): 33”
…..Y-Axis (cross feed): 16”
…..Z-Axis (knee): 15"

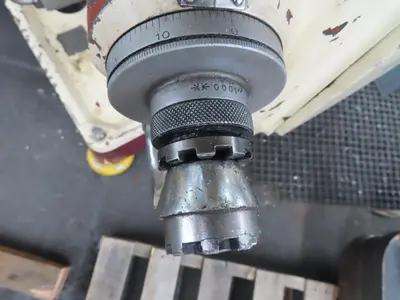

…..Quill: 5”

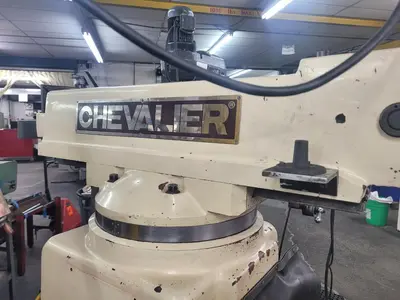

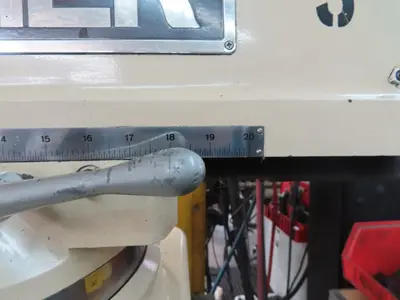

.....Ram: 20"

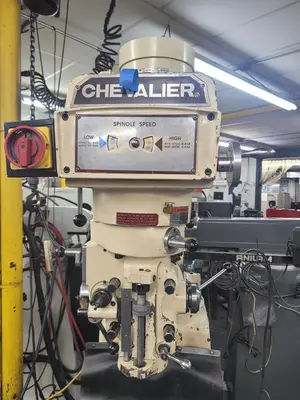

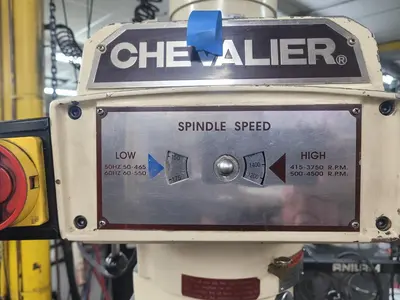

…Variable-Speed Drive:
…..Low Speed: 60 – 550 RPM
…..High Speed: 500 – 4500 RPM
…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 750 lbs.
…Spindle Taper: R8

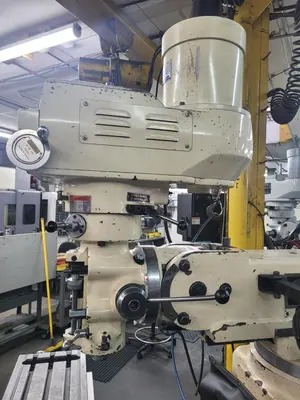

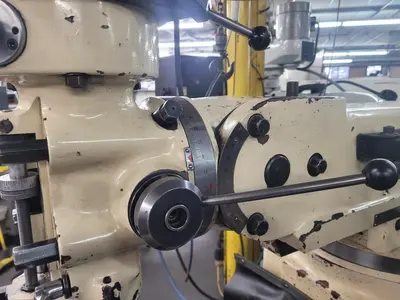

…Knuckle Joint for Head Tilt
......45° Front-to-Back
......90° Left-to-Right

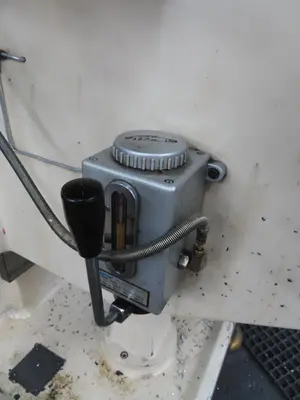

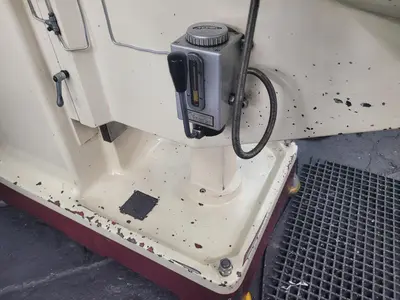

…1-Shot Way Lube

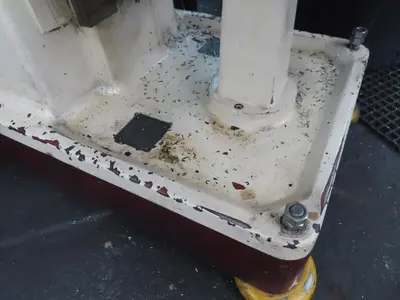

…Sump in Base
...Meehanite Cast Iron Construction
...Hardened and Ground Dovetail Ways
...Tooling

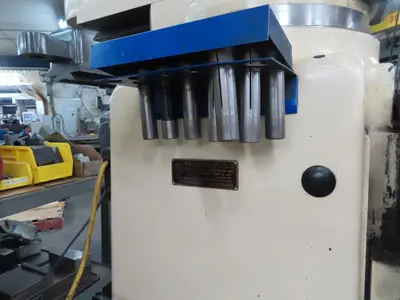

......Collets (see pics)

Equipment Dimensions (approx.): 64" x 67" x 90"
Equipment Weight (approx.): 3,100 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently connected to power; available for inspection in current condition. Will be disconnected from power within next 4-8 weeks.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is presently under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
