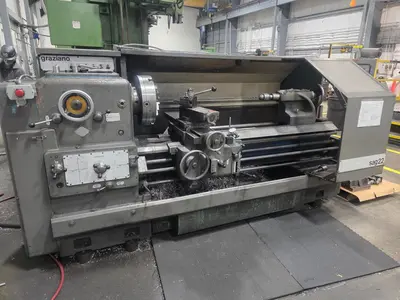

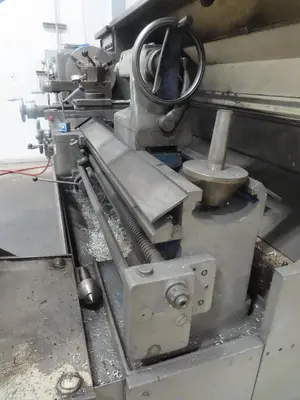

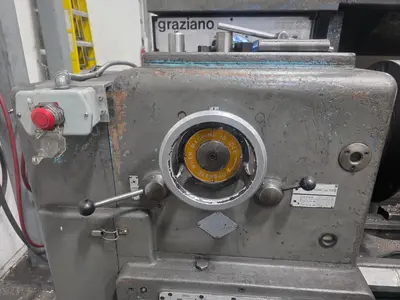

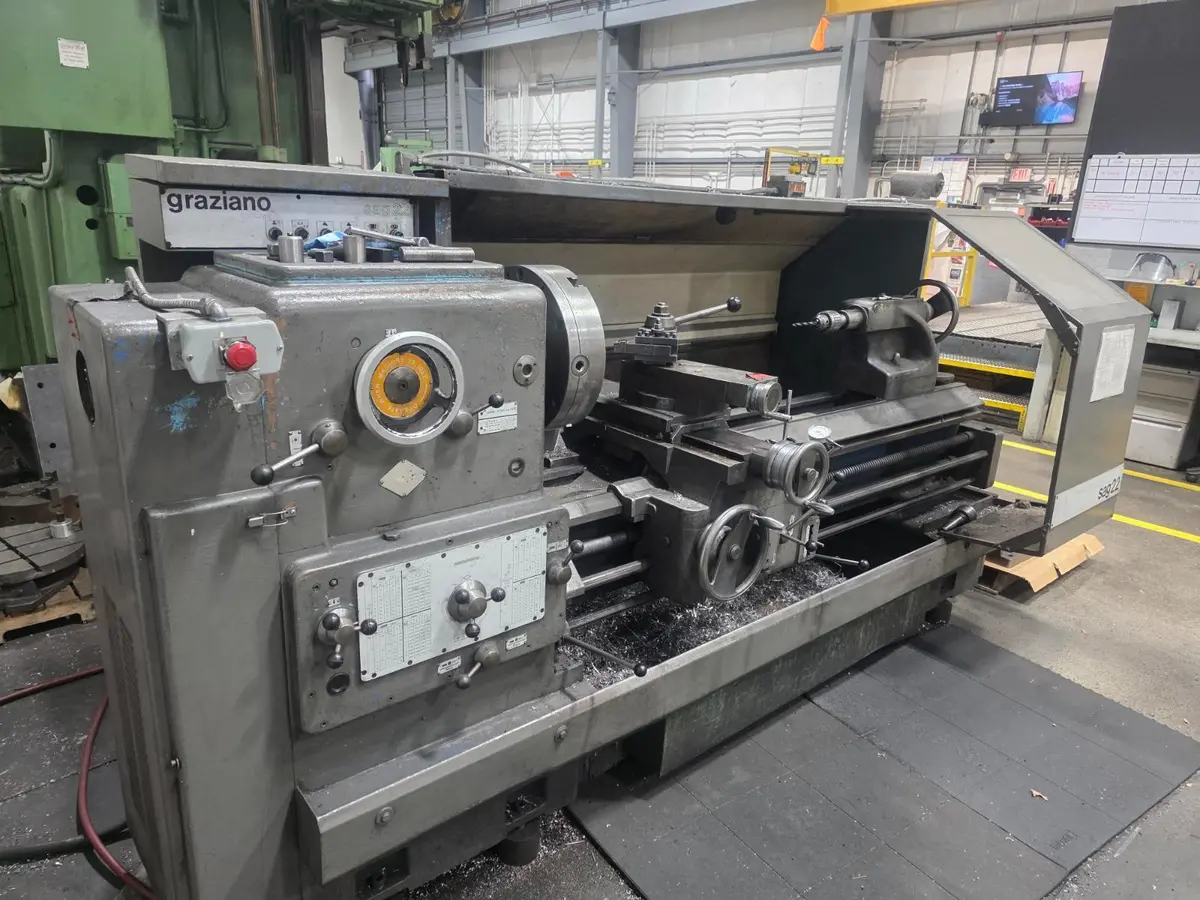

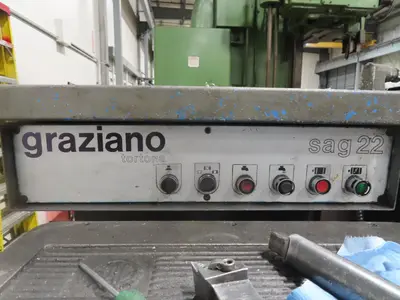

Manual Engine Lathe
OEM: Graziano Tortona
Model: Sag22
Electrics: 220-440 Volt, 60 Cycle, 3 Phase
Main Motor: 15 HP
Features and Specifications
...Swings:
......Over Ways: 22"
......Over X-Slide: 14.8"
...Distance Between Centers: 60"
...Length of Bed: 80" (from chuck face)
...Quill Travel: 5-1/2"
...Through Hole: 3-1/2""
...Tailstock Taper: MT No. 5
...Spindle Specs:
......Speeds (12): 30 - 1,500 RPM
......D1-8 Camlock
...Threading Forms:
......Diametrical (40): 6 - 48
......Modular (18): 0.25 - 2.75"
......TPI (40): 3 - 24
......Metric (26): 0.375 - 5.5 mm

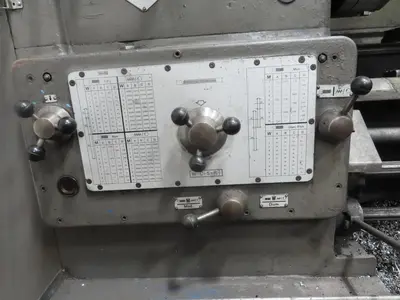

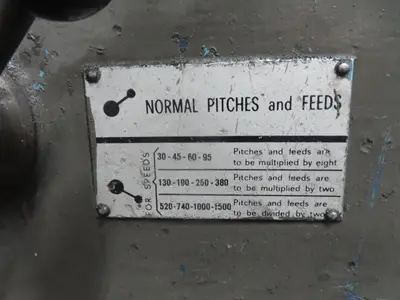

...Threading Feeds (40):
......Metric (mm/rev): .00118 - .01868
......Inch (inches/rev): .00356” - .01492"

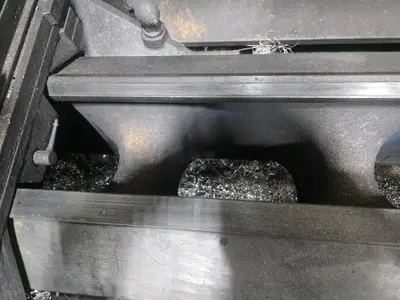

...Chip Pan
...Coolant Capable

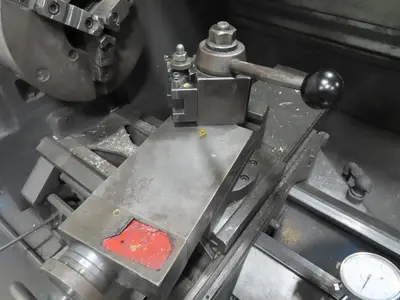

...2-Way Quick Change Toolpost

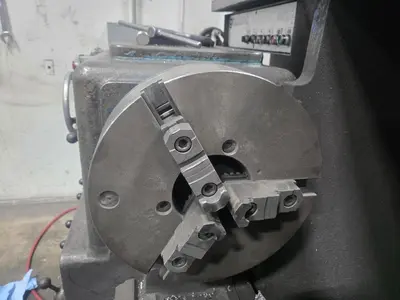

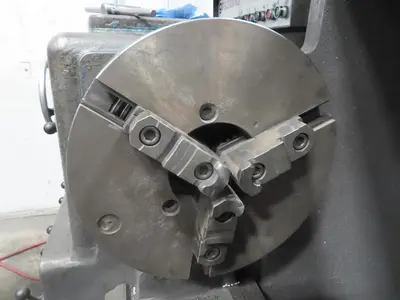

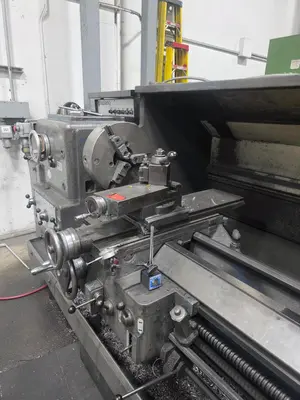

...16" 3-Jaw Chuck

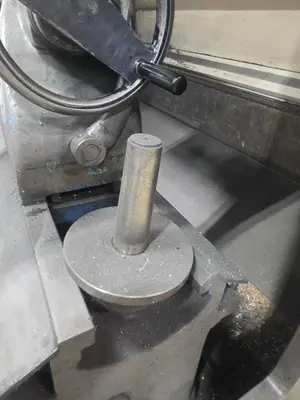

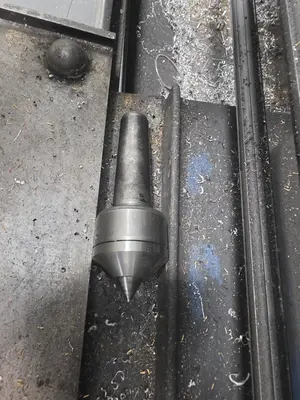

...Centers

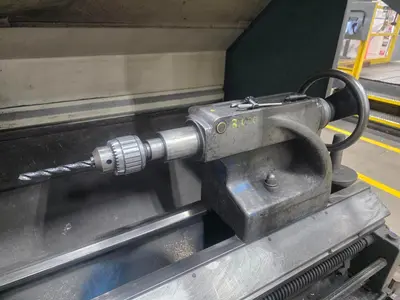

...Drill Chuck
Overall Dimensions (approx.): 126" x 68" x 64"
Machine Weight (estimated): 8,500 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently connected to power; available for inspection in current condition. Will be disconnected from power within next 4-8 weeks.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is presently under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.

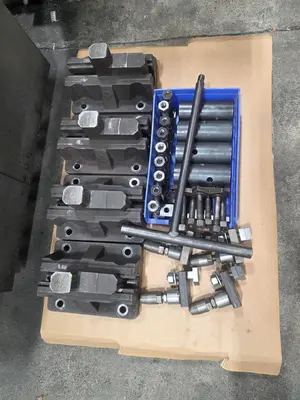

Quick Change Toolpost
16" 3-Jaw Chuck
Centers
Drill Chuck
