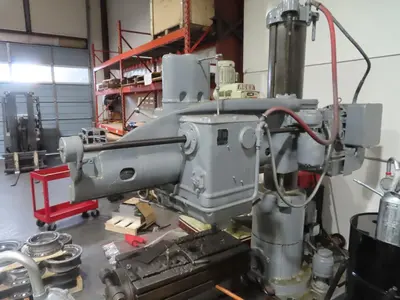

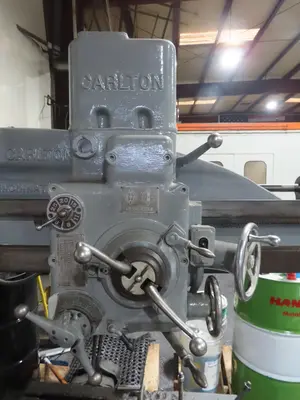

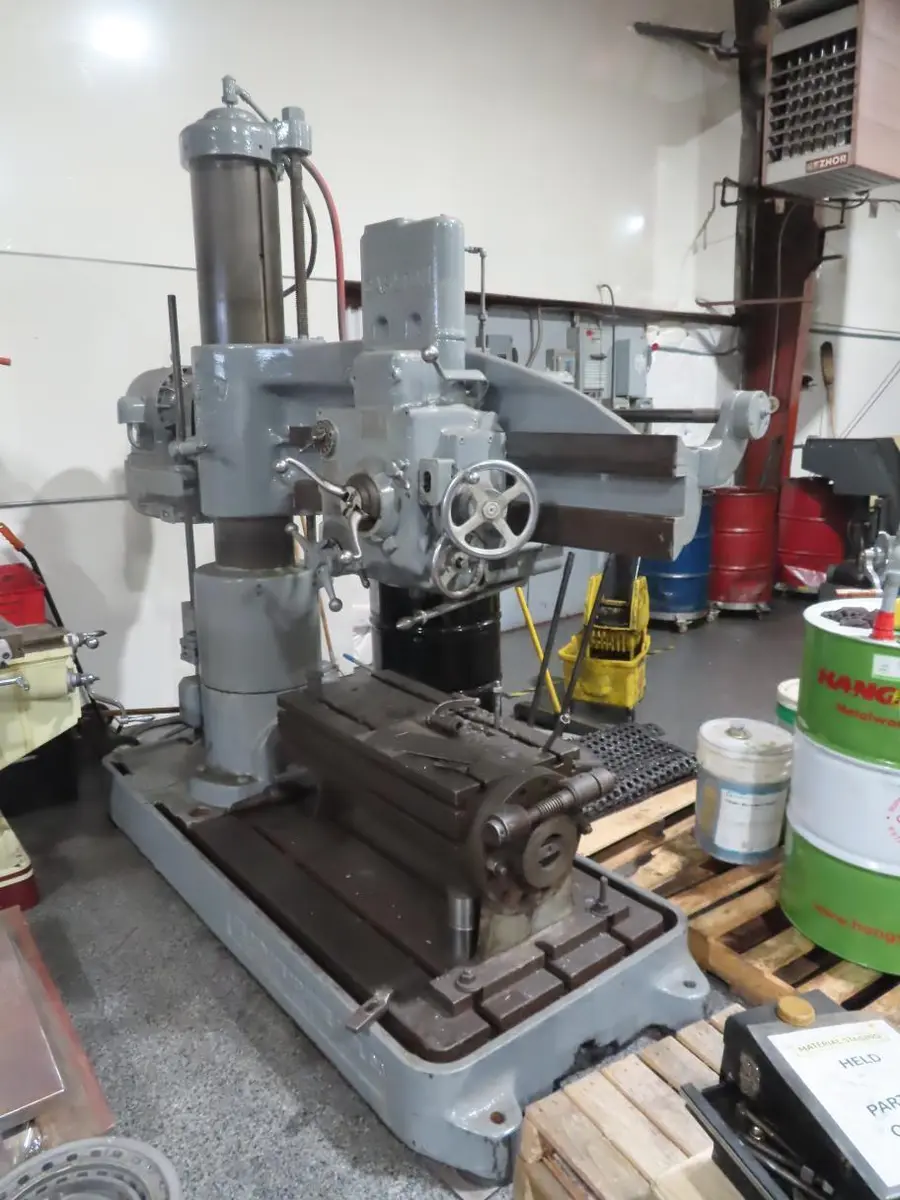

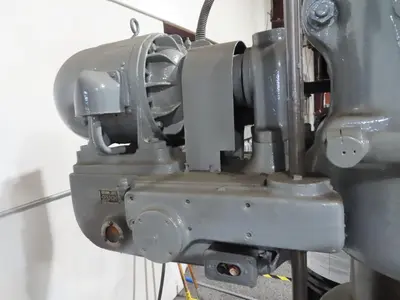

Carlton 4' x 11" Radial Drill

Description

Radial Drill
OEM: Carlton Machine Tool Company (Cincinnati, OH)
Electrics: 220-440 Volt, 3 Phase, 60 Cycle
Main Spindle: 5 HP

Features & Specifications:

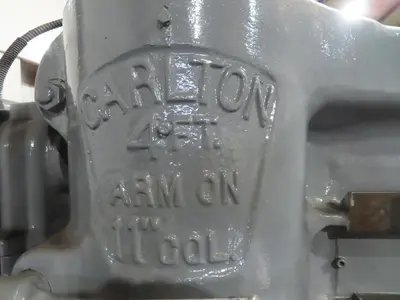

…Nominal Size: 4' Arm x 11” Column

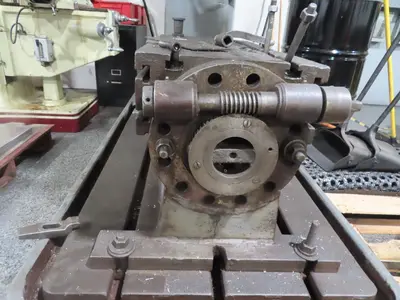

...Table: 34” x 17” (Rotatable)

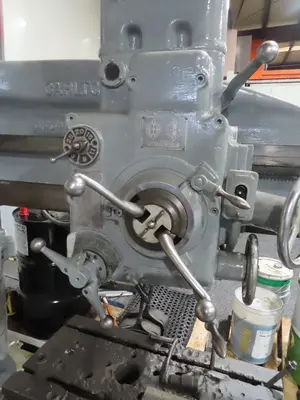

...Spindle Specs:

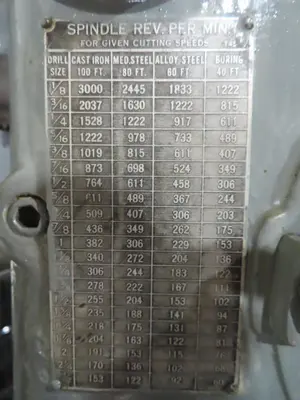

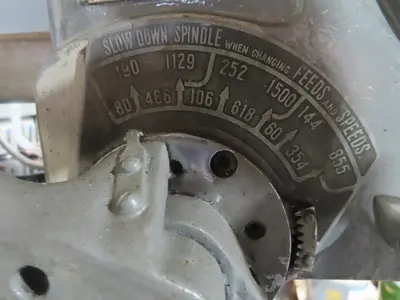

…...Spindle Speeds (12): 60 -1500 RPM
…...Taper: MT #4

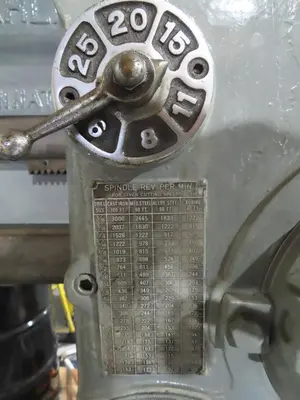

…...Spindle Feeds (6): 0.006” – 0.025” IPR
…...Spindle Travel (Stroke): 12”
...Head/Arm Movement:
…...Horizontal Head Travel on Arm: 39”

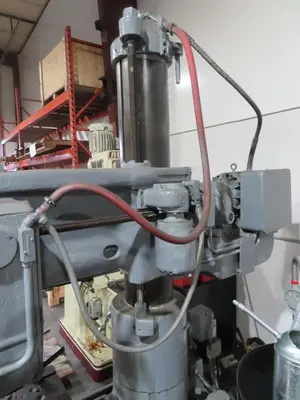

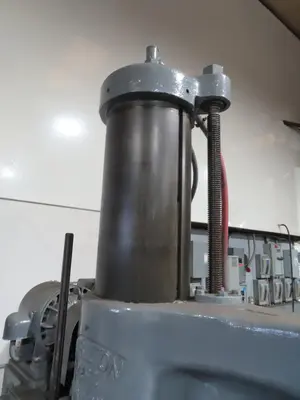

…...Vertical Arm Travel on Column: 28.5”
...Distances:
…...Column Face to Spindle Center: 9” – 48”
…...Spindle to Base: 14.75” – 54”
...Drilling Capacity: 96” Diameter Circle
...Power Elevation and Clamping

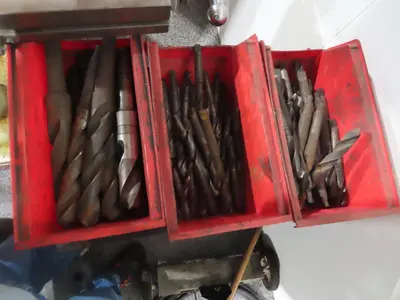

...Consumables: Drill Bits (see pics)

Machine Dimensions (approx.): 102” L x 48” W x 106” Tall
Machine Weight (approx.): 9,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently connected to power; available for inspection in current condition. Will be disconnected from power within next 4-8 weeks.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is presently under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
