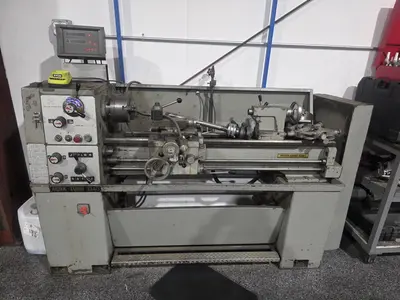

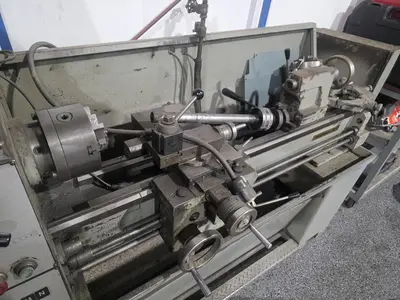

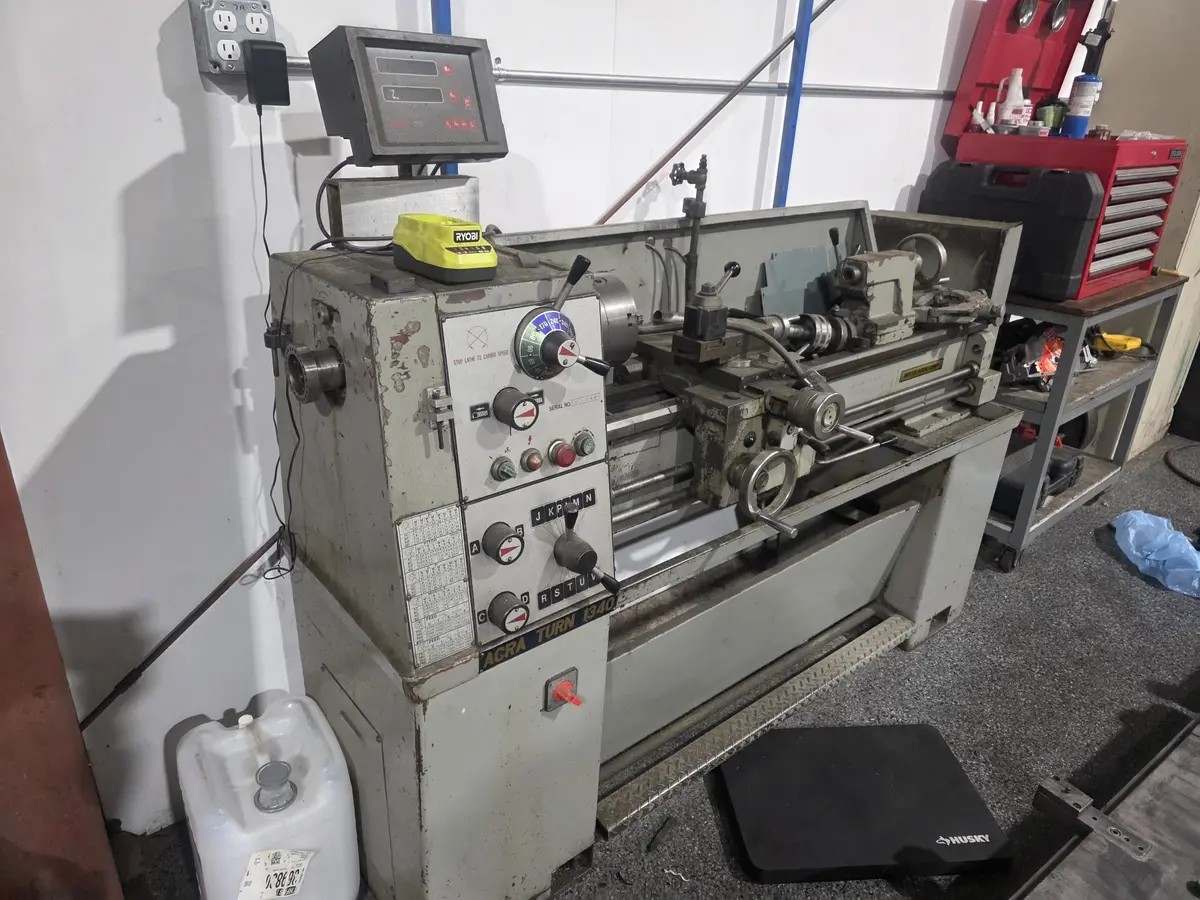

Acra-Turn 1340 Precision Gap Bed Lathe

Description

Precision Engine Lathe
OEM: Acra-Turn
Model: Acra Turn 1340
DOM (estimated): 2000
Electrics: 220-440 Volt, 60 Cycle, 3 Phase
Main Motor: 3 HP

Features and Specifications
...Controls: Newall DPG 2-Axis DRO
...Swings:
......Over Bed: 13"
......Over X-Slide: 7.5"
......Over Gap: 18"
...Distance Between Centers: 40"

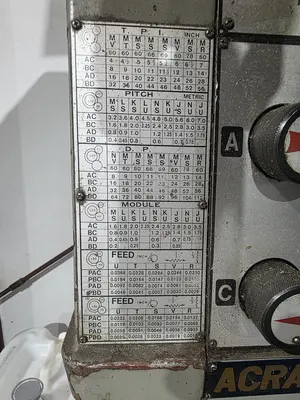

...Threading Forms:
......(32) Standard Inch: 4-56 TPI
......(27) Modular: 0.2-3.5
......(32) Diametrical: 8-112
......(32) Metric: 0.4-7.0 MM
...Feeds:
......0.0026 - 0.0368 IPR
......0.0018 - 0.0232 IPR
...Spindle Specs:
......D1-4 Camlock Nose
......Spindle Bore: 1.5"
......Speeds: 45-1800 RPM
...Tailstock:
......Taper: MT#3
......Travel: 5"
...Hardened Ground Ways
...Foot Treadle

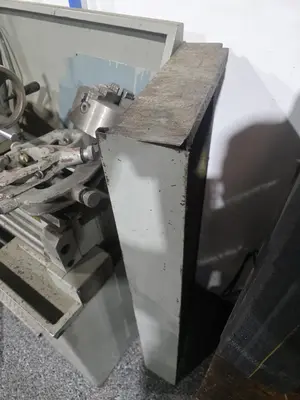

...Back Splash
...Tooling:
......Collet Closer
......2-Way QC Tool Post

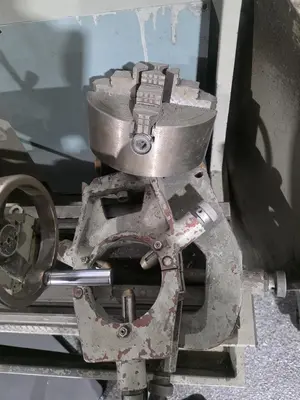

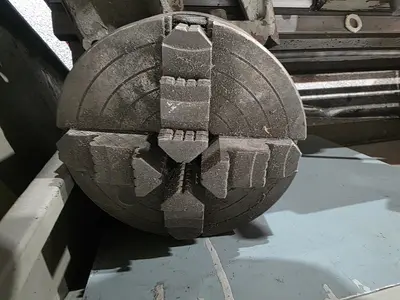

......4-Jaw Chuck

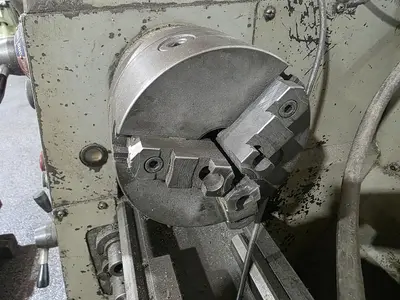

......3-Jaw Chuck
......Following Rest
......Steady Rest

Overall Dimensions (approx.): 73" x 30" x 54" Tall
Machine Weight (estimated): 2,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is presently disconnected from power; available for inspection in current condition.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is presently not under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
