Swiss Drilling & Tapping Machine

Description

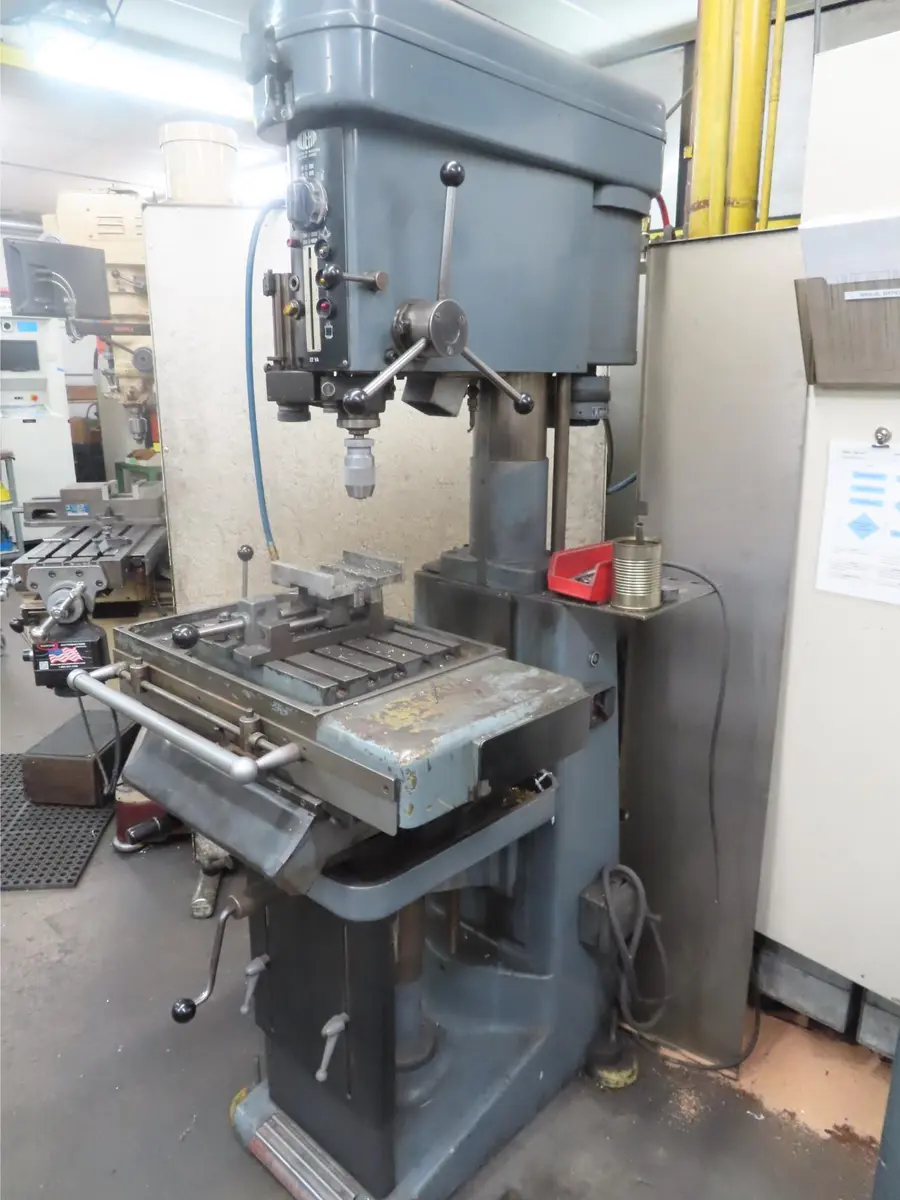

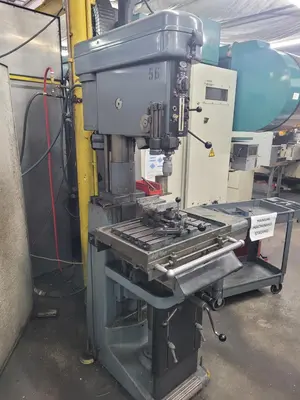

Swiss Drilling & Tapping Machine
Manufacturer: Aciera Fabrique De Machines
Model: 22 VA
Year (estimate): 1990
Electrics: 230 Volt, 3 Phase, 60 Cycle
Main Motor: 1.5 HP

Features and Specifications:
...Drilling Capacity: 0.8661” - 0.9843"
...Tapping Capacity: M20

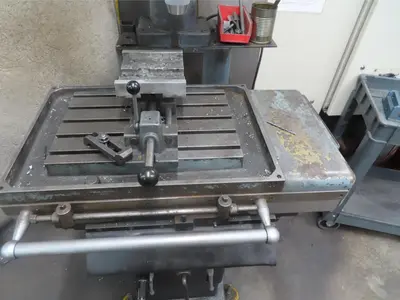

...Table Size: 16" x 12"
...Quill Travel: 5"
...Radius: 11"
...Speeds: 37 - 4,000 RPM
...Throat Depth: 11.8"
...Spindle Head Adjustment: 11.8"
...Spindle Taper: MT#3
...Table Travels:
......X-Axis: 13"
......Y-Axis: 8.25"
......Z-Axis: 13.78"
...(4) Automatic Feed Rates: .02 - .12 mm/rev
...Stepless Speed Control
...High Rigidity

Machine Dimensions (approx.): 48” x 36" x 78"
Machine Weight (approx.): 1,750 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is under power; power is going to be disconnected within 6-8 weeks. Machine was a good runner until decommissioning.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
