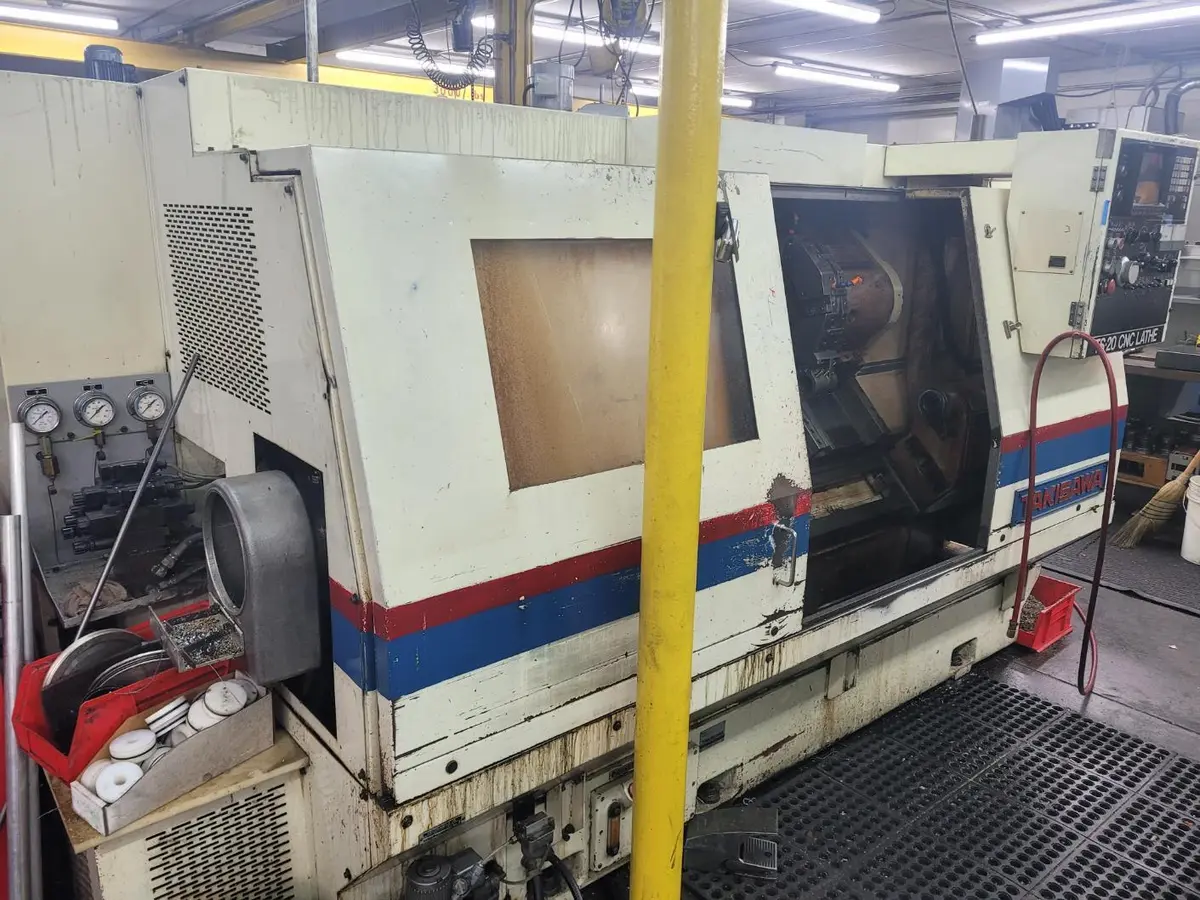

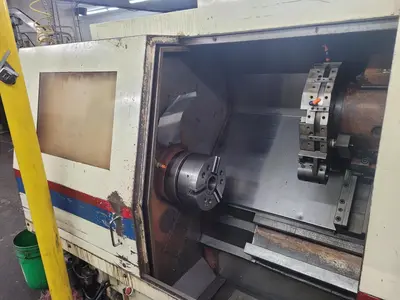

Takisawa CNC Turning Center

Description

CNC Turning Center
Make: Takisawa Machine Tool Co. (Made in Japan)
Model: TS-20
DOM: 1985

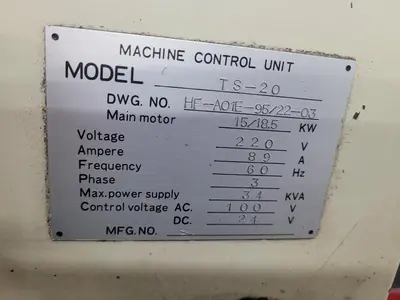

Electrics: 220 Volt, 3 Phase, 60 Cycle, 89 Amp
Main Spindle Power: 20/25 HP

Features and Specifications:

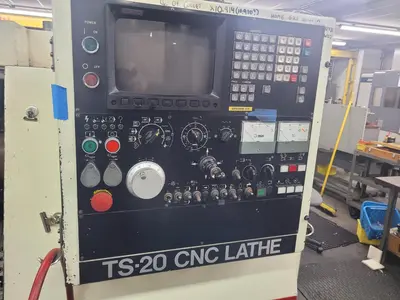

...CNC Controls: Fanuc 11T
...Swing: 20" Over Bed
...Travels:
......X-Axis: 6.6875"
......Z-Axis: 24.4375"
...Max. Turning Diameter: 11.8125"
...Boring Bar Capacity: 2"
...Spindle Speeds: 40 - 4,000 RPM

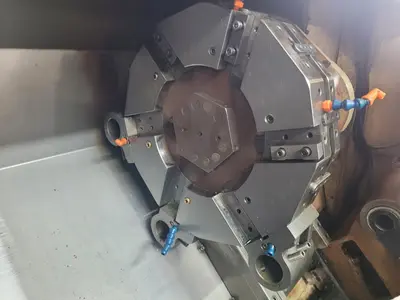

...Turret: 12-Station
...Cutting Feed Rate: 0.01 - 200 ipm
...Rapid Traverse Rates:
......X-Axis: 200 IPM
......Z-Axis: 400 IPM

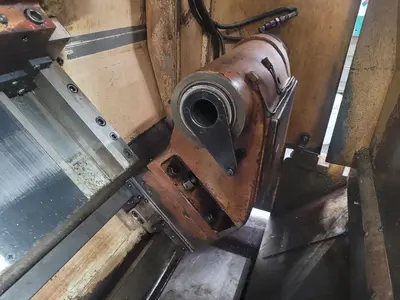

...Tailstock Specs:
......Tailstock Taper: MT#5
......Quill Travel: 4-3/4"
......TS Quill Dia.: 3-9/16"

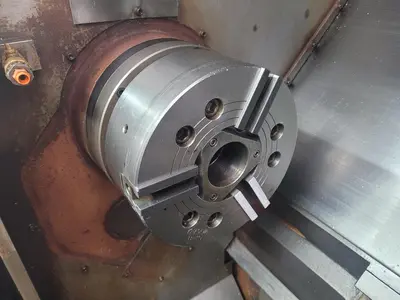

...10" 3-Jaw Chuck

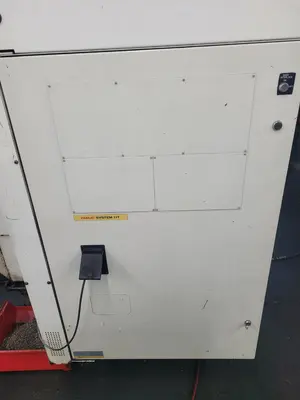

...Foot Pedal

Machine Dimensions (approx.): 128" x 72" x 72" Tall
Machine Weight (approx.): 8,000 - 11,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is coming out of a large manufacturing house currently consolidating equipment from three buildings to one building. Selling older equipment that no longer fits in with future business plan; owner purchasing new equipment. Machine is under power and available for inspection; power is going to be disconnected within 6-8 weeks.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is under power; available for inspection.
Buyer responsible for loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
