Mechanic Power Squaring Shear 14' x 3/8"

Description

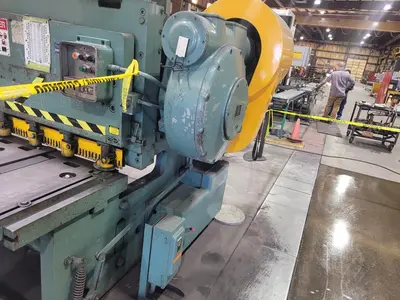

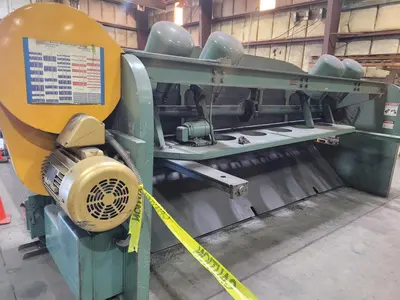

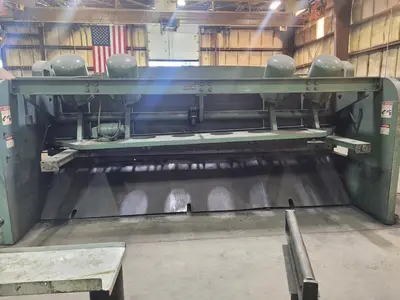

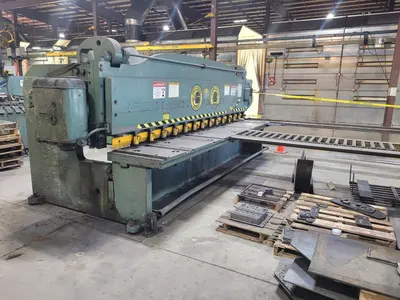

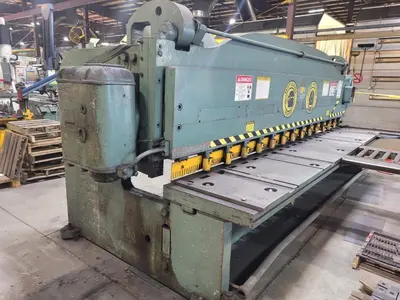

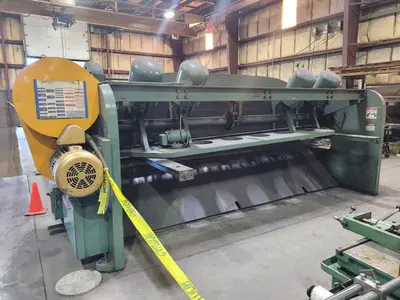

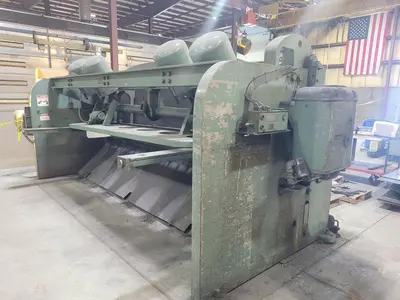

Mechanical Power Squaring Shear
OEM: The Cincinnati Shaper Company
Model: 4314
DOM: 1965
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 76-38 Amps

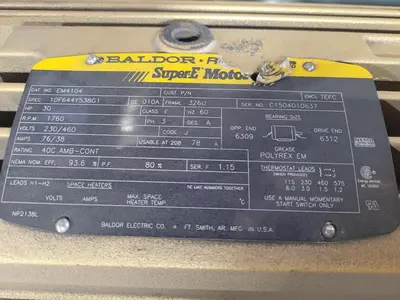

Main Motor: 30 HP, 1760 RPM

Features and Specifications:

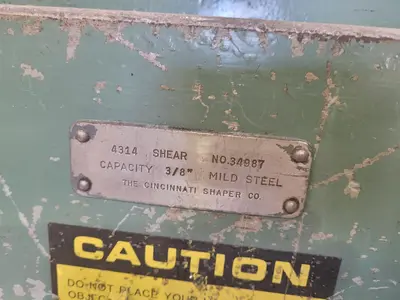

…Nominal Capacity: 3/8" x 168”
……Material Thickness: 3/8” MS
……Shearing Length: 168”
…Distance Under Hold-Down: 1-1/16”
…Front Operated Back Gauge
…4-Edge Tool Steel Blades
…Knife Size: 1-1/8” x 5” x 172”
…Rake (Inches/Feet): 23/64”
…Throat: 20”

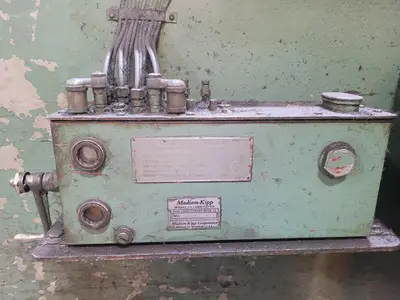

…(15) Hydraulic Hold-Down System (1 missing)

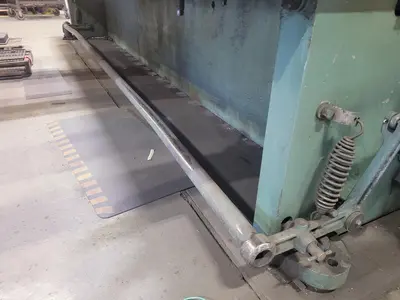

…Foot Treadle

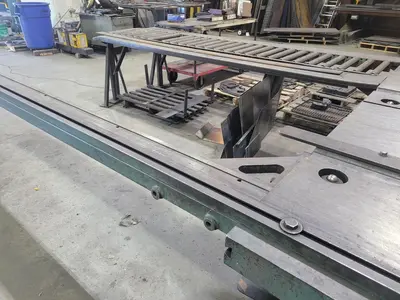

…Squaring Arm

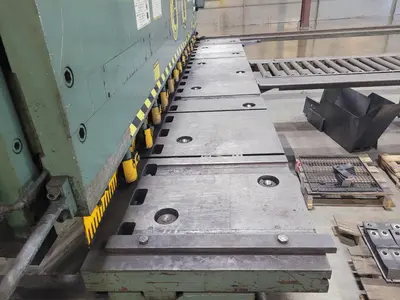

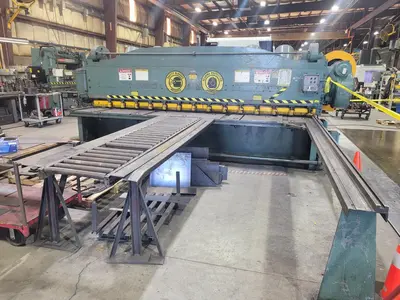

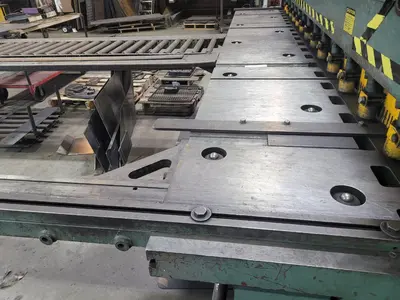

…Roller-Type Table Extension
…Robust Welded Construction

Machine Dimensions (approx.): 223” x 96” x 85” (n/i arms)
……Roller-Type Table Extension: 123” x 40”
……Squaring Arm: 127” x 8”
Machine Weight (approx.): 50,000 lbs.

Approximate specifications taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended. Price, location, and specifications are subject to change.

Functionality Notes:

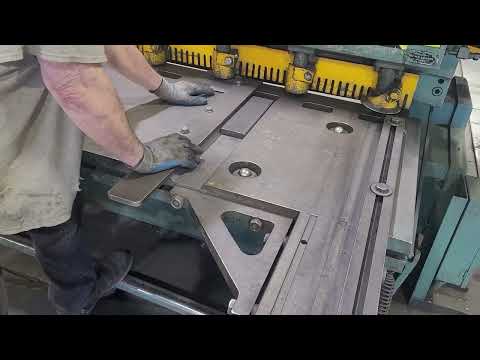

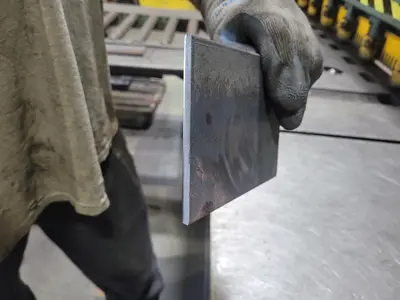

Machine was purchased by current owner in 1990-1991. According to Serial Number database on file with MD Equipment Services (MDES), machine was manufactured in 1965. The machine has been in its current spot since purchased. Equipment is under power and available for inspection. This machine is a good running shear. The operator told me it is used daily. The owner is selling to make room for a new laser cutting system and another piece of new equipment.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Columbia Gorge, OR (45 miles East of Portland)

Equipment is available for inspection and test.
Buyer is responsible for rigging out of shop on loading on their transportation.
Buyer is responsible for freight logistics and expenses.
MDES can provide rigging/loading quotation.

Contact MD Equipment Services LLC to schedule an inspection or arrange purchase details.
