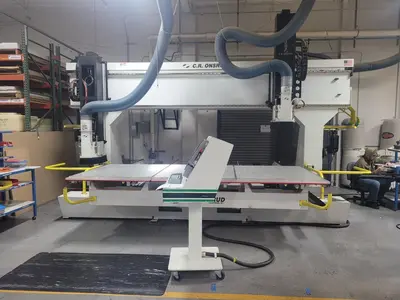

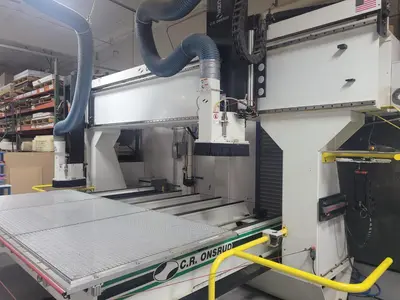

Onsrud Fixed Table Moving Gantry CNC Router

Description

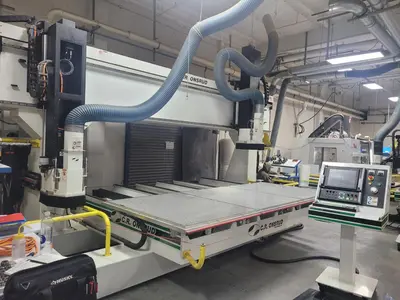

Fixed Bridge, Moving Gantry
Dual Head CNC Router
Manufacturer: C.R. Onsrud, Inc.
Model: 148E24CH2
DOM: 06/2014
Electrics: 440 Volt, 3 Phase, 60 Cycle, 40 Amps

Features and Specifications:

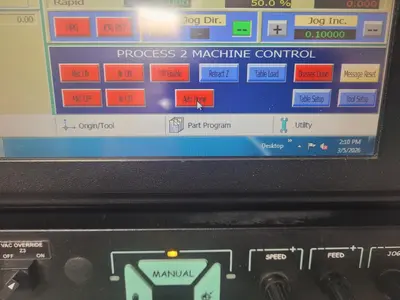

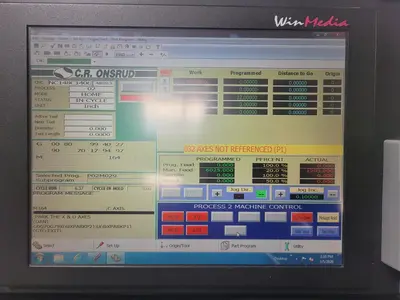

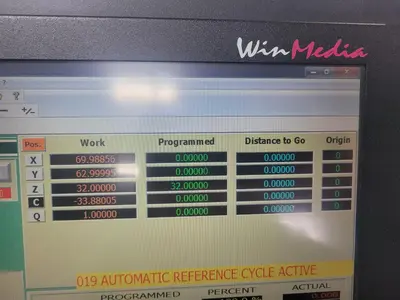

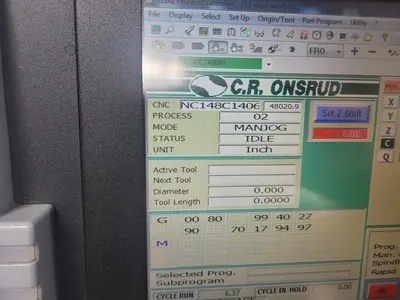

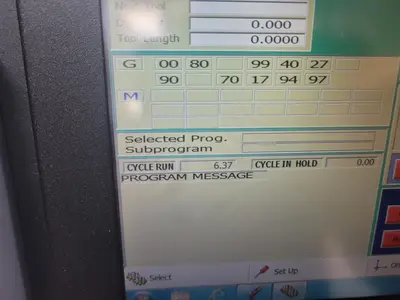

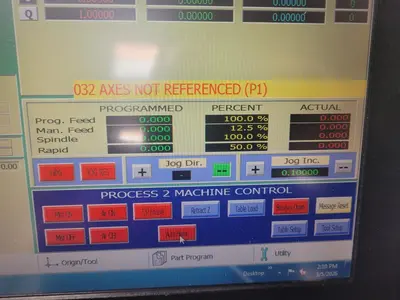

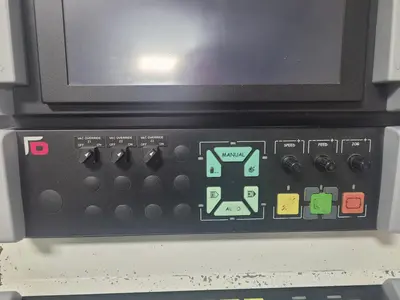

...CNC Control: OSAI Process Controller
...Table Sizes:
......Process 1: 60" x 98"
......Process 2: 60" x 48"
......Combined Table: 60" x 146"
...Fixed Bridge, Moving Gantry Design

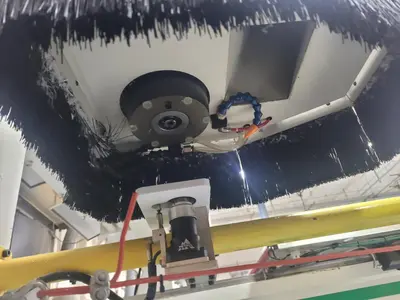

...Dual-Spindle Specifications:
......Speed: 24,000 RPM
......18 HP Motor
......HSK 63F Tool Interface

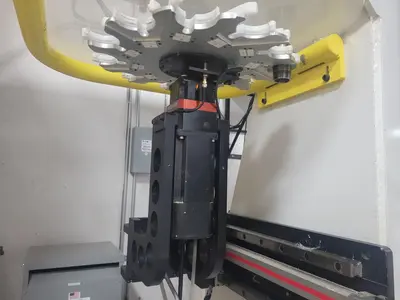

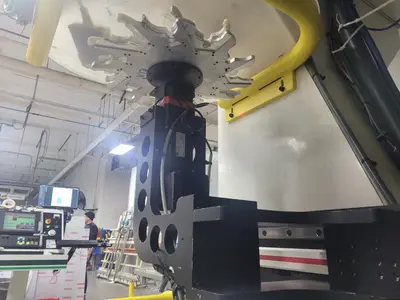

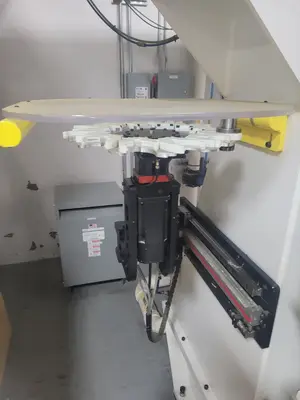

...Tool Carousel: 12 Positions
...Travels:
...Process 1:
......X-Axis: 98"
......Y-Axis: 60"
...Process 2:
......X-Axis: 48"
......Y-Axis: 60"
...Z-Axis/Stroke: 11" - 14"
...Clearance Under Bridge: 14"
...Oil Mist Lubricator

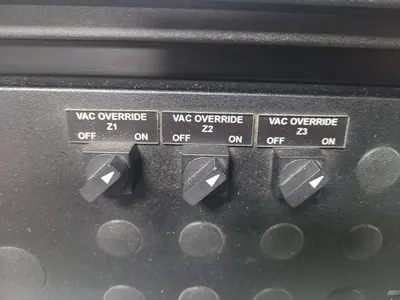

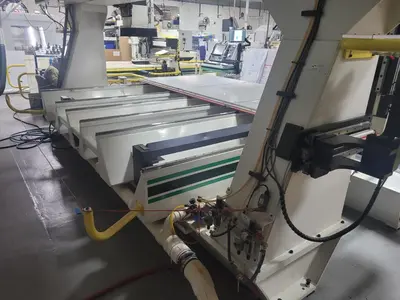

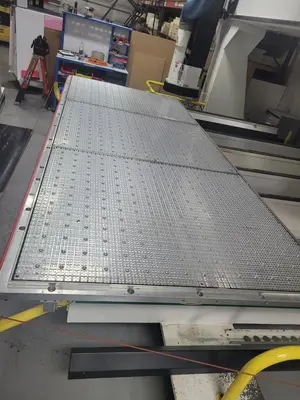

...Aluminum Vacuum Grid Table
...Dust Collection System
...Transformer (see pics)

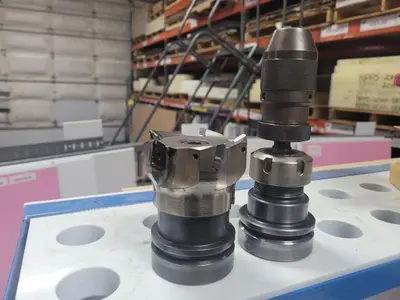

...Toolholders (see pics)

Main Machine Dimensions (approx.): 238" x 150" x 128"

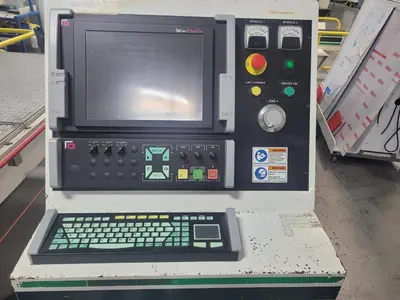

Control Console (approx.): 32" x 30" x 62"
Main Machine Weight (approx.): 20,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functional Notes and History:

The machine in its current state needs about $40,000 worth of repairs to make fully viable and functional. It presently functions but with difficulty. One of the spindles will not home so it is effectively disabled. Onsrud has supplied quotes in February of this year, 2026, to retrofit the machine with needed cards, a new toolchanger motor, three (3) replacement drives, and a new spindle assembly totaling $33K. This does not include any ancillary expenses, hence the $40K budget number.

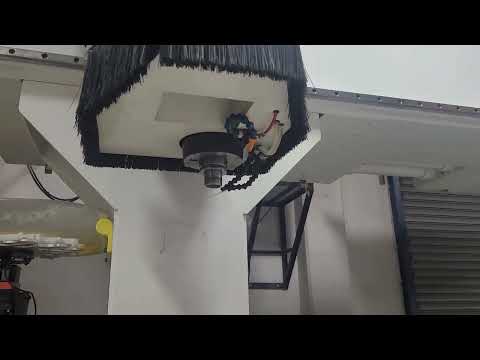

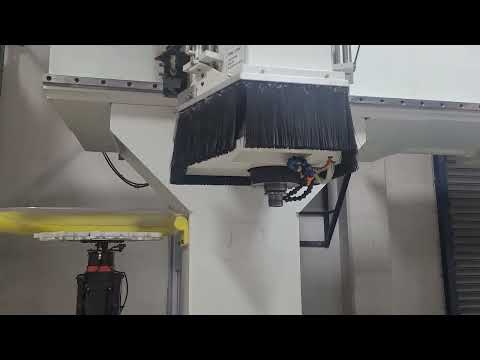

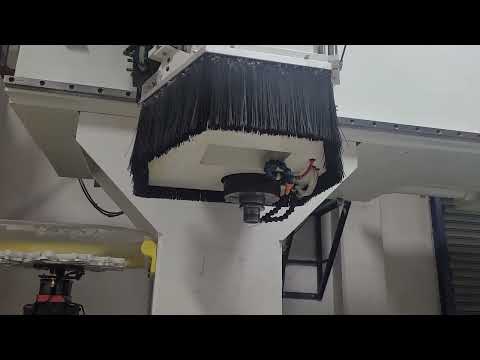

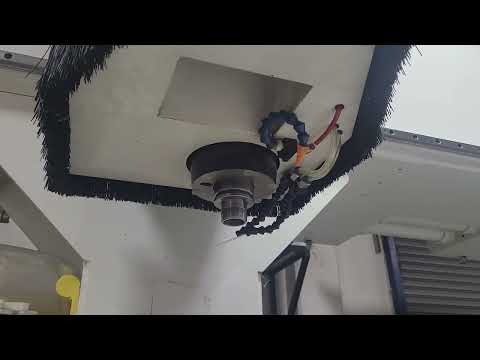

Some videos are attached to this advertisement showing one spindle ramping up to maximum velocity or close to it. The other spindle would not home so no video was taken of its function. There is some general video showing a walk around of the machine.

The Right Side Table, Process 1, has the majority of the hours since new. This is the spindle that needs the most repair. The Left Side Table, Process 2, has hardly any hours since new. This is the spindle depicted in the videos.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Unit is under power; available for inspection.
Buyer responsible for loading fees onto their transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can quote loading and freight.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase.
