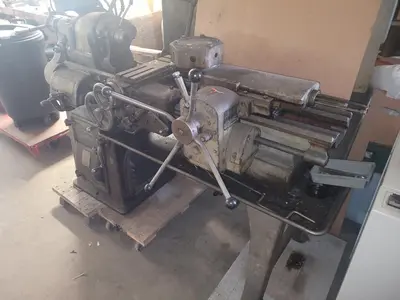

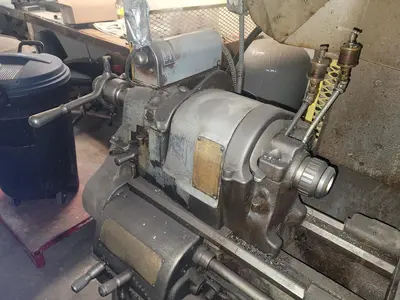

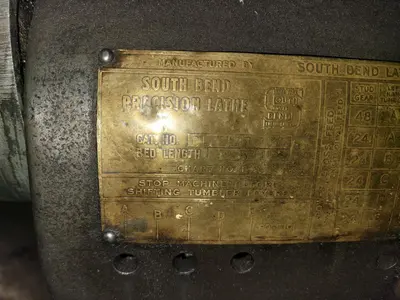

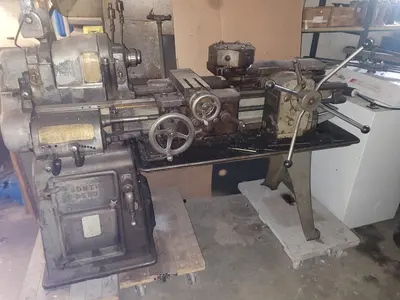

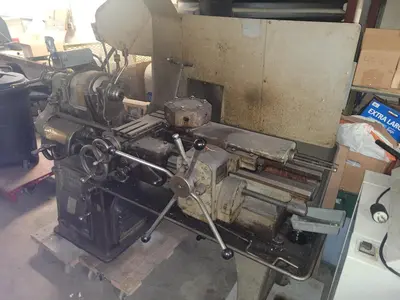

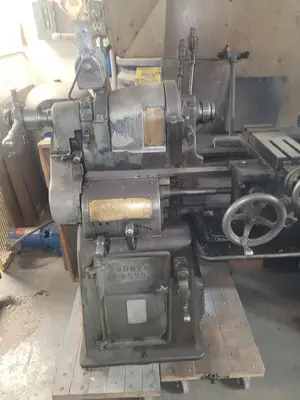

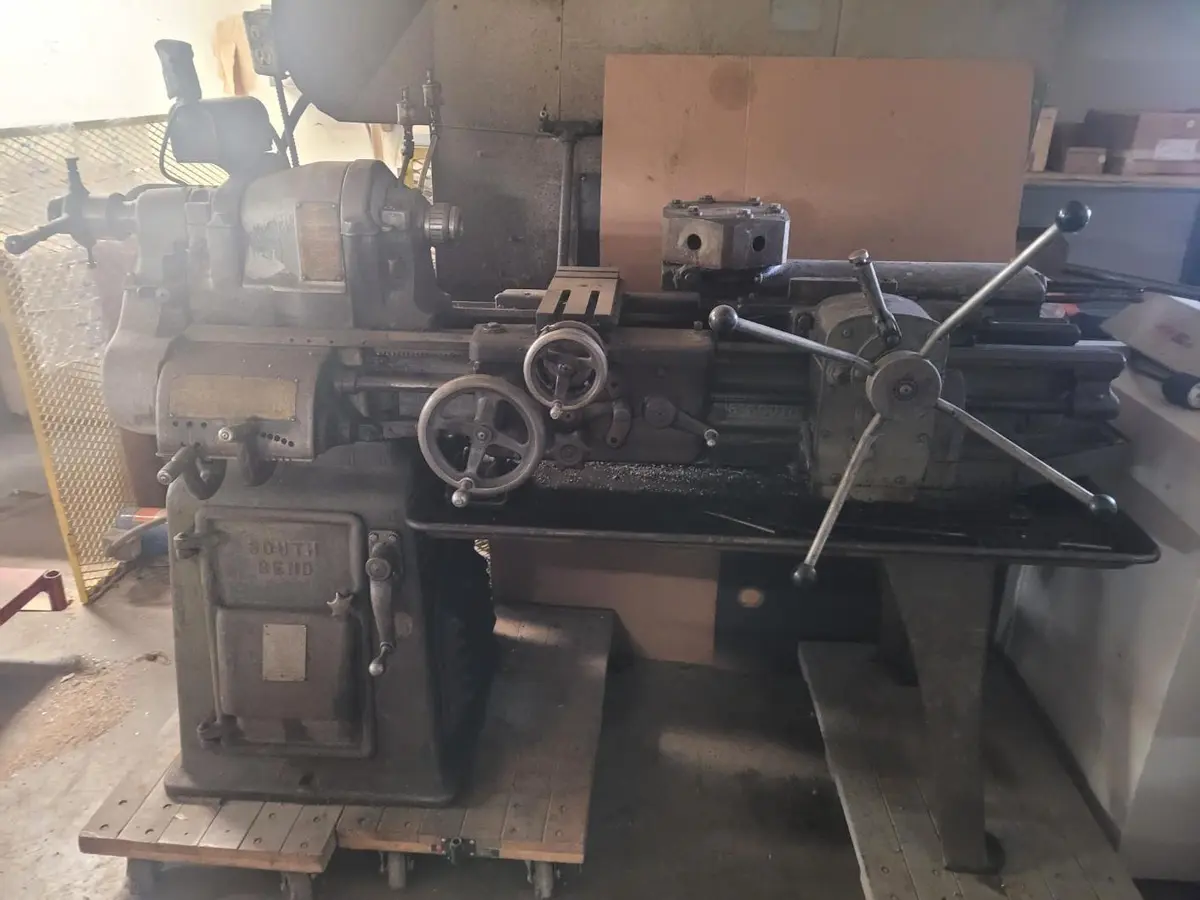

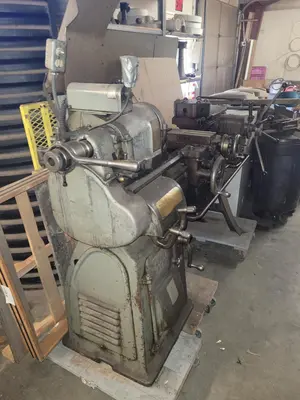

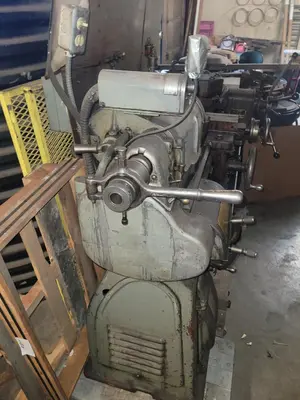

South Bend Precision Lathe

Description

Precision Toolroom Lathe
OEM: South Bend Lathe Works
Date of Manufacture: 1956
Model No.: CL 1BT
Electrics: 230 Volt, 3 Phase, 60 Cycle

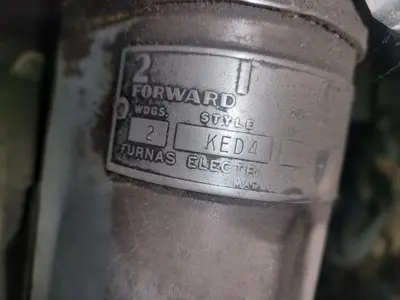

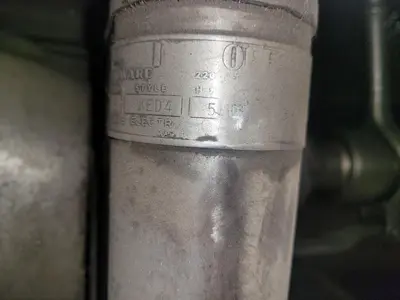

Main Motor: 1.5 HP, Reversing

Features and Specifications:
...Nominal Size: 13"
...Quick Change Gear Box
...Swings:
......Over Bed: 13.25"
......Over Saddle: 8.75"
...Bed Length: 5' (60")
...Between Centers: 40"

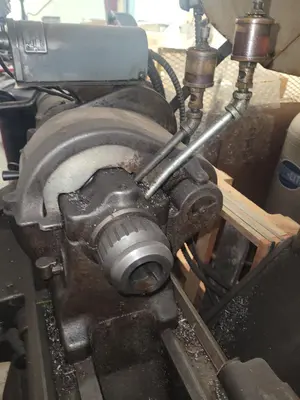

...Spindle Specifications:
......Speeds (8): 40 - 940 RPM
......Spindle Bore: 1-3/8"
......Nose: 1-7/8" x 8 TPI Thread
......Taper: MT#5
...Turret Travel: 4" - 5" on RAM

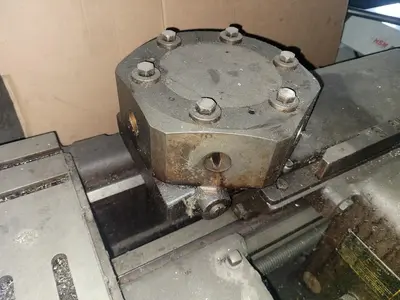

...6-Station Hand-Operated Turret

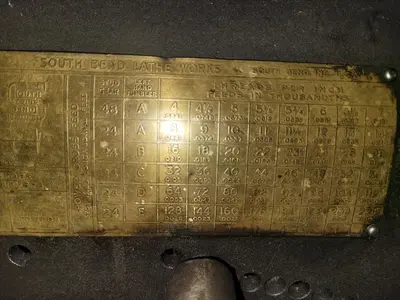

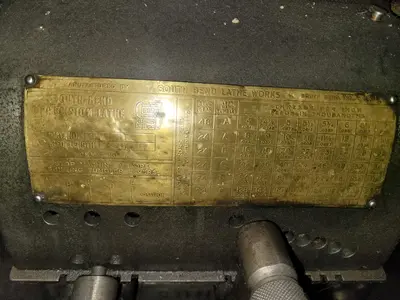

...Threads & Feeds (48):
......Threading Range: 4 - 224 TPI
......Feed Range: .0841 - .0015 IPR
...1-1/16" Collet Capacity
...Collet Closer

Machine Dimensions (approx.): 84" x 36" x 60" Tall
Machine Weight (approx.): 1,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes:

Owner purchased this lathe new in 1956. Has been in the same location since new. Has not used in approximately 3 years. Lathe was always a good runner when in production. Please note that my specifications and features are based on extensive research I did on the internet for this model of South Bend Lathe. It was listed on several sites as having these specifications.

OWNER READY TO MOVE!
AVAILABLE FOR INSPECTION!

EQUIPMENT LOCATION: Seattle, WA Metro Area (Puget Sound Island)

Machine not under power; available for inspection.
Can be put under power for serious inquiry.
Seller can load machine onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase.
