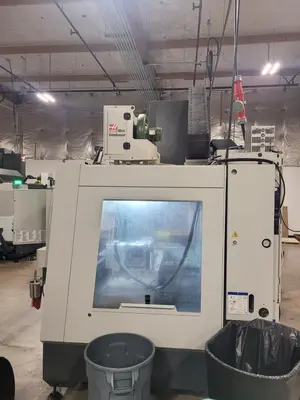

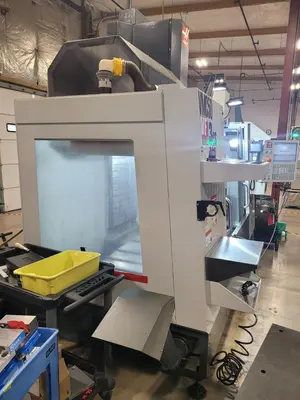

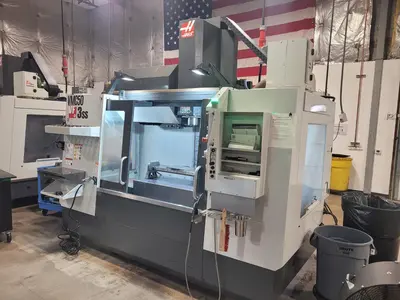

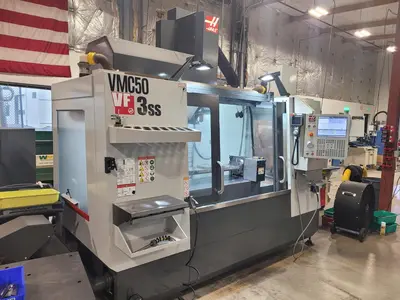

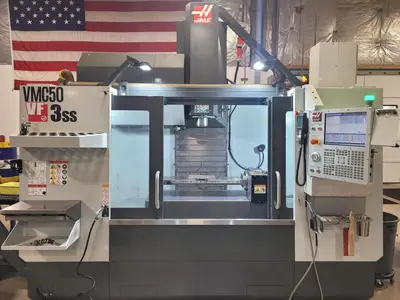

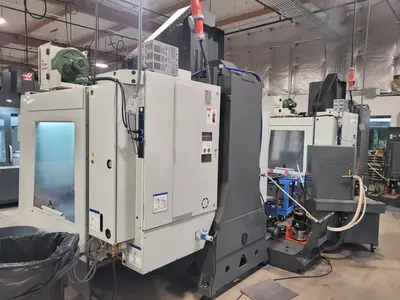

Haas VF-3SS CNC Vertical Machining Center

Description

CNC Vertical Machining Center

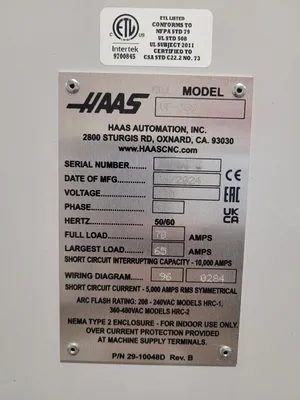

Manufacturer: Haas Automation, Inc. (Oxnard, CA)
Model: VF-3SS
Date of Manufacture: 06/2024
Electrics: 220 Volt, 3 Phase, 50-60 Cycle, 70 FLA
Main Motor: 30HP Vector Drive
Machine Hours:
...Power ON Time: 4,134
...Cycle Start Time: 934
...Feed Cutting Time: 791

Features and Specifications:

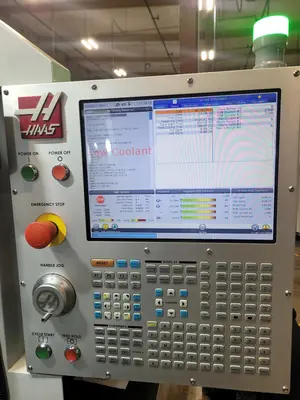

...Haas CNC Control

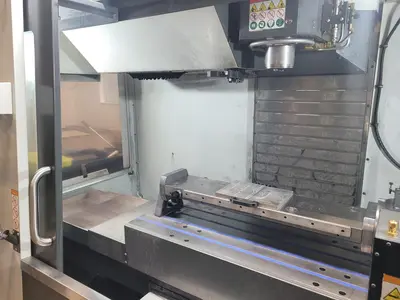

...Table Size: 48” x 18”
...Table Load Capacity: 1,750 lbs.
...Travels:
......X-Axis: 40”
......Y-Axis: 20”
......Z-Axis: 25”
...4th-Axis Wired, Ready to Process

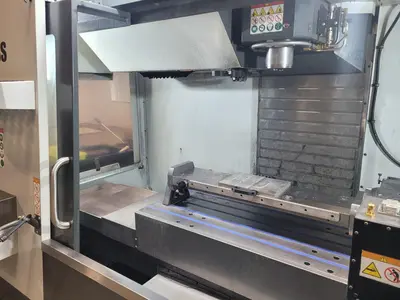

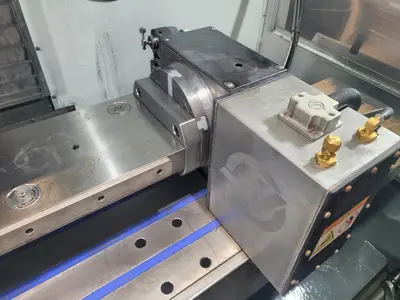

...HRT210 Rotary Table
...Rotary Brake Booster
...Quick-Change Plate/Support for HRT210
...Spindle Speed: 12,000 RPM
...Spindle Taper: CT40

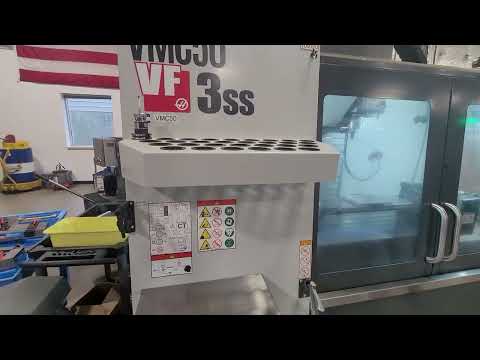

...ATC: 30 + 1 Vertical Orientation
...Feeds:
......Standard Traverse: 833 IPM
......Rapid Traverse: 1400 IPM
...WIPS, Renishaw, Wireless Probing

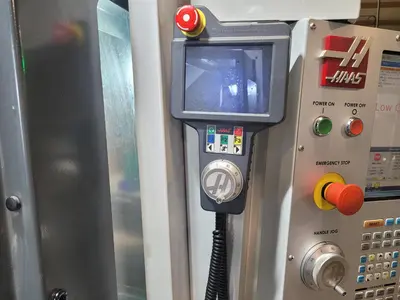

...Remote Jog Handle/Pendant (RJH-TOUCH-XL)
...Programmable Coolant Nozzle (P-COOL)
...Through Tool Air Blast (TAB)
...High Speed Machining (HSM)
...Rigid Tapping
...Coolant Tank
...Variable Flow Coolant Pump
...Chip Auger
...USB Port
...Mist Condenser...Through-Spindle Coolant Capable

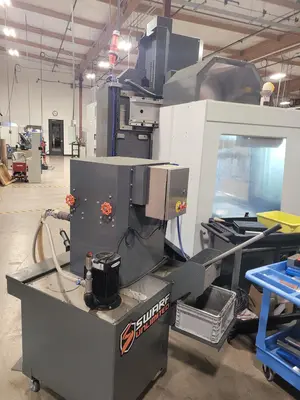

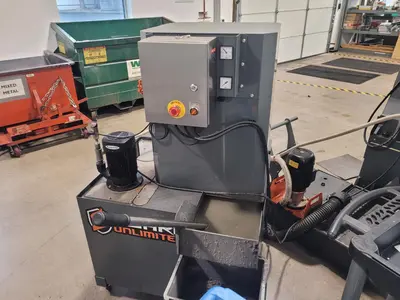

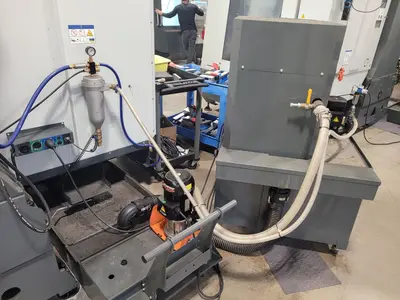

...Swarf Unlimited Management System
......Removable Sludge/Swarf Pots
......Swarf Washdown System
...Manuals/Documentation

Main CNC Dimensions (approx.): 152” x 100” x 120”
Swarf Management System (approx.): 50” x 36” x 60”

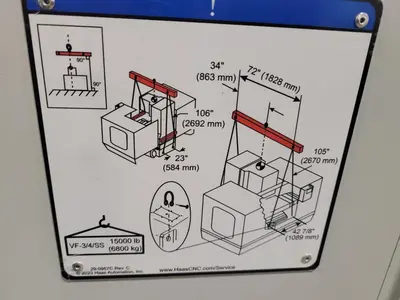

Equipment Weight (approx.): 13,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This equipment was purchased new by the present owner in 2024. System comes complete with 4th-Axis Rotary, Toolholders, Swarf Management System, Wireless Probing, and many other features. The owner has now decided to sell some of these machines. Open to discussing reasoning at time of equipment inspection. Machines are under power and available for full inspection by potential buyers.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is under power; available for inspection.
Buyer responsible for loading equipment onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
