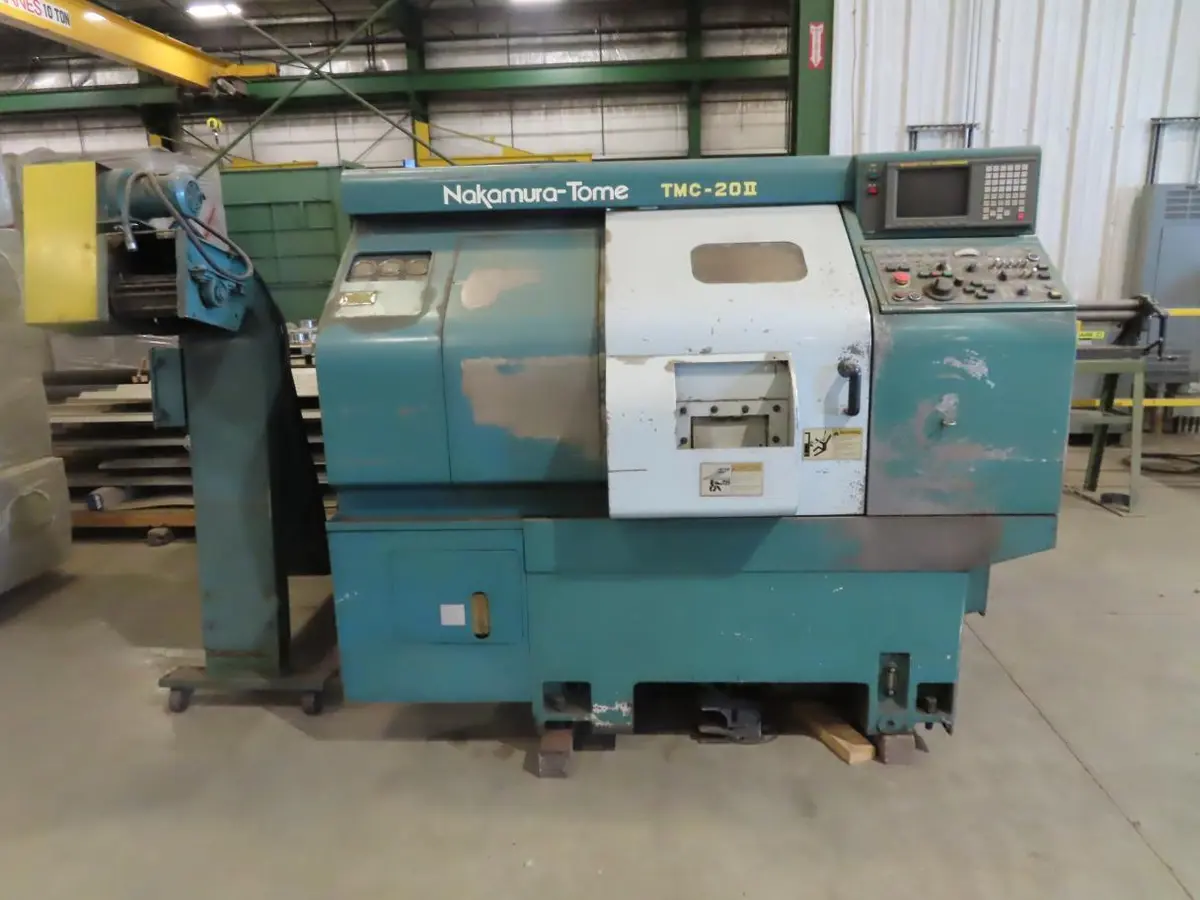

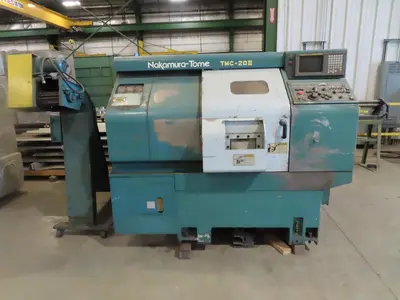

CNC Turning Center

Description

CNC Lathe
Manufacturer: Nakamura-Tome
Model: TMC-20II
Serial No.: M20405
Year: Circa 1993
Electrics: 220 Volts, 3 Phase, 60 Cycle
Main Motor: 15 HP

Features and Specifications:

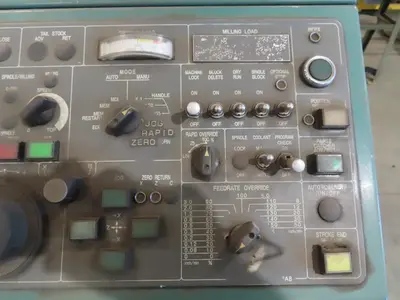

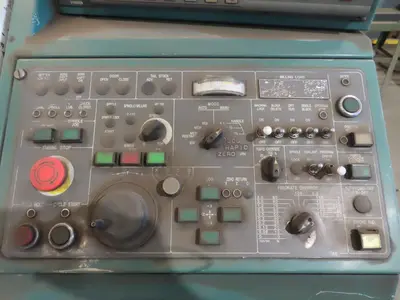

...CNC Controls: Fanuc Series 18-T
...Spindle Speeds: 50 – 4500 RPM
...2-Axis Travels:
......X-Axis: 6.39”
......Z-Axis: 13.38”
...Max. Turning Diameter: 11.02” – 11.8”
...Max. Turning Length: 11.8” – 13.39”
...Swing Over Bed: 15.75”
...Spindle Nose: A2-5
...Spindle Bore: 2.44”
...Chuck Size: 8”
...Rapid Traverse Speeds:
......X-Axis: 629.9 IPM
......Z-Axis: 944.8 IPM

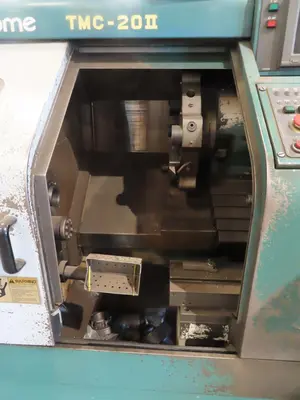

...Turret: 10 Stations
......Indexing Time: 0.2 Sec/Station
...Hydraulic Chucking System & Tailstock
...Coolant System: 23.78 Gallons
...Hydraulic System: 10.57 Gallons
...Slideway/Ballscrew Lube System
...Parts Catcher

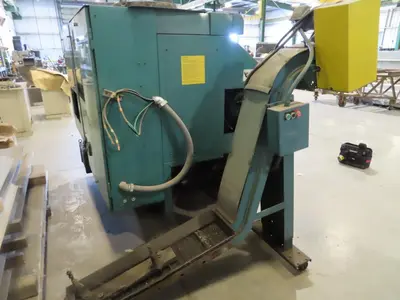

...Scrap Conveyor

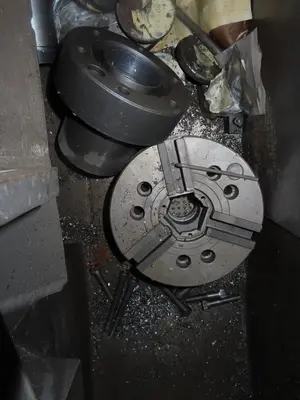

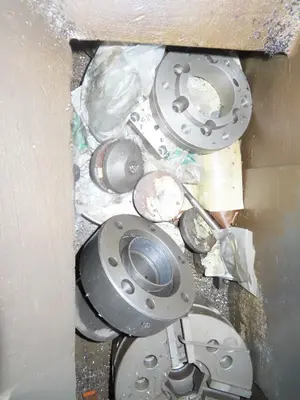

...Miscellaneous Tooling (see pics)

CNC Equipment Dimensions (measured): 80” x 60” x 68”
Overall Equipment Weight (approx.): 6,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner purchased this piece in acquisition of another company. Currently not under power or in production. Owner does not have need of this piece in the production mix. Have no history of this machine per se.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is NOT under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quotation.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
