CNC Tapping & Milling Center

Description

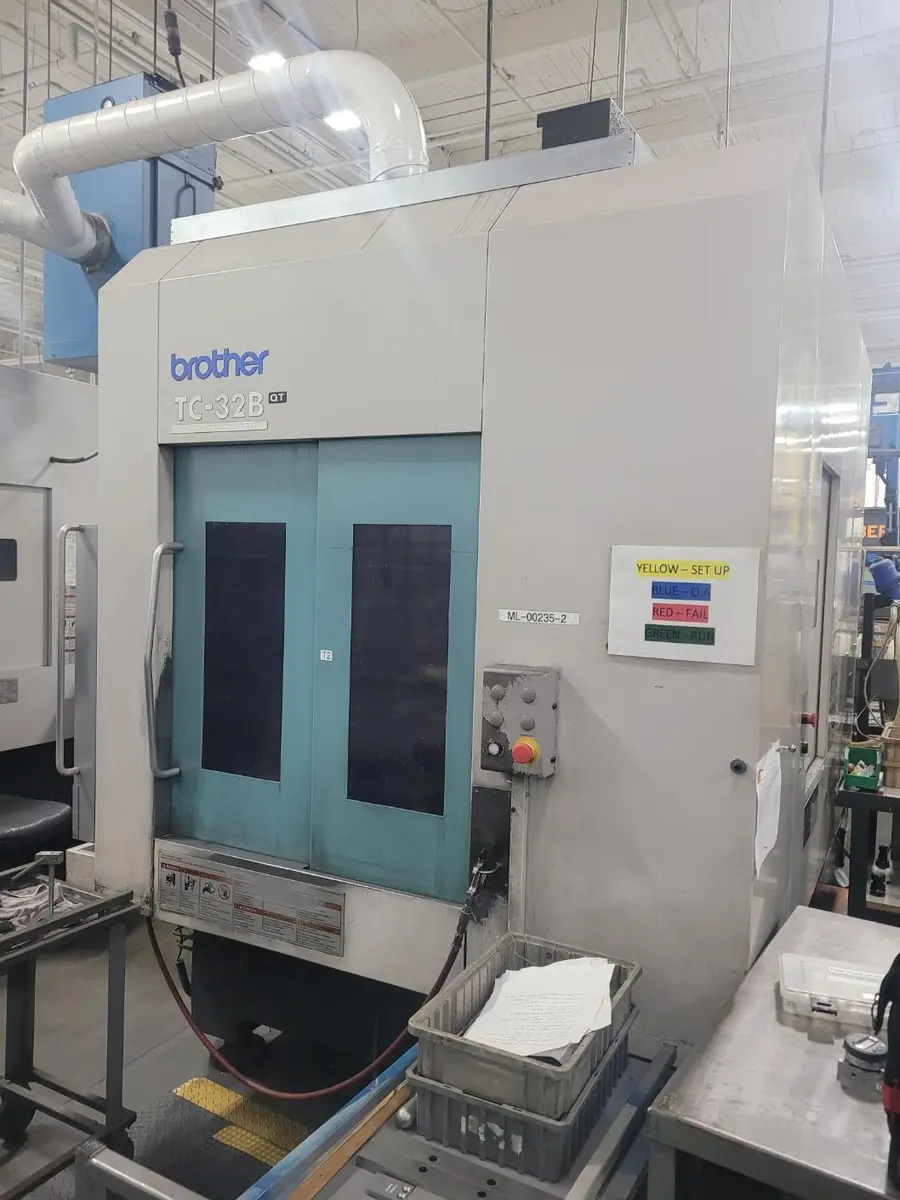

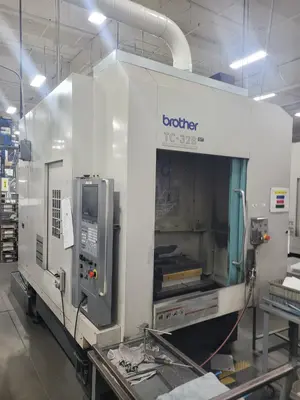

CNC Tapping Center
OEM: Brother Industries Ltd. (Made in Japan)
Model: TC-32B QT
DOM: 06-2006
Electrics: 230 Volt, 3 Phase, 50-60 Cycle, Max. 37 KVA
Spindle Motor: 7.3 kW (10 HP)

Features and Specifications:

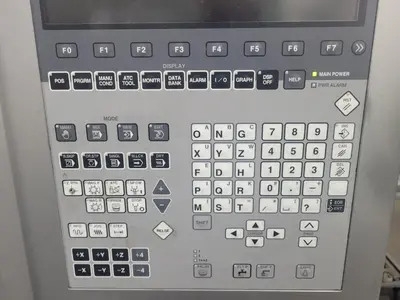

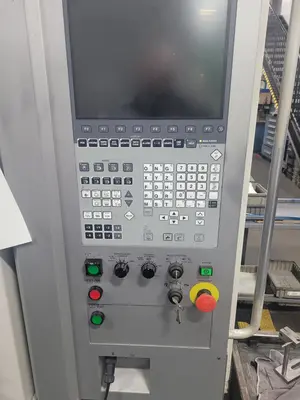

...3-Axis w/ CNC BOO/BO Controls
...2-Pallet Changer
...Spindle Speed: 16,000 RPM
...Travels:
......X-Axis: 21.7”
......Y-Axis: 15.7”
......Z-Axis: 16.3”
...Spindle Taper: BT30

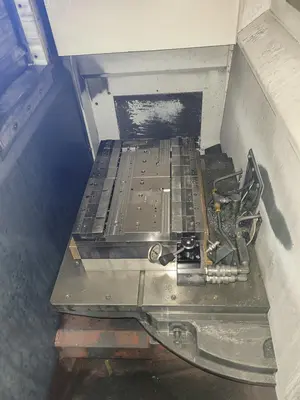

...Pallet Size: 23.6” x 16.7”
...Pallet Load: 441 lbs.
...Rapid Traverse Feedrates:
......X,Y,Z: 2,756 IPM
...Rigid Tapping Speed: 8,000 RPM

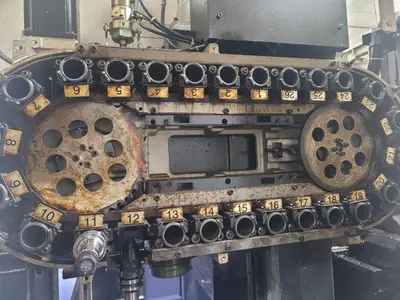

...ATC: 26 Slots
...Quick Table (QT)
......Allows Table Loading while Cutting

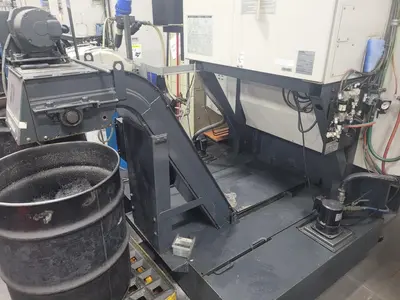

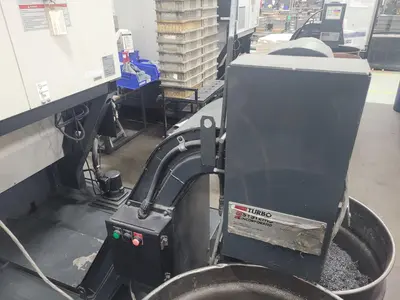

...Turbo Systems Scrap Conveyor
...Manuals

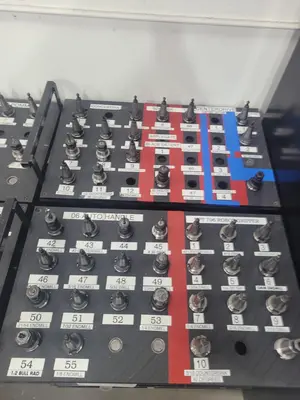

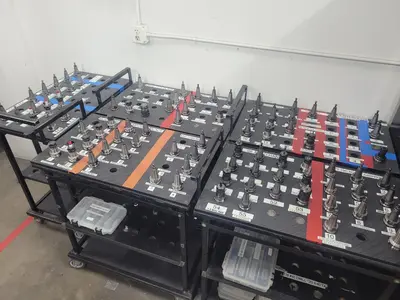

...Tooling

CNC Machine Dimensions (approx.): 75” x 122” x 103” Tall
CNC Machine Weight (approx.): 9,950 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This machine is presently being used in production at a large manufacturing house in Portland, OR. This machine is one of several Brother Tapping Machines in production. The owner is moving to a new building next year, requiring some shedding of extra capacity. This machine is a 1st-owner unit taken care of with a regular PM; have attached PM schedule for review.

The buyer is responsible for rigging out of building and loading on transportation. I can obtain rigging and loading quote and a shipping quote if desired.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is under power; available for inspection.
Buyer responsible for loading equipment onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
