5-Ton Punch Press

Description

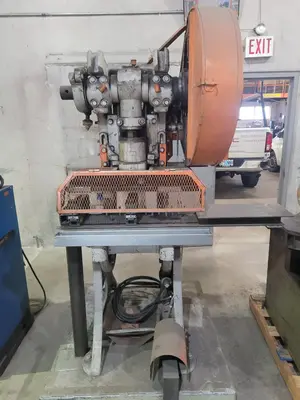

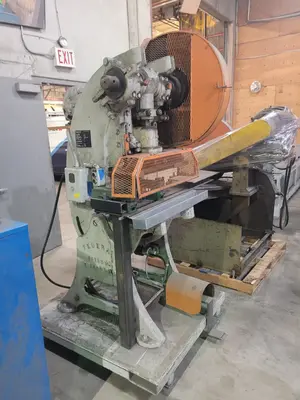

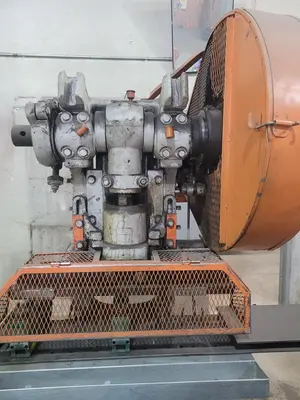

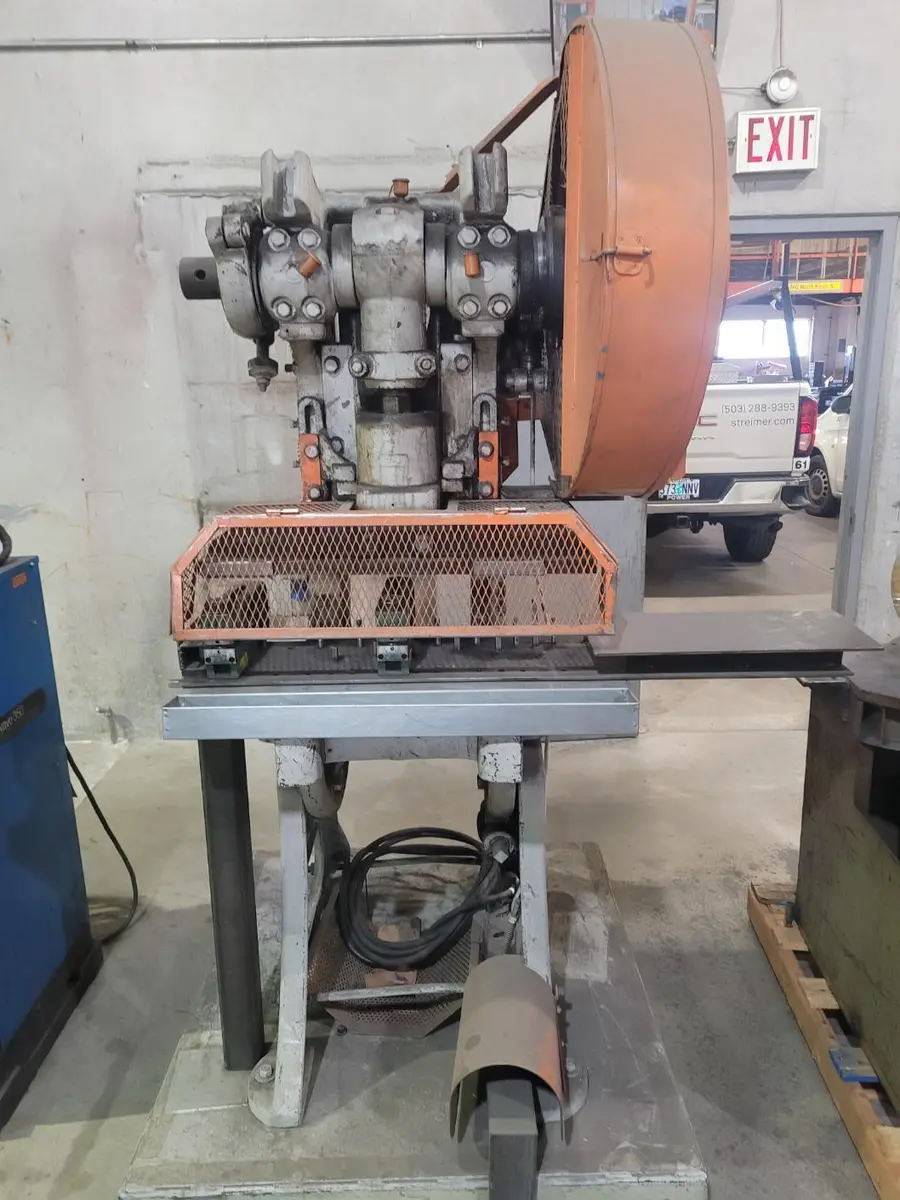

OBI Punch Press
Make: Federal Press Company (Elkhart, IN)
Serial No.: ST2541
Model No.: 3
Year of Manufacture: 1967
Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 6.5-3.25 Amps
Motor: 2 HP, 1150 RPM

Specifications and Features:
...Capacities:
......Tonnage: 5-Ton
...Stroke: 1" - 2" Adjustable
...Shut Height: 6" - 8" Adjustable
...Foot Pedal

Dimensions (approx.): 30" x 30" x 55”
Weight (approx.): 2,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Owner is moving out of building; liquidating older equipment they no longer use in their process. Equipment is all good running units. Seller can load these pieces. Equipment is NOT under power; can inspect in current state sitting on shop floor.

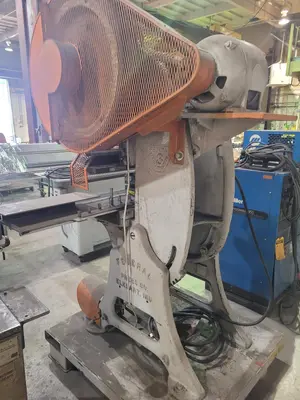

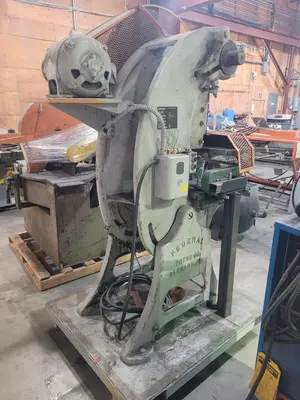

This press has conflicting specifications listed on attached data plate. It says 5-Ton and Model 3; however, a Model 3 of this company and vintage is actually a 32-Ton OBI Press. The dimensions are roughly the same and the weight is around 2,000 lbs. more. The specs for a Model 3, 32-Ton machine are 2.5" Stroke, 7.25" Throat Depth, and a speed of 125 SPM. The model number "3" is also stamped into the machine's frame casting.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer is responsible for freight logistics and expenses.
MD Equipment Services can supply freight quotes and delivery.
Delivery fee depends on time and distance.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
