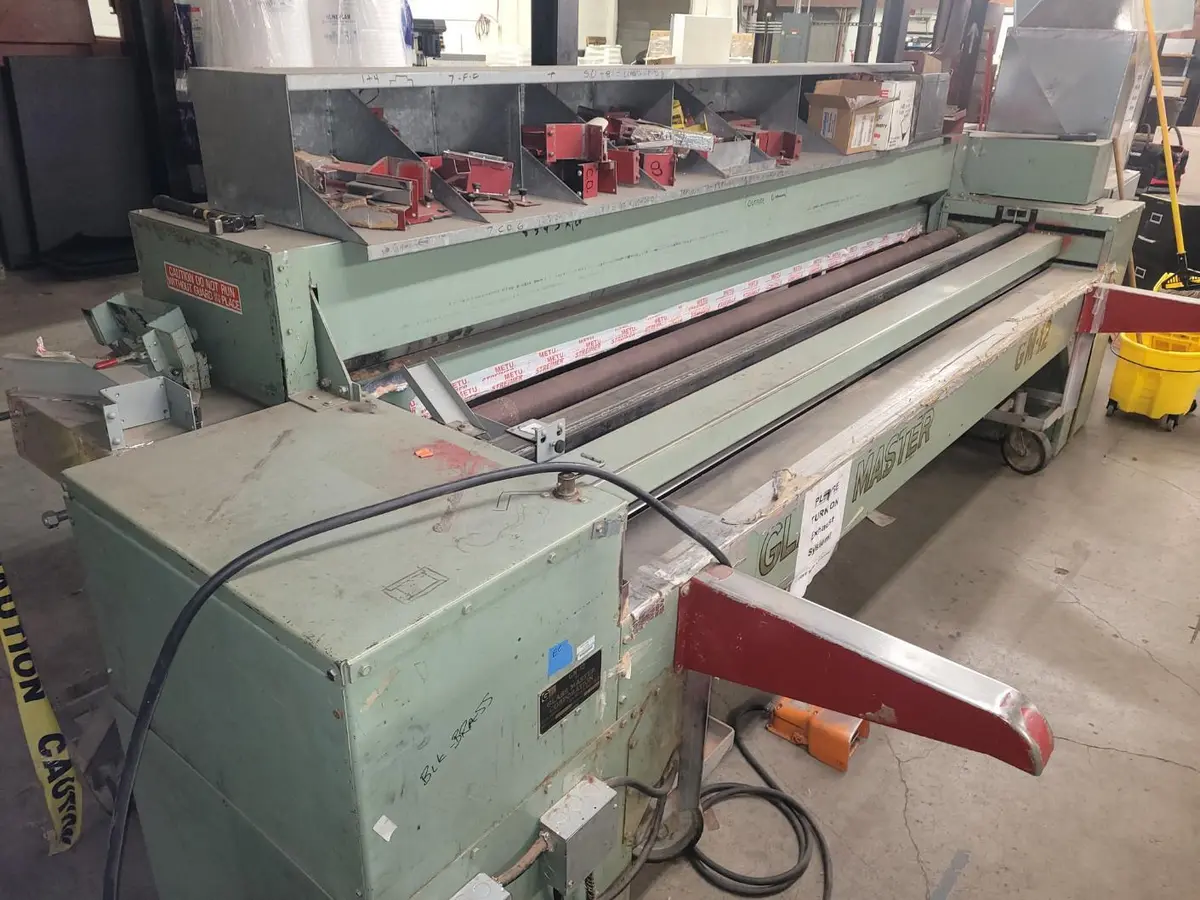

Automated Fiberglass Duct Board Notching and Coping Machine

Description

Automated Grooving Machine
Usage: High-Volume HVAC Fabrication for Fiberglass Ducting
Manufacturer: Glass Master Corporation (San Antonio, TX)
Model: Master E-215 Groov-Master
Serial No.: 115
Electrics: 120 Volt, 1 Phase, 60 Cycle, 15 Amp

Features and Specifications:
...Capacity:
......5/8" - 2" Thick Duct Board
...Speed: 4' Section in 8 Seconds
...Quick-Release Clamps
...Foot Pedal
...Miscellaneous Tooling (see pics)

Dimensions (approx.): 130" x 31" x 47"
Weight (approx.): 1,200 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

I could not find the model GM-12 but did find information for Glass Master Model E-215 Groov-Master that used the GM-12 blades. The dimensions and fabricated pieces described were approximate to what I inspected on the owner's shop floor. This machine fabricates square, rectangular, and round duct sections of fiberglass duct board. This machine readily adapts to machine 1", 1.5", and 2" thick insulation boards. Utilizes a heavy-duty electric motor managed via a foot-actuated pedal.

Owner is moving out of building; liquidating older equipment they no longer use in their process. Current owner maintains equipment is in good running order. Seller can load these pieces. Equipment is NOT under power; can inspect in current state on shop floor.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer is responsible for freight logistics and expenses.
MD Equipment Services can supply freight quotes.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase.
