Dynamometer Testing System

Description

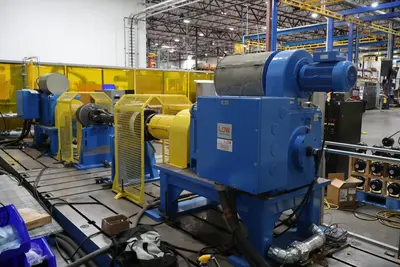

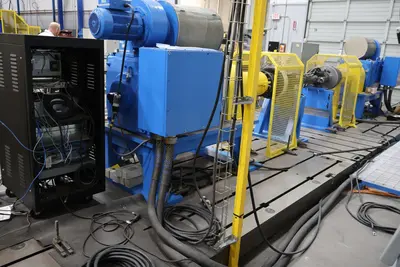

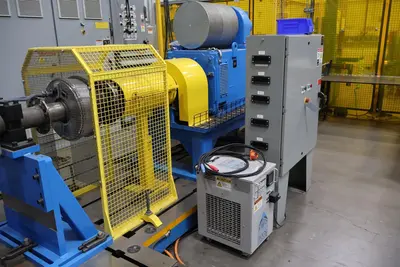

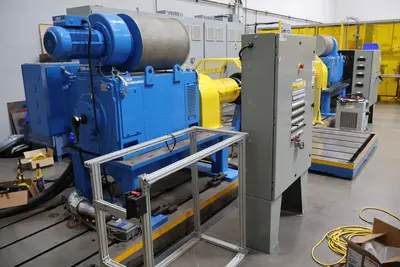

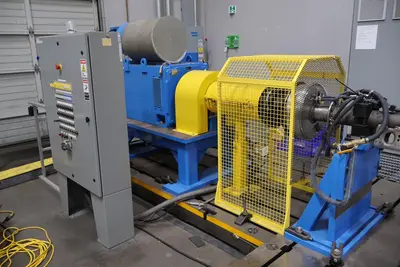

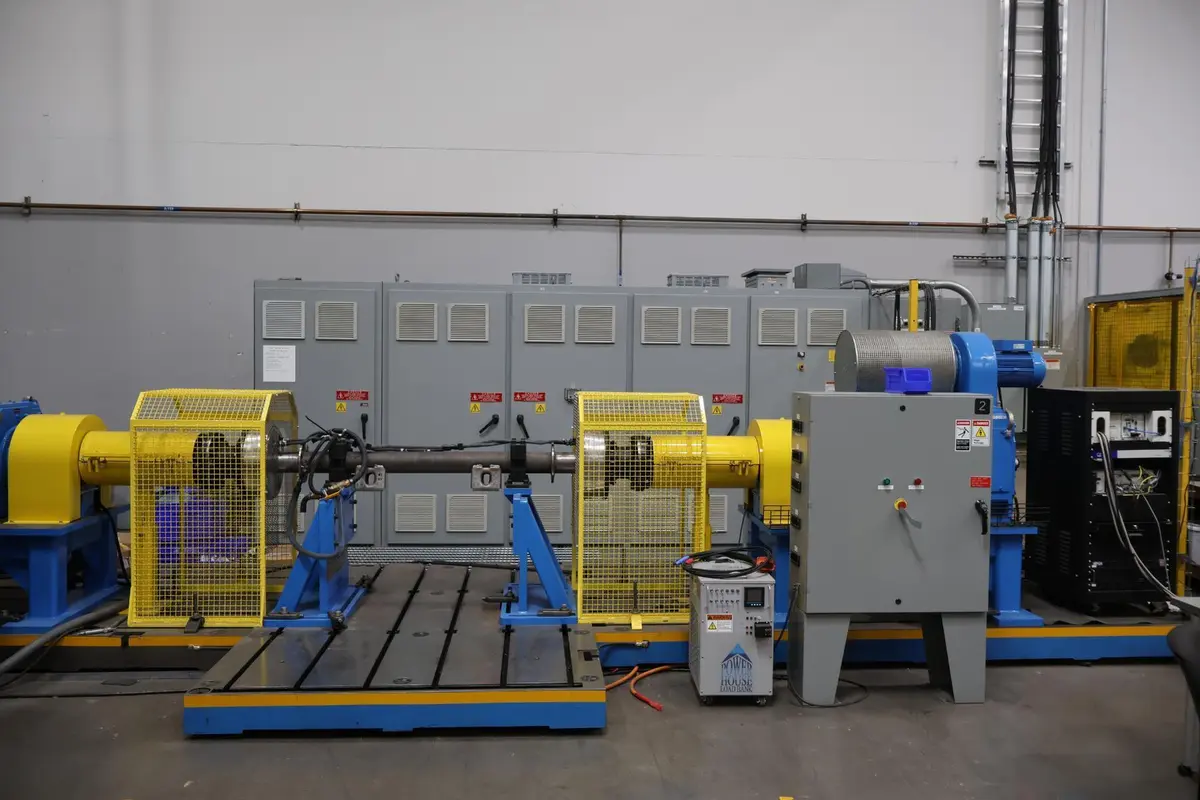

Dynamometer Test System

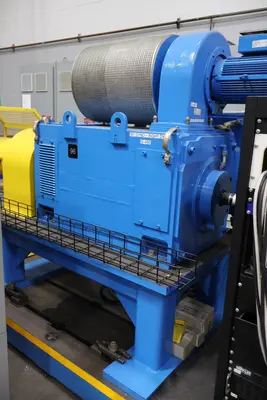

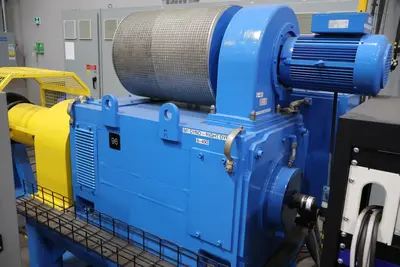

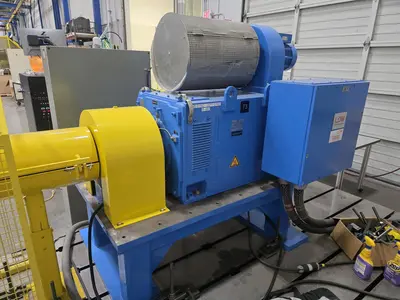

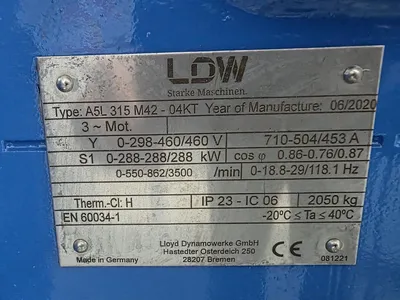

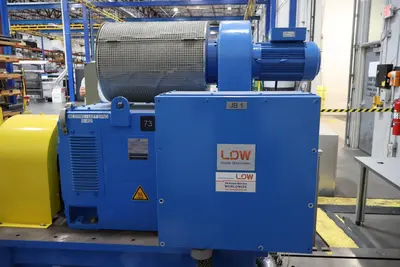

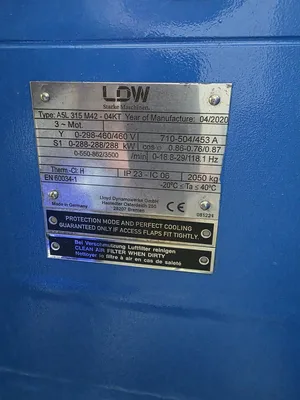

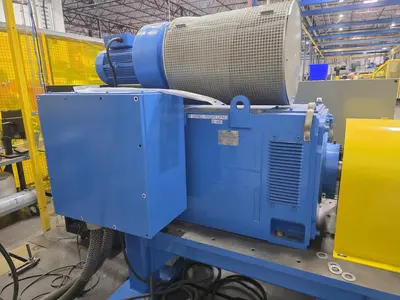

Output Dynamometers (2)
288 kW Continuous Operation from 550 – 3,500 RPM
Induction Type
5009 Nm Torque up to 550 RPM
Foot Mounted
120% Overload for 60 Seconds
Single-End Shaft
Encoder
DC – DC Inverter Battery Simulator (1)
1,000 VDC
1,000 A Continuous Operation up to 465 VDC
E27 Control Module w/ Ethernet Communications
Reverse-Voltage Protection Diode
120% Overload for 60 Seconds
IGBT Power Section
Common-Mode Filter Capacitors
Voltage Feedback Module
Voltage-Current Control Accuracy
Isolation Monitoring
Ripple Spec: 0.1% FS Current Ripple / 0.1% FS Voltage Ripple

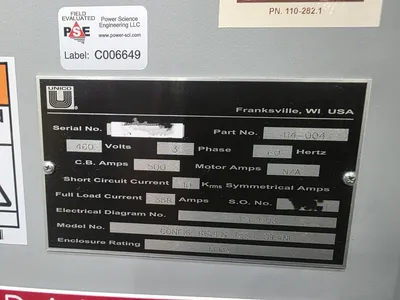

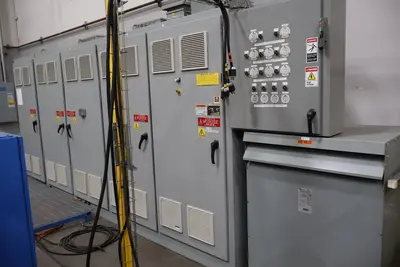

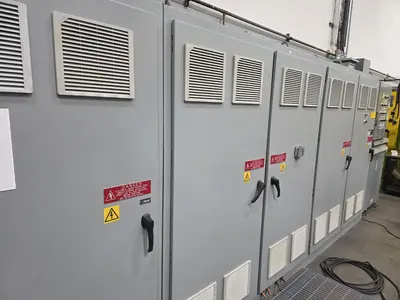

Power Enclosure and Vector Control Package (1)
6-Door Upright Air Cooled Enclosure
500 Amp Disconnect
Cabinet Vents and Cooling Fans
Intercabling Terminals and Wireway for Power Enclosure
Control Fuses, Fuse Holders, and Motor Starters
Unico 2400 Regenerative Charging Unit
Unico 2400 Output Vector Servo Controllers
DC/DC Inverter
Drive Isolation Transformer (1)
RE Pro System (REPS) Overview
The Revolutionary Engineering Pro System is configurable and easy to use test cell automation system.
Has a Graphical User Interface that runs on a Windows PC.

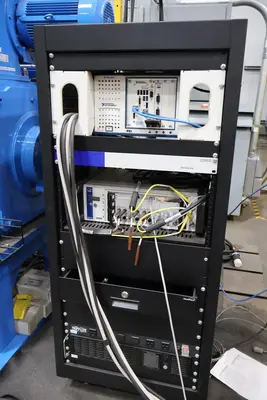

Main processing is performed on a NI real-time PXI Controller.
Utilizes a Quad-Core PXI Controller and the LabVIEW real-time operating system.

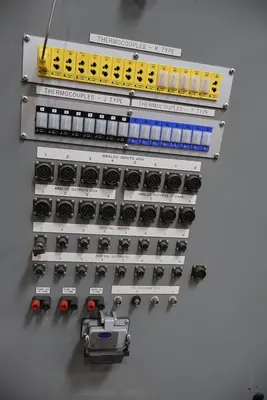

Operator Interfaces (2)

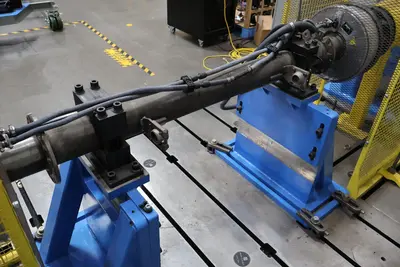

Output Bases (2)

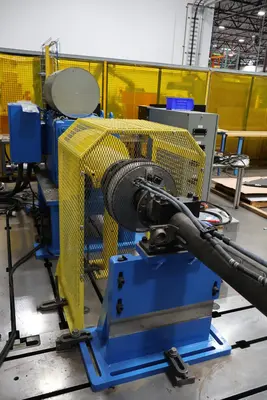

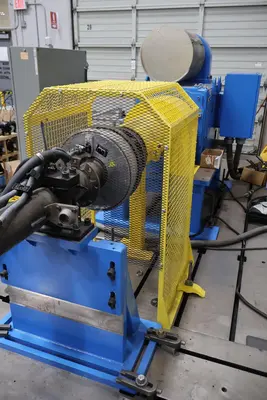

Guarding System (2)
5,000 Nm Torque Systems (2)

Overall Dimensions:
…Bedplate System:
……End Sections: 12’ x 6’ Each
……Input (Center) Section: 6’ x 9’
…Electrical Panels (approx.): 250” Long x 90” Tall x 36” Deep
Equipment Weight (approx.): 30,000 lbs.
